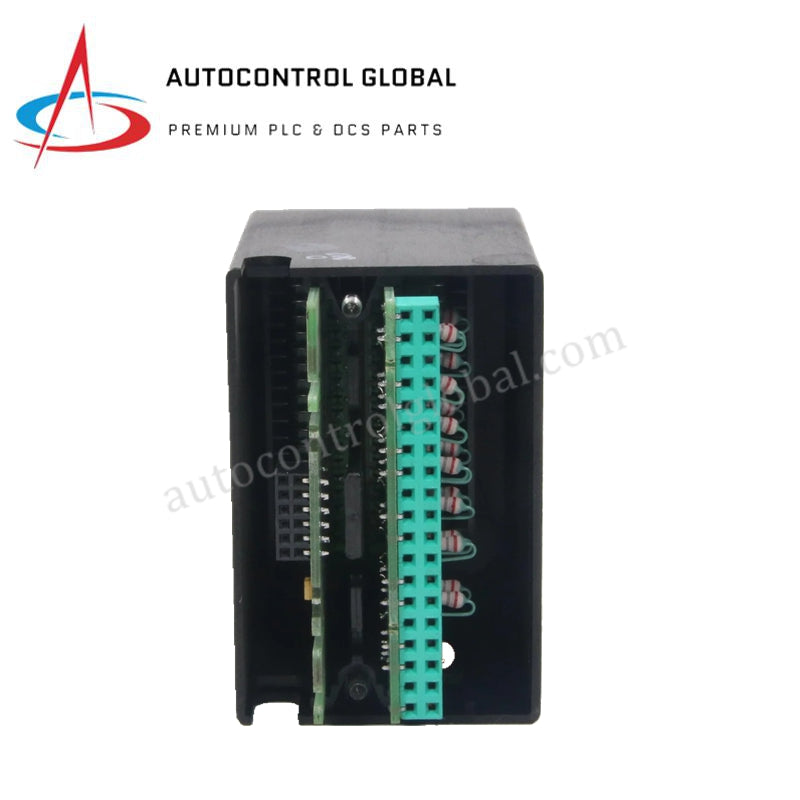

16-Channel Discrete Output Module | GE Fanuc IC670MDL740J
Manufacturer: GE Fanuc
-
Part Number: IC670MDL740J
Condition：New with Original Package
Product Type: Discrete Output Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The IC670MDL740J (Model: IC670MDL740J) is a high-density discrete output module belonging to the GE Fanuc Field Control series. This module provides 16 isolated digital outputs designed to interface with 24 VDC field loads such as motor starters, solenoids, and indicators. Engineered for high-reliability industrial environments, the IC670MDL740J features a broad operating voltage range of 9.2 to 29.5 VDC, ensuring stable performance despite fluctuations in the secondary power supply.
As a core component of distributed I/O systems, the IC670MDL740J (Part Number: IC670MDL740J) incorporates advanced protection mechanisms, including built-in group fusing to safeguard internal circuitry from overcurrent conditions. The module maintains high galvanic isolation—up to 1500 VAC between user input and logic—to protect the Bus Interface Unit (BIU) and central processing hardware from electrical transients on the field side. This technical robustness, combined with a low 0.5V maximum voltage drop, makes it an authoritative choice for engineers requiring precise and safe output control in automated manufacturing and process control logic.
Technical Specifications
| Category | Details |
| Manufacturer | GE Fanuc / GE Automation |
| Model Number | IC670MDL740J |
| Module Type | Discrete Output (Sourcing) |
| Number of Channels | 16 Outputs (1 Group) |
| Nominal Input Voltage | 24 VDC |
| User Input Voltage Range | 10 to 30 VDC |
| Output Voltage Range | 9.2 to 29.5 VDC |
| Output Current | 0.5 A per point (4 A maximum per module) |
| Response Time | 200 ms (at 0.5 A resistive load) |
| Output Leakage Current | 0.5 mA at 30 VDC (maximum) |
| Voltage Drop | 0.5 V maximum |
| Logic Power Consumption | 111 mA (maximum from BIU) |
| Isolation | 1500 VAC (Input to Logic); 250 VAC (Input to Frame Ground) |
| Protection | Built-in fuse for group protection |
