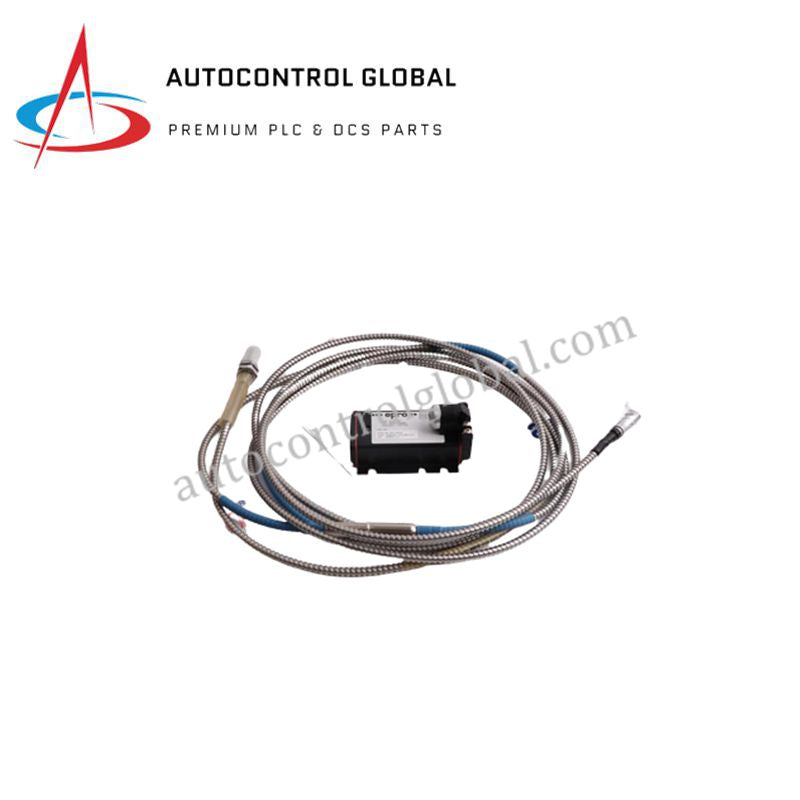

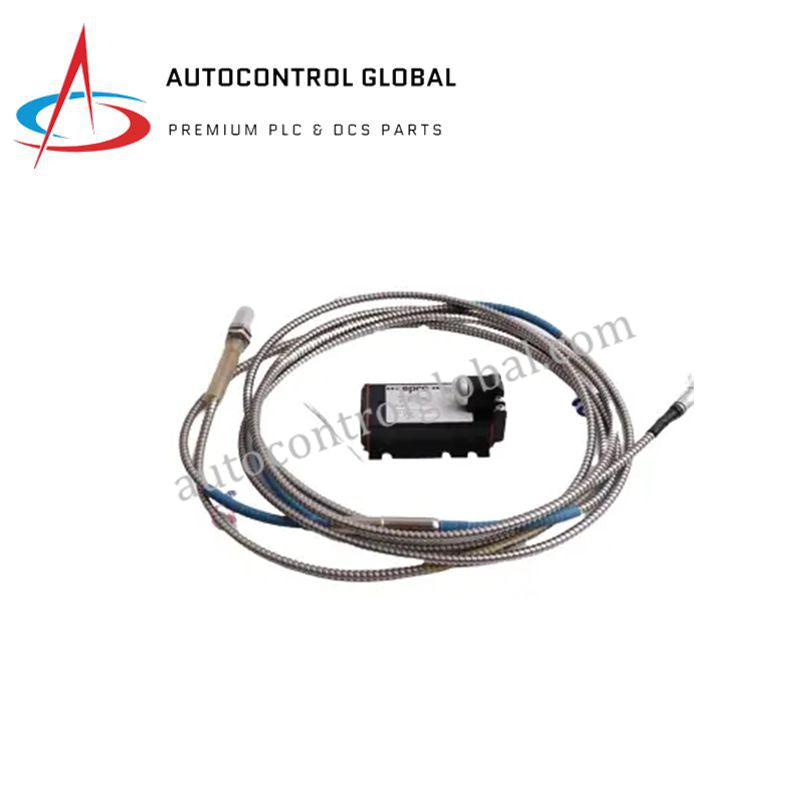

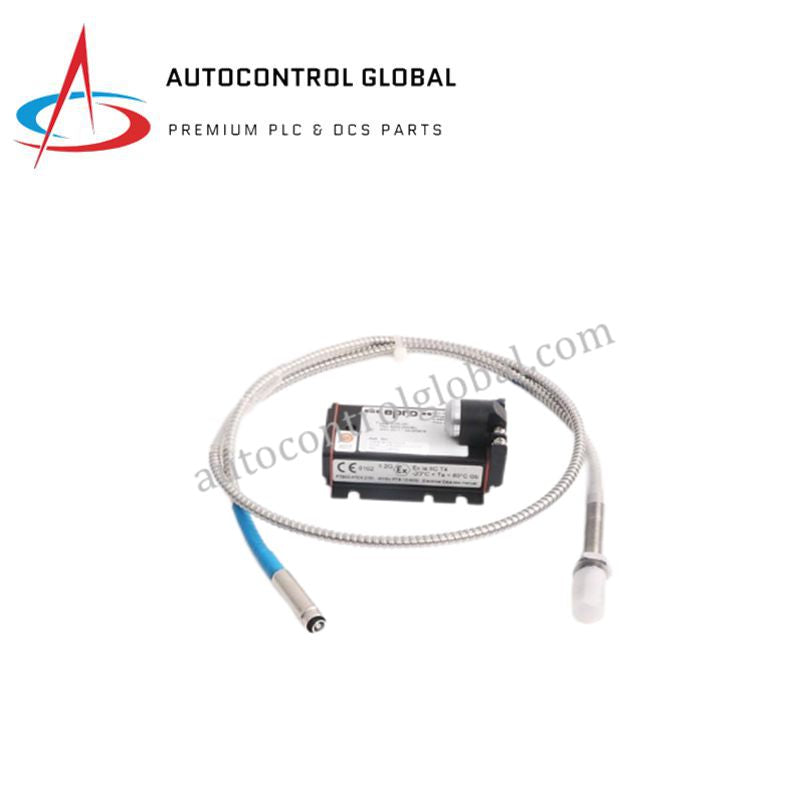

16 mm EPRO PR6424/01CS Eddy Current Sensor for Rotating Machinery
Manufacturer: Epro
-
Part Number: PR6424/01CS
Condition：New with Original Package
Product Type: Eddy Current Sensor for Rotating Machinery
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
EPRO PR6424/01CS – 16 mm Eddy Current Displacement Sensor
Product Overview
The EPRO PR6424/01CS is a high-precision, non-contact eddy current displacement sensor designed for critical rotating machinery. It accurately measures radial shaft vibration, axial displacement, and rotational speed, providing real-time data for machinery protection and predictive maintenance.
This sensor is commonly paired with a CON021 or CON041 converter, forming a complete API 670-compliant vibration monitoring system. Its compact 16 mm tip diameter allows installation in space-constrained environments while ensuring reliable performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | PR6424/01CS |
| Sensor Type | Eddy current displacement sensor |
| Sensor Tip Diameter | 16 mm |
| Sensitivity | 4 V/mm (101.6 mV/mil) ±1.5% |
| Static Range | ±2.0 mm (0.079") |
| Dynamic Range | 0 to 1,000 µm (0 to 0.039") |
| Nominal Air Gap | 2.7 mm (0.11") |
| Operating Temperature | 35 °C to +150 °C |
| Shock Resistance | Up to 40g |
| Housing Material | Stainless steel |
| Sensor Tip Material | PEEK |
| Weight | 200 g (7.05 oz) |
| Environmental Rating | IP67 |
| Certifications | CE, ATEX, IECEx, CSA |
| Origin | Germany |
| Payment | T/T |
| Shipping Port | Xiamen |
FAQ
1. What is the maximum displacement the sensor can measure?
The PR6424/01CS supports a static range of ±2.0 mm and a dynamic range up to 1,000 µm.
2. Can it operate in harsh industrial environments?
Yes, it has IP67 protection and resists dust, moisture, and vibration.
3. What is the recommended converter for this sensor?
It is compatible with CON021 and CON041 converters for API 670-compliant systems.
4. How resistant is the sensor to mechanical shock?
It withstands shocks up to 40g, suitable for high-vibration applications.
5. Is it certified for hazardous areas?
Yes, it meets CE, ATEX, IECEx, and CSA standards.
