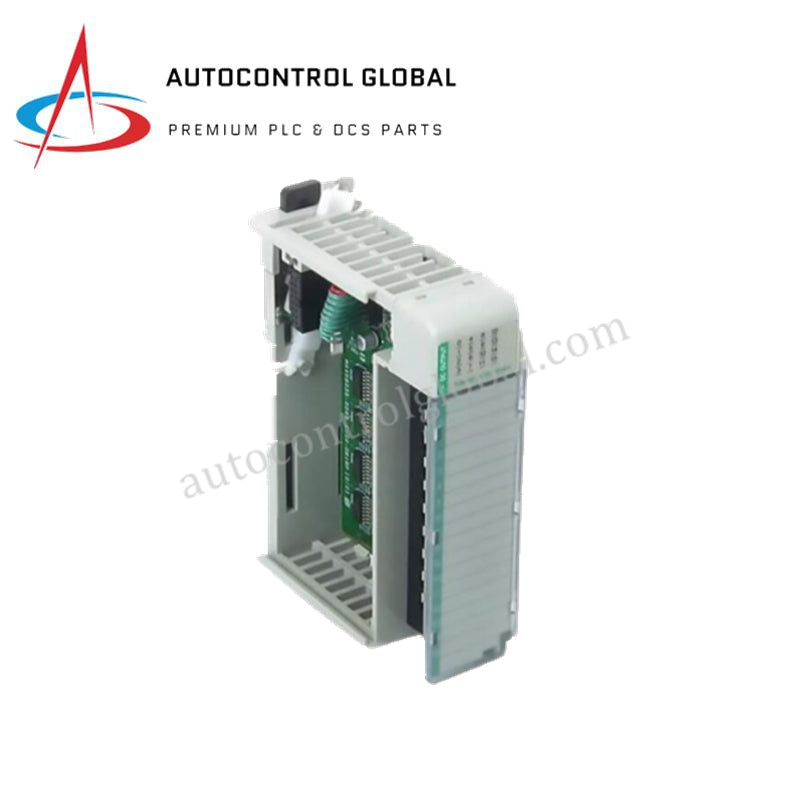

16-Point 1.0A Digital Output Card | Allen-Bradley 1769-OB16P
Manufacturer: Allen-Bradley
-
Part Number: 1769-OB16P
Condition：New with Original Package
Product Type: Digital Output Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The 1769-OB16P is a high-performance digital output module designed for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It features 16 sourcing (positive logic) DC outputs, specifically engineered with integrated electronic protection. The "P" in the model number signifies its robust protection capabilities, which safeguard the module against overcurrent and short-circuit conditions. This makes the 1769-OB16P an authoritative choice for industrial environments where field wiring faults could otherwise lead to costly hardware damage or extensive system downtime. It provides a reliable interface for controlling 24V DC solenoids, actuators, and indicators with high-speed transistor switching.
Detailed Technical Specifications
| Attribute | Details |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 1769-OB16P |
| Module Type | DC Sourcing Digital Output Module (Protected) |
| Number of Outputs | 16 Channels (1 group of 16) |
| Operating Voltage Range | 20.4V to 26.4V DC |
| Output Type | Transistor (Source) |
| Continuous Current per Point | 1.0 A @ 60 °C (0.5 A @ 30 °C for specific thermal profiles) |
| Continuous Current per Module | 8.0 A max @ 60 °C |
| Surge Current | 2.0 A for 10 ms (repeatable every 1 second) |
| Electronic Protection | Integrated Short-Circuit and Overload protection |
| Output Delay (On/Off) | 1.0 ms / 2.0 ms |
| Backplane Current (5.1V) | 160 mA |
| Power Supply Distance Rating | 8 Modules |
| Off-State Leakage Current | 1.0 mA @ 26.4V DC |
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Isolation Voltage | 75V (continuous), 1200V AC dielectric protection |
