Bently Nevada 3500/61-05-01 RTD and Thermocouple Interface

Product Overview

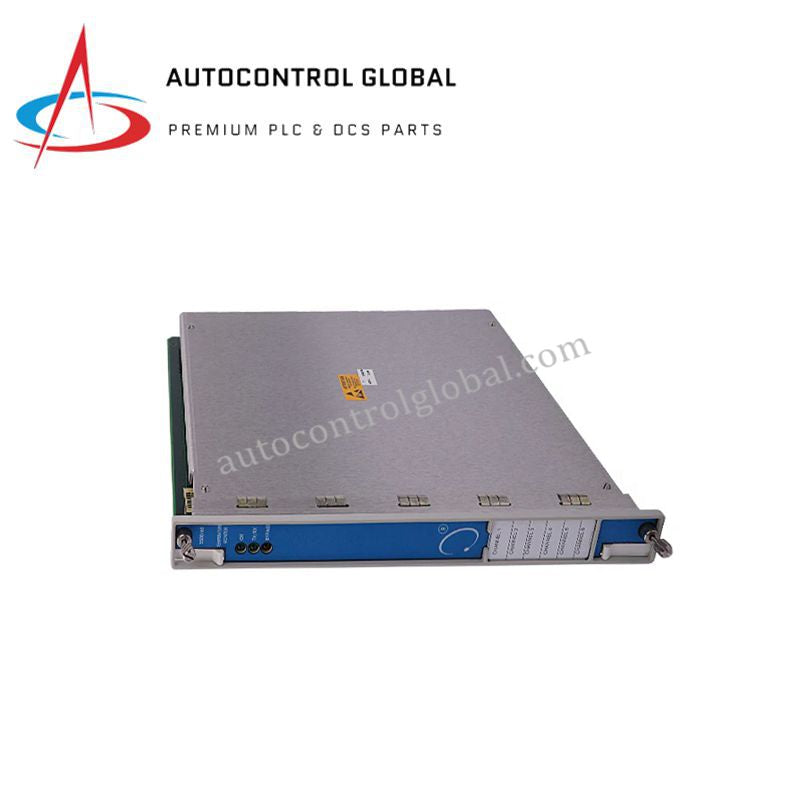

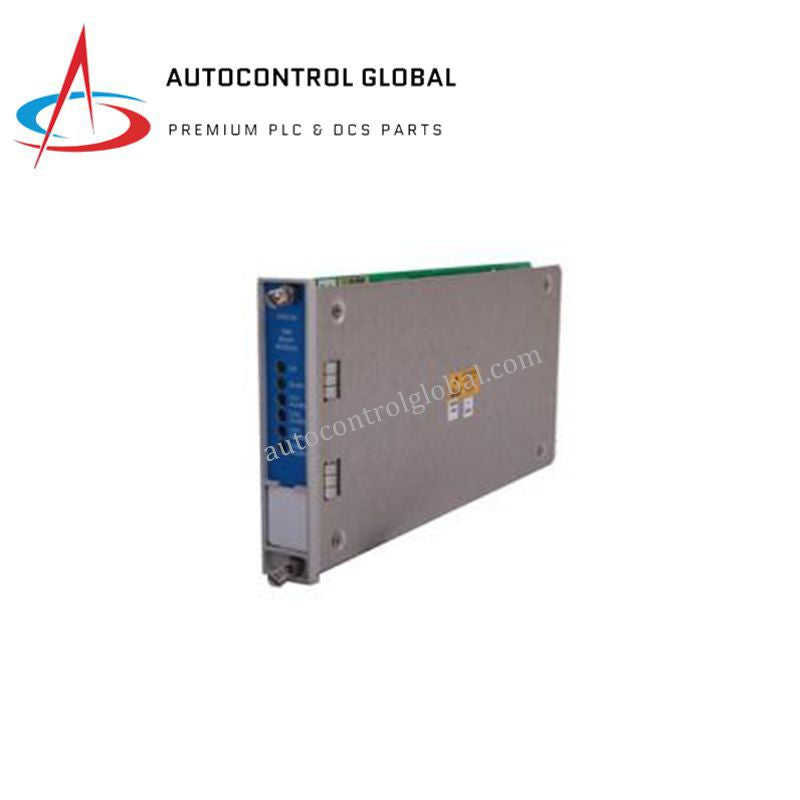

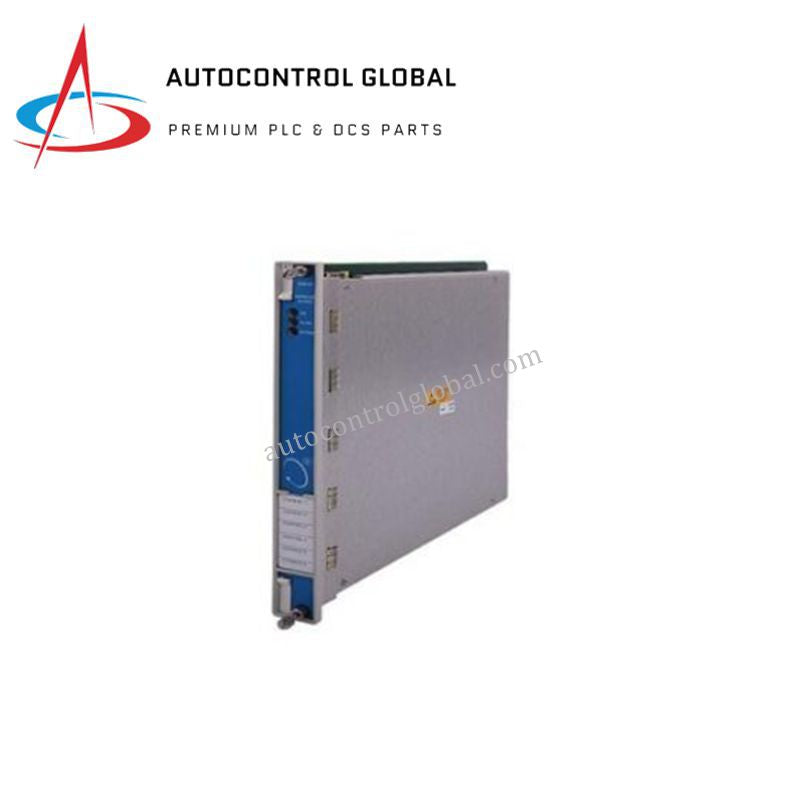

The Bently Nevada 163179-02 (3500/61-05-01) serves as a high-performance six-channel temperature monitoring unit within the 3500 Machinery Protection System. It processes inputs from Resistance Temperature Detectors (RTDs) and Thermocouples to provide continuous thermal surveillance for critical rotating assets. We provide this module as 100% brand new and original, direct from factory-sealed stock, to ensure the highest integrity for your plant's safety instrumented systems.

Part Number Breakdown: 3500/61-AA-BB

• 05 (AA): RTD/Thermocouple with External Terminations (facilitates flexible wiring and maintenance).

• 01 (BB): European Approvals (meets specific regional regulatory requirements for industrial deployment).

• 163179-02: The specific hardware part number representing this module and its internal configuration.

Technical Specifications

Engineering Advantages

Versatile Multi-Sensor Interfacing

The 163179-02 eliminates the need for separate RTD and Thermocouple modules. Its internal logic allows engineers to configure each of the six channels independently, accommodating mixed sensor types within a single rack slot. This maximizes rack efficiency and reduces total hardware costs.

Independent Alarm Logic

This module executes protective logic locally. It compares real-time measurements against programmed Alert and Danger setpoints to trigger relay modules instantly. This decentralized approach ensures that machinery protection remains active even if the central communication gateway experiences an interruption.

Advanced Cold Junction Compensation

For Thermocouple inputs, the 3500/61 utilizes high-precision cold junction compensation (CJC). This feature corrects for ambient temperature variations at the terminal blocks, ensuring that the module reports actual process temperatures without the drift commonly found in lower-grade instrumentation.

Recorder Output Flexibility

Six dedicated 4-20 mA outputs transmit temperature data to external PLCs or DCS. These outputs scale to specific temperature ranges, allowing plant operators to trend bearing temperatures, motor windings, or exhaust gas profiles with high granularity.

FAQs

Can the 163179-02 be swapped "hot" while the rack is powered?

Yes. Bently Nevada designed the 3500 series for hot-swappability. You can replace the 3500/61 module without powering down the entire machinery protection system, provided you follow proper electrostatic discharge (ESD) procedures and safety protocols.

How does the module handle sensor failure?

The 163179-02 continuously performs self-diagnostics. If the module detects an open circuit or a faulty sensor (Not OK status), it drives the corresponding 4-20 mA recorder output to a "Low" or "High" fault level and triggers a system status alarm to prevent false trips.

What is the benefit of the External Termination (05) option?

The "05" option utilizes an External Termination (ET) block. This allows you to terminate field wiring at a separate strip rather than directly on the back of the rack. This simplifies module replacement and reduces the risk of disturbing field wires during maintenance.

Does this module require specific configuration software?

Yes. You configure the 3500/61-05-01 using the 3500 Rack Configuration Software. This software allows you to set sensor types, measurement units (Celsius or Fahrenheit), and specific alarm delay times to prevent nuisance alarms during transient thermal events.
