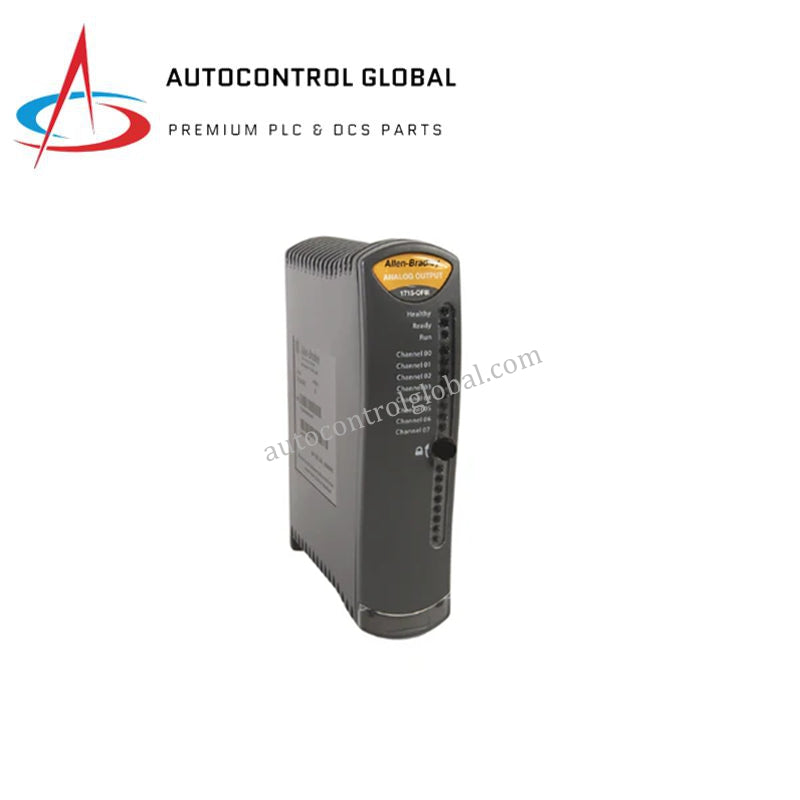

1715-OF8I /A Analog Output Module Allen-Bradley ControlLogix
Manufacturer: ABB
-
Part Number: 1715-OF8I
Condition：New with Original Package
Product Type: Analog Output Module
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
Product Overview
The 1715-OF8I /A from Allen-Bradley is an 8-channel isolated analog output module within Rockwell Automation’s Bulletin 1715 Redundant I/O platform. It is engineered for Safety Instrumented Systems (SIS) and other high-availability process control applications requiring precision, reliability, and fault tolerance.
This module provides eight isolated output channels capable of delivering 4–20 mA signals to field devices including control valves, actuators, and variable frequency drives (VFDs). When paired with a 1715 redundant base and adapter, it supports redundant operation, ensuring continuous system availability. With features such as hot-swap capability, diagnostics, and channel isolation, it is ideal for demanding industrial environments such as oil & gas, chemical, power generation, and pharmaceuticals.
Technical Specifications
| Parameter | Details |
|---|---|
| Catalog Number | 1715-OF8I /A |
| Series | Bulletin 1715 Redundant I/O |
| Module Type | Analog Output Module |
| Number of Outputs | 8 isolated channels |
| Output Signal Type | 4–20 mA DC |
| Accuracy | ±0.30% + 10 µA at 40 °C |
| Temperature Drift | (0.01% + 0.1 µA)/°C |
| Isolation | Channel-to-channel and channel-to-system |
| Diagnostics | Built-in output status and fault detection |
| Redundancy | Supports redundant adapter/base operation |
| Hot-Swap Capability | Yes, modules can be replaced without system shutdown |
| Wiring | 22–16 AWG shielded wire supported |
| Operating Voltage | 18–32 V DC |
| Power Consumption | 3.6 W |
| Operating Temperature | –10 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Protection Rating | IP20 (cabinet installation required) |
| Certifications | CE, UL, CSA, ATEX |
| Integration | Compatible with ControlLogix SIS via EtherNet/IP |
