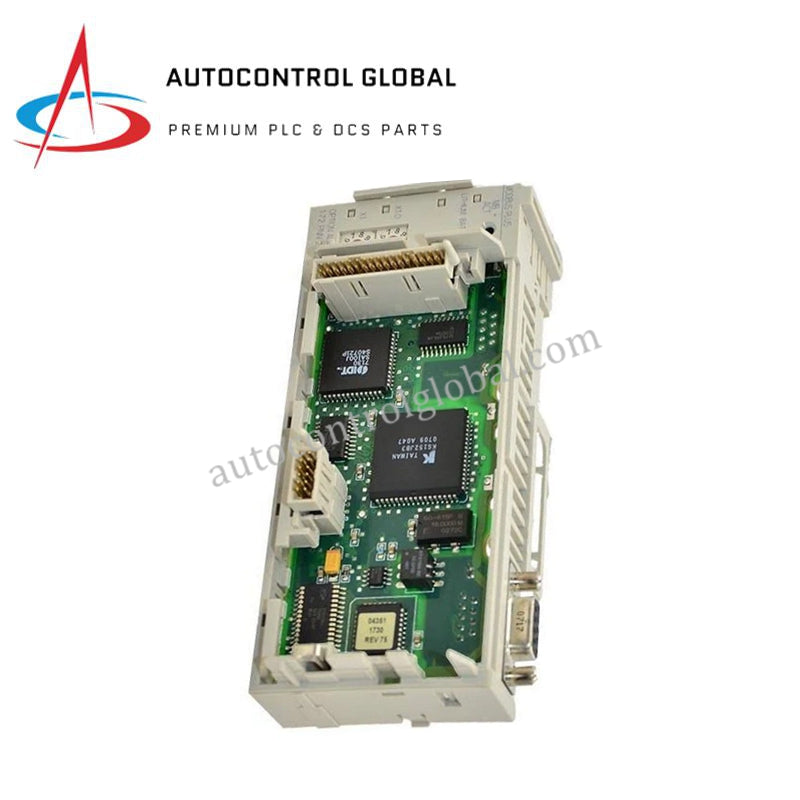

172PNN21022 | Schneider Electric | Profibus DP Option Adapter

Product Overview

The 172PNN21022 is a fieldbus communication option adapter developed by Schneider Electric for the Modicon Momentum automation platform. This module enables Momentum I/O bases to interface directly with Profibus DP networks, allowing distributed I/O stations to communicate efficiently with higher-level control systems.

Designed for Profibus-based architectures, this adapter allows Momentum assemblies to operate as Profibus DP slaves, supporting deterministic data exchange with Profibus masters such as PLCs, DCS controllers, and supervisory systems.

Technical Specifications

• Model: 172PNN21022

• Product Type: Profibus DP Option Adapter

• Manufacturer: Schneider Electric

• Platform Compatibility: Modicon Momentum

• Communication Interface: Profibus DP (RS485)

• Operating Mode: Profibus DP slave

• Number of Ports: 1

• Connector Type: 9-pin D-sub

• Supported Baud Rates: 9.6 kbps to 12 Mbps (automatic detection)

• Supply Voltage: 5 V DC ±5% via Momentum I/O base

• Current Consumption: 700 mA

• Status Indicators: Communication and diagnostic LEDs

• Housing Material: Lexan

• Dimensions: 5 × 143 × 60 mm

• Net Weight:  0.10 lb (45 g)

• Protection Rating: IP20

• Compliance: CE, UL, CSA, NEMA Type 1

• Operating Temperature: 0 to 60 °C

• Storage Temperature: –40 to 85 °C

• Environmental Protection: Conformal coating for enhanced durability
