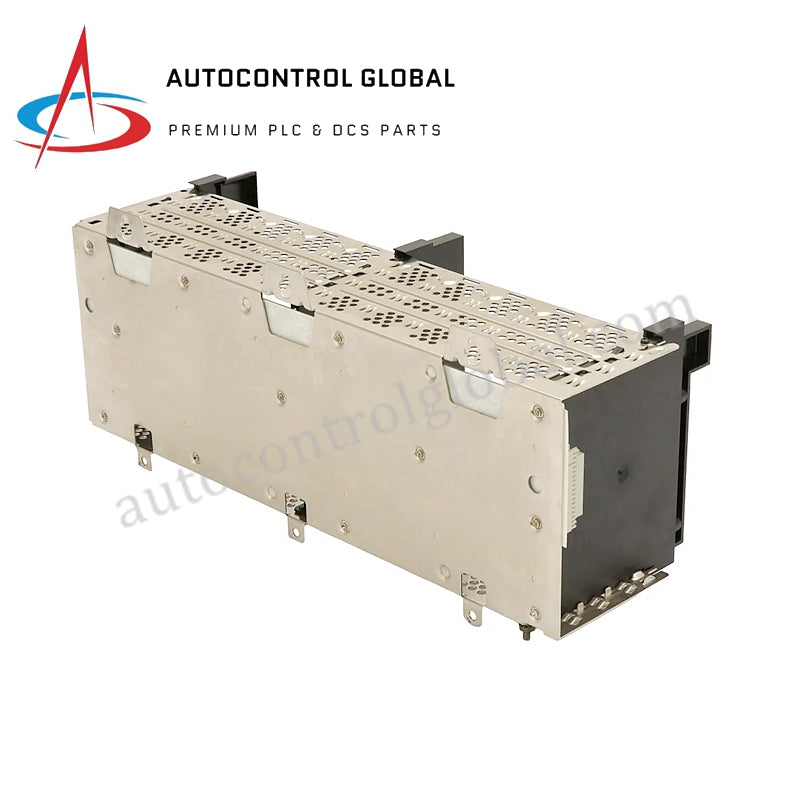

1756-A10 | ControlLogix Allen-Bradley Chassis

Description

• Part Number: 1756-A10

• Brand: Allen-Bradley

• Series: ControlLogix

• Module Type: Chassis

• Mounting: Panel Mount

• Orientation: Horizontal

• Enclosure: Open

Capacity & Electrical

• Slots: Ten (10)

• Backplane Current @ 1.2VDC: 1.5 A

• Backplane Current @ 3.3VDC: 4 A / 4 A

• Backplane Current @ 5.1VDC: 15 A / 6 A

• Backplane Current @ 24VDC: 2.8 A / 2.8 A

• Backplane Current (5VDC): 10 A

• Power Dissipation (Max): 5 W

Environmental

• Operating Temp (Series B): 0°C to +60°C (32°F to 140°F)

• Operating Temp (Series C): -25°C to +60°C (-13°F to 140°F)

• Storage Temperature: -40°C to +85°C (-40°F to 185°F)

Physical Specifications

• Cabinet Size (HxWxD): 50.8 x 76.2 x 20.3 cm (20 x 30 x 8 in.)

• Weight: 3.2 lbs (1.45 kg)
