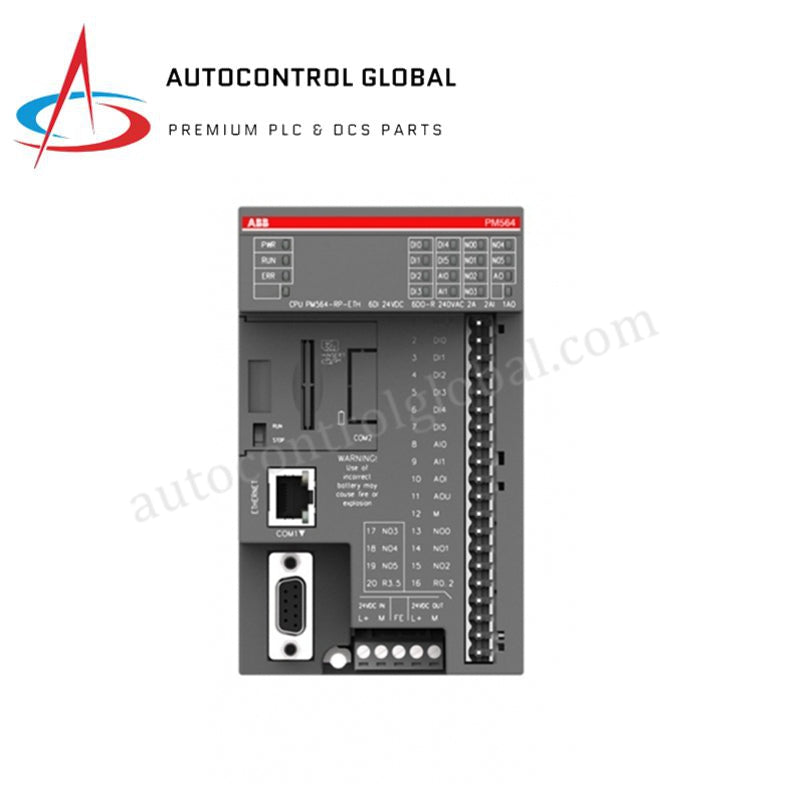

1SAP121000R0071 | ABB | PM564-RP-ETH Ethernet Monitor

Product Overview

The PM564-RP-ETH (1SAP121000R0071) is a high-performance programmable measurement and monitoring module integrated into the ABB PM500 series. Designed for advanced electrical network management, this module combines high-precision signal acquisition with native Ethernet connectivity. It serves as a critical component in industrial automation and substation protection systems, providing real-time data on power quality, energy consumption, and harmonic distortion. The PM564-RP-ETH (1SAP121000R0071) is engineered to interface seamlessly with SCADA and DCS platforms, ensuring deterministic monitoring and control in demanding electrical environments.

Detailed Technical Specifications

• Manufacturer: ABB

• Model Name: PM564-RP-ETH

• Order Number: 1SAP121000R0071

• Device Category: Programmable Measurement and Monitoring Module

• Series: PM500 / AC500 System Compatible

• Measurement Capability: 3-Phase Voltage, Current, Frequency, Power Factor

• Advanced Metrics: Active/Reactive Power, Energy (Import/Export), Total Harmonic Distortion (THD)

• Accuracy: Class 0.2 for Voltage and Current; Class 0.5S for Energy (typical)

• Communication Interface: 1 x RJ45 Ethernet Port

• Supported Protocols: Modbus TCP/IP, DNP3 over TCP/IP, IEC 61850 (configuration dependent)

• Power Supply: 24–48 V DC or 100–240 V AC (Specific to hardware variant)

• Operating Temperature: -20°C to +60°C (-4°F to +140°F)

• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

• Mounting: DIN-rail or panel mount

• Enclosure: Industrial-grade reinforced housing, IP20 rated

• Dimensions: 160 mm × 120 mm × 90 mm

• Net Weight: 1.5 kg

• Certifications: CE, UL, RoHS, IEC standards compliance
