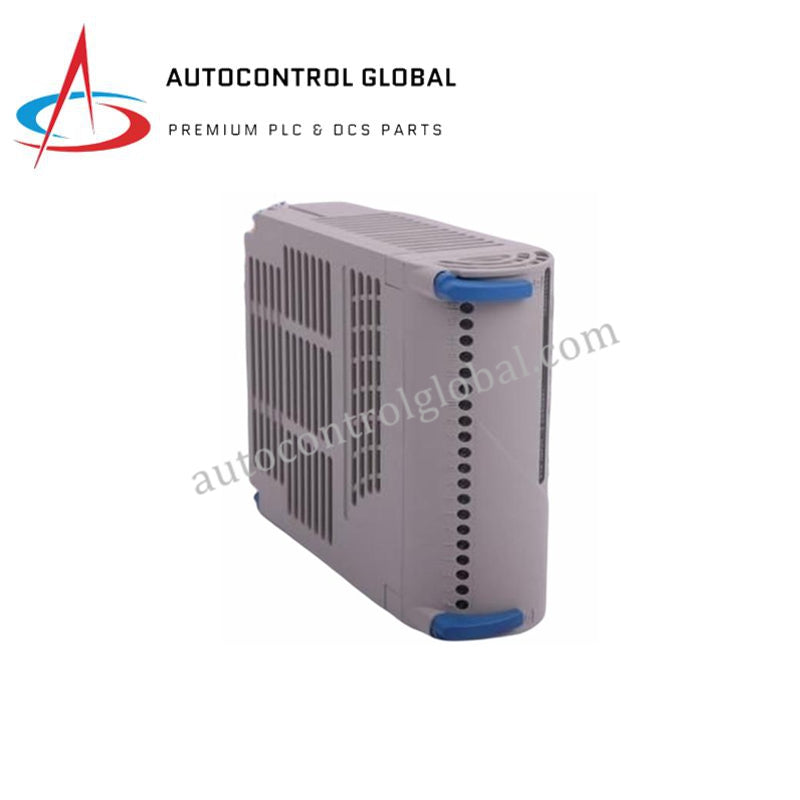

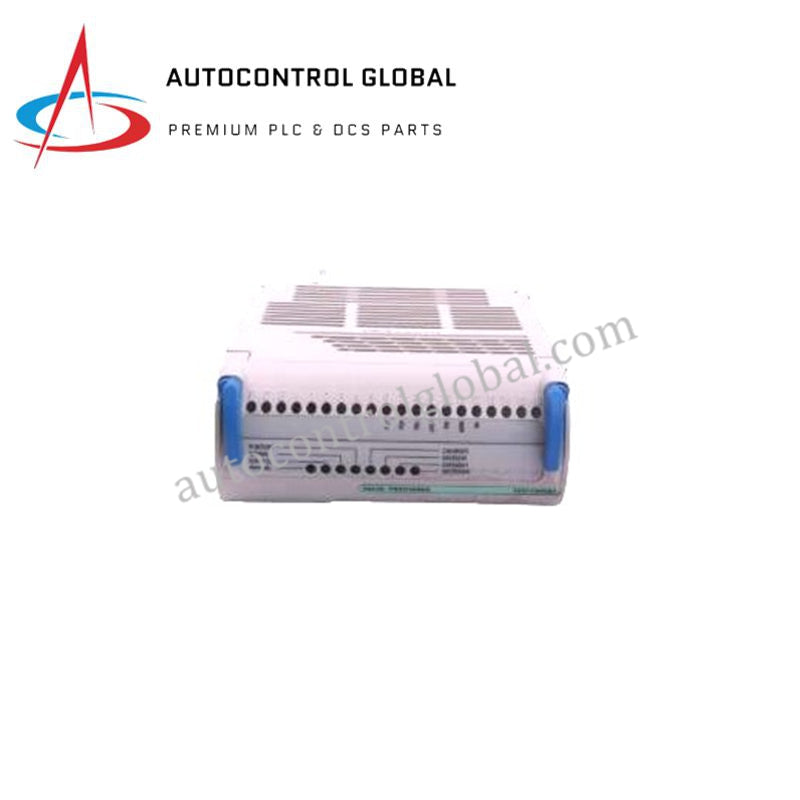

Emerson Ovation 1X00569H01 PMOD Cavity Insert and Power Supply Module

The 1X00569H01 (Order Number: 1X00569H01) is a versatile hardware component within the Emerson Ovation™ Distributed Control System (DCS) ecosystem. This module serves a critical dual-purpose role based on cabinet configuration: it functions either as a functional Industrial Power Supply or as a PMOD (Power Module) Cavity Insert. When deployed as a power source, it provides high-stability 24 VDC to controllers and I/O branches. Alternatively, as a cavity insert, it maintains the mechanical integrity of the rack, ensuring optimized airflow thermodynamics and protecting the proprietary backplane from environmental contaminants. This modular flexibility is a hallmark of the Westinghouse-heritage Ovation architecture, designed for 24/7 mission-critical operations.

System Integrity and Thermal Management

In the Ovation DCS, the 1X00569H01 is essential for maintaining the "Closed-Loop" cooling environment of the control cabinet. When slots in a power distribution rack are left empty, airflow short-circuits can occur, leading to localized hotspots on adjacent active modules. The 1X00569H01 (Order Number: 1X00569H01) as a cavity insert prevents this by maintaining uniform static pressure. When used as an active power module, it features low-ripple output and high EMI (Electromagnetic Interference) immunity, which is vital when positioned near high-voltage switchgear or turbine induction systems.

Detailed Technical Specifications

The 1C31110G01 (Model: 1C31110G01) is designed to meet stringent utility-grade power requirements.

• Manufacturer: Emerson Automation Solutions (Ovation Series)

• Order Number: 1X00569H01

• System Compatibility: Ovation™ Distributed Control System

• Primary Function: Regulated DC Power Supply / PMOD Slot Protection

• Input Voltage (Active Mode): 100–240 VAC (Nominal) or 90–375 VDC

• Input Frequency: 47–63 Hz

• Output Voltage: 24 VDC (Regulated)

• Continuous Output Current: 10 A to 12 A (Typical per module)

• Form Factor: Occupies one standard PMOD cavity slot

• Safety Protection: Over-voltage, short-circuit, and thermal fold-back protection

• Cooling Requirement: Natural convection; cavity insert aids directed airflow

• Physical Dimensions: 41 mm x 159 mm x 108 mm

• Weight: 0.4 kg (0.88 lbs)

• Operating Temperature: 0°C to +60°C

• Storage Temperature: –40°C to +85°C
