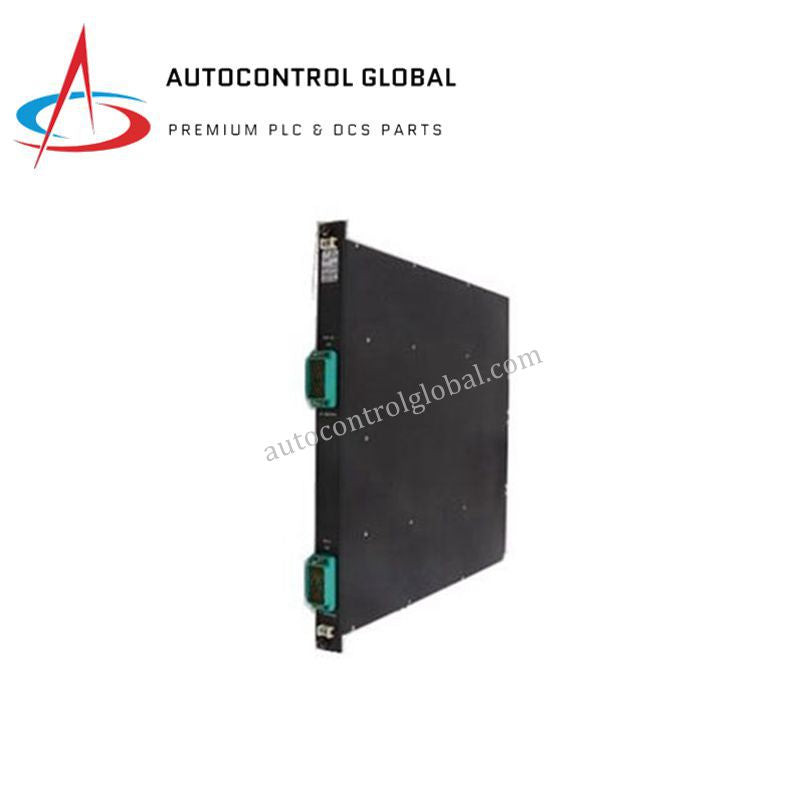

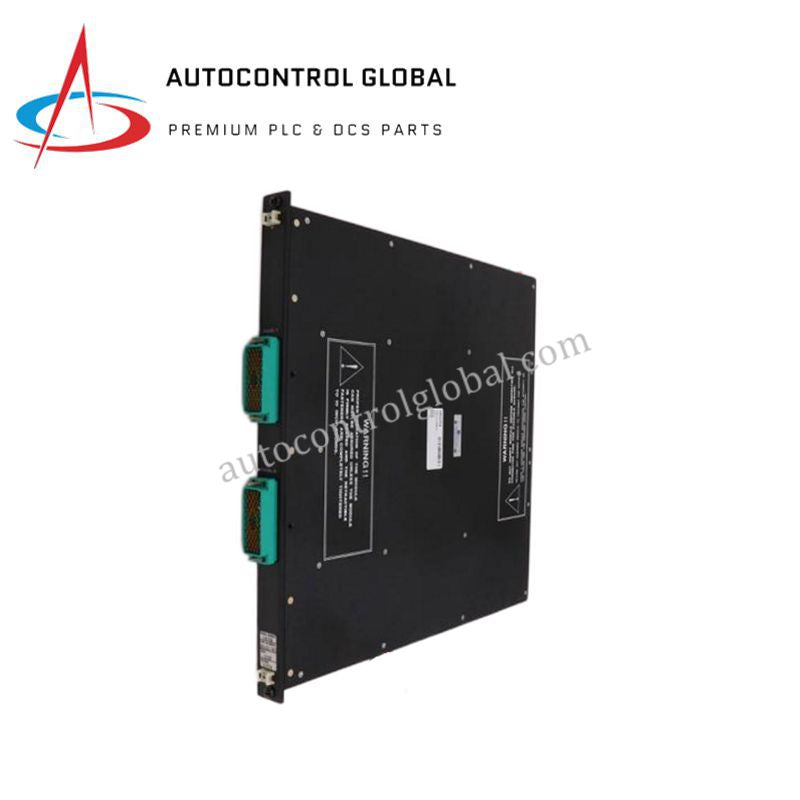

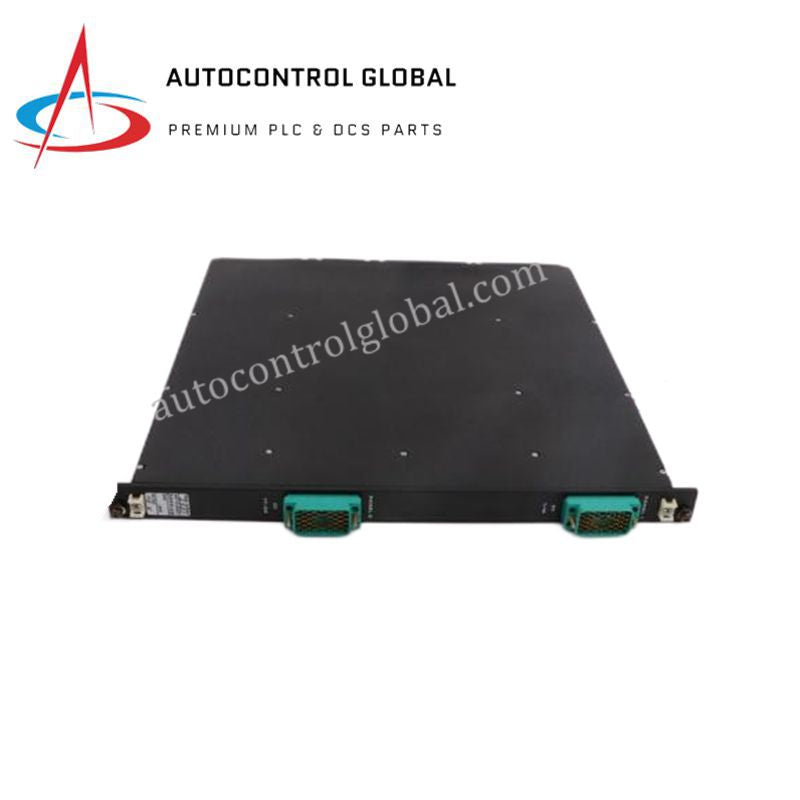

Triconex 2652 Digital Output Module – Product Description

Overview

The Triconex 2652 Digital Assembly Output Module provides dependable 24 VDC digital signaling for plants that rely on the Triconex TMR safety platform. Engineers value this module because it delivers predictable output performance during process upsets and electrical disturbances. Moreover, its compact form factor helps technicians integrate it into tightly spaced safety cabinets without modifying existing system layouts. The module supports high-integrity safety functions, therefore making it a trusted choice for operators working under strict regulatory or SIL3 compliance requirements.

Technical Specifications

Electrical Performance

• Output type: isolated digital outputs

• Number of channels: 8

• Nominal output voltage: 24 VDC

• Output current: 2 A per channel

• Response time: <1 ms

Diagnostics

• Continuous self-diagnostics

• Loop monitoring for open/short circuits

• SOE recording with millisecond resolution

Isolation

• Channel-to-channel isolation

• Field-to-logic isolation

Physical

• Dimensions: 49 × 45.3 × 6.8 mm

• Weight: 1.49 kg

• Design: plug-in module for Tricon chassis

Environmental

• Operating temperature: –40 °C to +70 °C

• Storage temperature: –40 °C to +85 °C

• Humidity: 5–95% non-condensing

Certifications

• IEC 61508 SIL3

• TÜV approval

• CE, UL, CSA compliance

Ordering Information

• Model number: 2652

• Assembly numbers: 3000095-001, 3000107-350

• Voltage rating: 24 VDC

• Status: discontinued by manufacturer

FAQ

Q1: Is the Triconex 2652 still in production?
No. The manufacturer has discontinued this model, although many facilities continue using it in active systems.

Q2: Does the 2652 support TMR operation?
Yes. It fully integrates with the Triconex Triple Modular Redundancy architecture.

Q3: How many digital outputs does it provide?
The module includes eight isolated digital output channels.

Q4: Can the module operate in harsh environments?
Yes. Its wide temperature range and rugged design support demanding industrial applications.

Q5: Are diagnostics available for each channel?
Yes. It offers loop monitoring, fault reporting, and millisecond SOE recording.
