2711P-B6C20D8 | Allen-Bradley | Keypad & Touch HMI Terminal

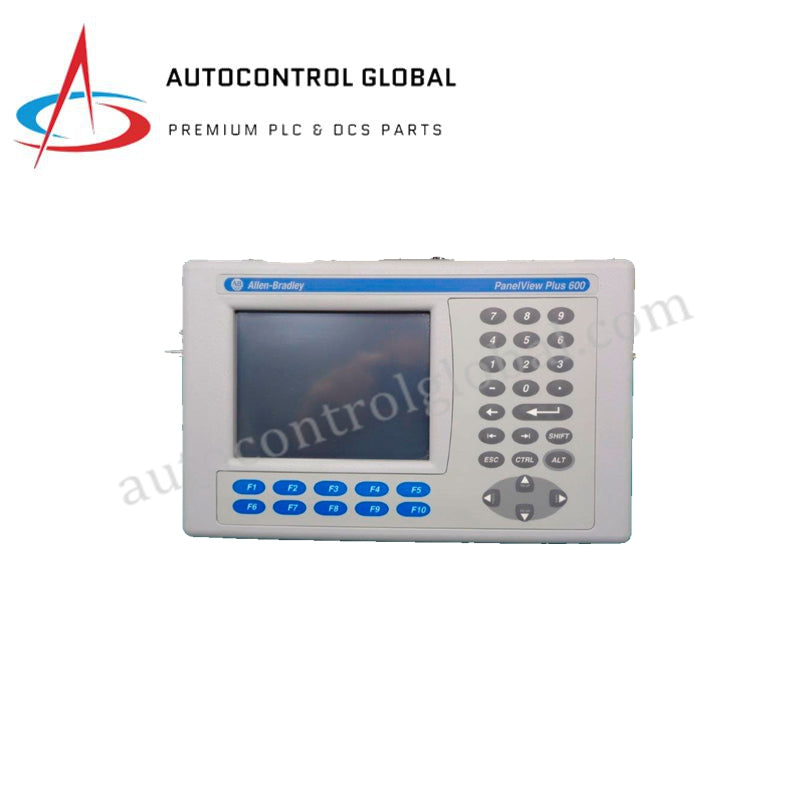

Allen-Bradley 2711P-B6C20D8 PanelView Plus 6 600 Keypad & Touch HMI Terminal

Product Description

The 2711P-B6C20D8 (2711P-B6C20D8) is a high-performance operator interface terminal from the Allen-Bradley PanelView Plus 6 600 series. Engineered for machine-level visualization, this HMI provides a versatile hybrid input system that combines a tactile membrane keypad with an analog-resistive touchscreen. This dual-input capability ensures reliable operation in industrial environments where users may need to navigate menus via touch or utilize physical function keys for precise control while wearing gloves.

Built on the Windows CE 6.0 operating system, the 2711P-B6C20D8 (2711P-B6C20D8) offers significant performance improvements over legacy PanelView Plus models, including doubled RAM and enhanced processor speeds. It features a 5.7-inch active-matrix TFT color display that delivers clear 18-bit graphics for monitoring complex automated processes. Despite its discontinuation by Rockwell Automation in late 2021, it remains a critical component for maintaining and repairing existing ControlLogix and CompactLogix control architectures.

Detailed Technical Specifications

The 2711P-B6C20D8 is defined by the following engineering specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 2711P-B6C20D8

• Series: PanelView Plus 6 600

• Display Type: Color Active Matrix TFT LCD

• Display Size: 5.7-inch

• Resolution: 320 x 240 QVGA

• Input Methods: Keypad (Tactile Dome) and Touchscreen (Resistive)

• Operating System: Windows CE 6.0

• Memory: 256 MB RAM / 512 MB Non-volatile Storage

• Communication Ports: 1 x 10/100 Ethernet, 1 x RS-232 (DH-485/DF1), 1 x USB 2.0 Host, 1 x USB Device

• Input Voltage: 18–30V DC (24V DC Nominal)

• Power Consumption: 25W Maximum

• Operating Temperature: 0 to 55 °C (32 to 131 °F)

• Storage Temperature: -25 to 70 °C (-13 to 158 °F)

• Enclosure Rating: IP66, NEMA Type 12, 13, 4X (Indoor)

• Backlight: White LED (Non-replaceable, 50,000 hour life typical
