32 Point 24 VDC Output Module | GE IC200MDL750E

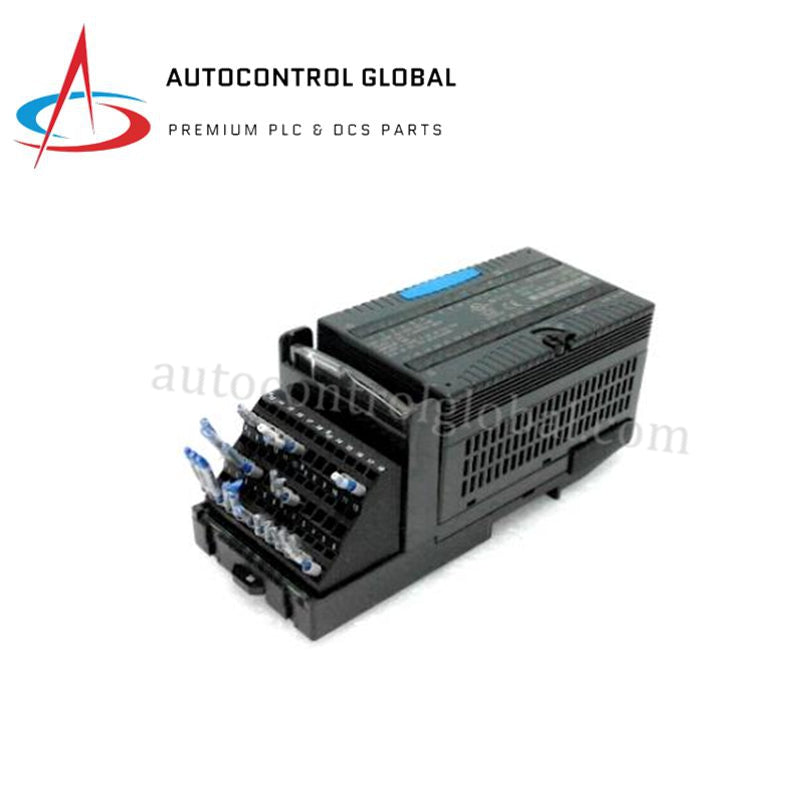

GE IC200MDL750E VersaMax Digital Output Module

The GE Fanuc IC200MDL750E, also cataloged as the IC200MDL750 Digital Output Module, operates as a dedicated hardware component for switching field actuators and discrete loads within VersaMax I/O platforms. The module provides 32 sourcing-type outputs arranged in two isolated groups of 16 channels. Internal output switching transistors source power from external 12/24 VDC field supplies to drive connected indicators, relays, and pilot duty devices.

Hardware Specifications

Backplane Bus Communication Velocity and Firmware Compatibility

Optical isolation barriers protect internal logic circuits from field-side voltage spikes up to 1500 VAC for 1 minute. The module receives state commands over the rack interface, updating all 32 channel output transistors while maintaining deterministic backplane bus communication velocity across surrounding expansion bases. Internal hardware handshakes verify firmware flash compatibility during power-up sequence to validate module parameters before activating field output drivers.

Frequently Asked Questions

Q: Does the module support point-to-point electrical isolation between output channels?

A: No point-to-point isolation exists between channels in the same group. All 16 points within a group share common DC power and ground connections; galvanic isolation of 250 VAC continuous applies only between the two discrete channel groups and backplane logic paths.

Q: How should maintenance teams protect output transistors against inductive kickback?

A: Technicians must install external suppression circuits, such as flyback diodes or RC snubber networks, directly across inductive field loads. Switching coils without suppression generates high-voltage inductive transients that degrade output switching transistors over time.

Q: Are there internal protective fuses built into the output channels?

A: The module lacks internal output fuses. External fast-acting current-limiting fuses must be installed on field wiring lines to shield internal sourcing transistors from direct short circuits and continuous overcurrent conditions.

Field Installation Guidelines

Mount the output module onto a compatible VersaMax carrier installed on a standard 35 mm DIN rail inside a protective electrical enclosure. Align the rear connector pins with the carrier backplane receptacle and press firmly until the locking tabs snap into place. Secure field output wiring to the carrier terminal block, maintaining clear separation between channel groups and field power supplies.

Route 12/24 VDC output conductors through dedicated cabinet raceways, keeping them separated from high-voltage AC lines and motor drives. Maintain a minimum distance of 200 mm between low-voltage DC lines and heavy power cables to prevent inductive noise pickup. Before applying field power, clamp all wiring shields securely to the cabinet grounding bar to establish a low-impedance earth connection.
