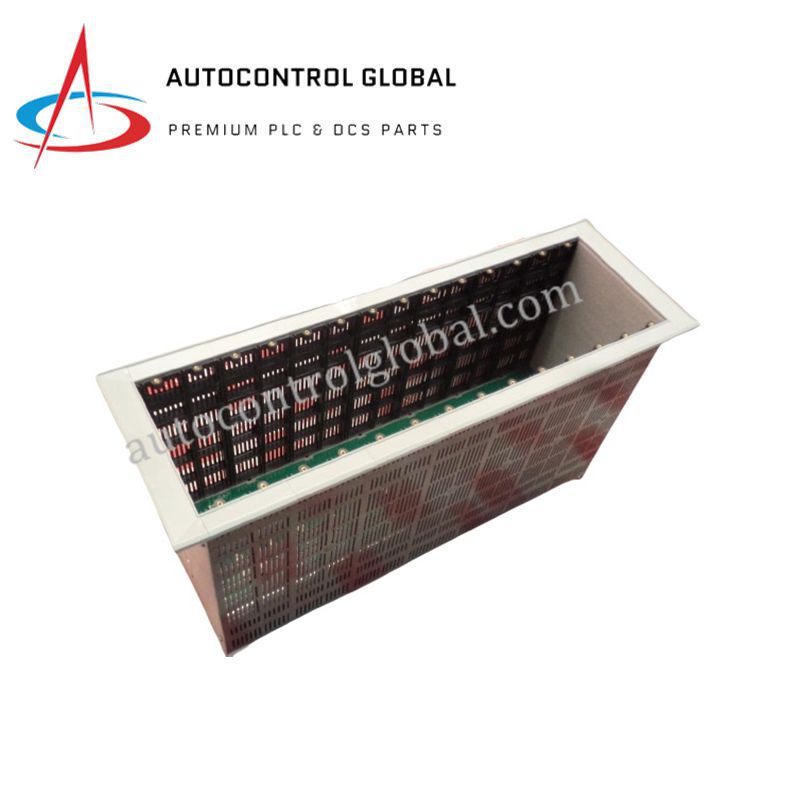

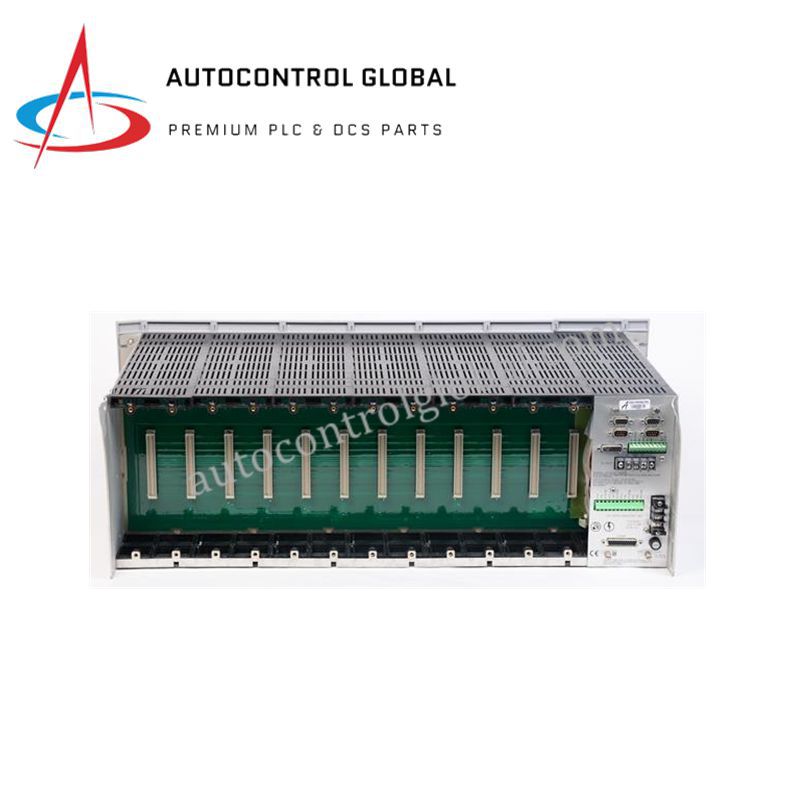

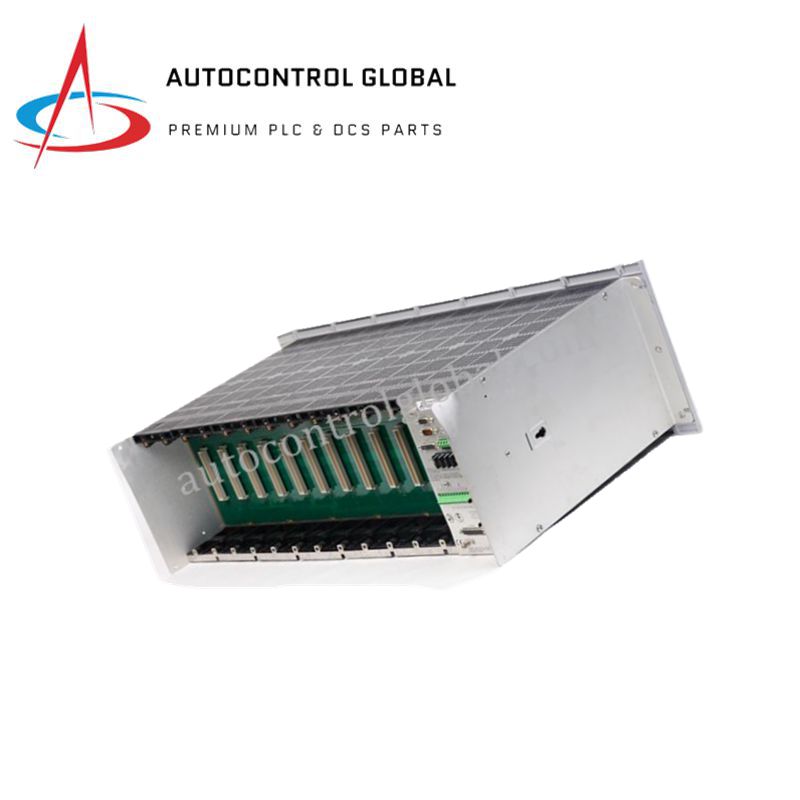

3300/05-24-00-00 | Bently Nevada 3300 Series System Chassis
Manufacturer: Bently Nevada
-
Part Number: 3300/05
Condition：New with Original Package
Product Type: 3300 Series System Chassis
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Bently Nevada 3300/05-24-00-00 is a System Interface Module designed for the legacy 3300 Series Machinery Protection System. It functions as the central hub for power distribution, signal routing, and module coordination within the rack.
This module ensures seamless communication between vibration, position, and temperature monitoring modules. It buffers transducer signals and provides OK relay logic for system status, enabling reliable machinery protection and diagnostics.
Its industrial-grade construction supports harsh environments and long-term operational reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3300/05-24-00-00 |
| Function | System Interface Module for 3300 Series racks |
| System Compatibility | Bently Nevada 3300 Series |
| Power Distribution | Interfaces with 3300/03 Power Supply Module |
| Relay Logic | Provides OK relay logic and system status signaling |
| Buffered Outputs | Routes transducer signals to external test equipment |
| Mounting | Rack-mounted (occupies one slot) |
| Operating Temperature | –30°C to +65°C |
| Environmental Rating | Industrial-grade; suitable for harsh environments |
| Applications | Central interface for vibration, position, and temperature monitoring |
FAQ
Q1: What is the main function of the 3300/05-24-00-00?
A1: It serves as a system interface module, managing power, relays, and signal routing.
Q2: Is it compatible with all 3300 Series modules?
A2: Yes, it is designed to interface with the Bently Nevada 3300 Series.
Q3: What is the operating temperature range?
A3: It operates between –30°C and +65°C.
Q4: How is it mounted in the rack?
A4: The module is rack-mounted and occupies one slot.
Q5: Can it connect to external test equipment?
A5: Yes, it provides buffered outputs for safe external signal connections.
