3300 XL 8mm Cable 330195-02-12-05-00 | Bently Nevada Proximity
Manufacturer: Bently Nevada
-
Part Number: 330195-02-12-05-00
Condition：New with Original Package
Product Type: 3300 XL 8mm Cable
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview

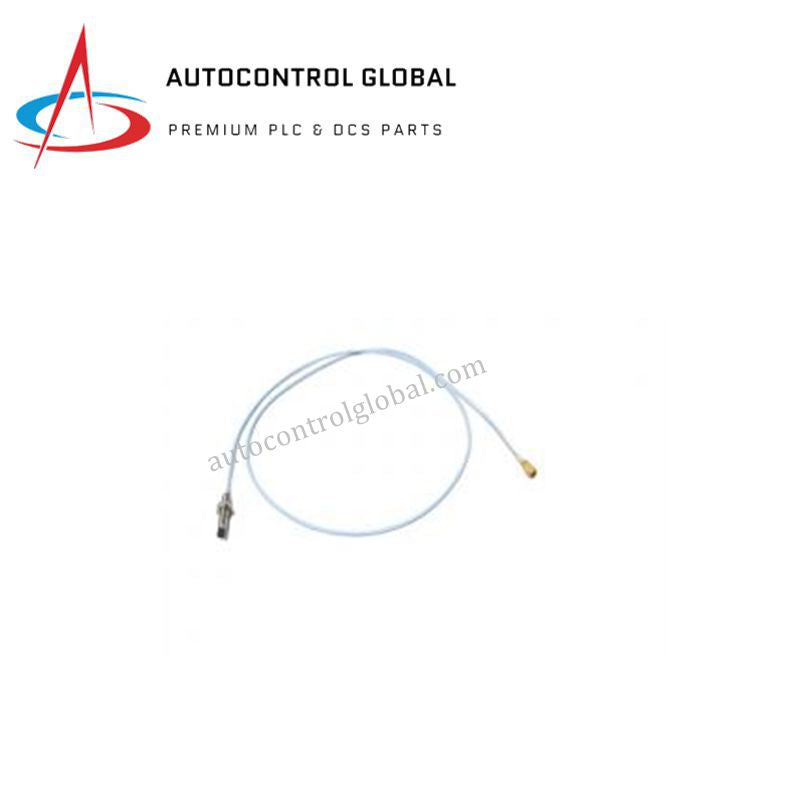

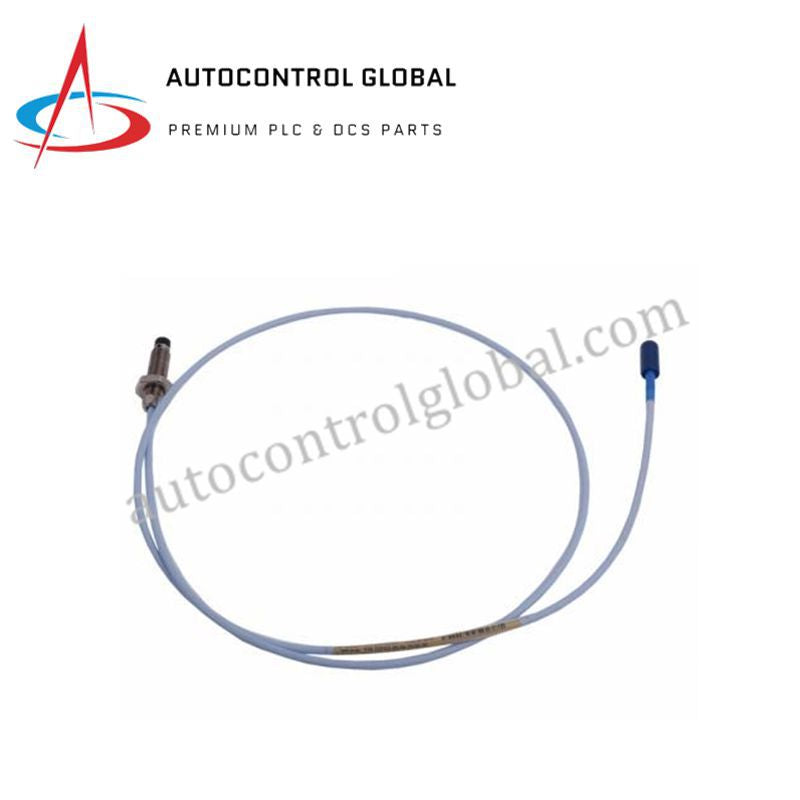

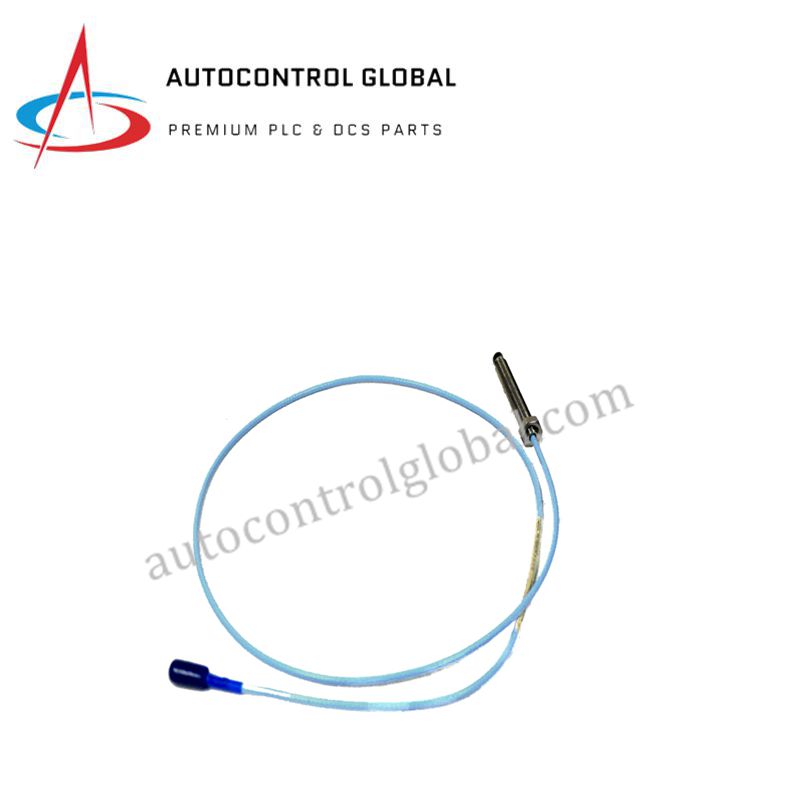

The Bently Nevada 330195-02-12-05-00 is a high-quality extension cable designed for 3300 XL 8 mm proximity probes. It provides a reliable connection between the probe and Proximitor® sensor, forming a complete system for non-contact vibration and shaft position monitoring.
This model features a 5-meter cable, rugged coaxial connectors, and industrial-grade insulation. It is widely used in turbines, compressors, pumps, and motors for shaft vibration, thrust position, and radial displacement monitoring.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 330195-02-12-05-00 |
| Series | 3300 XL |
| Function | Extension cable for proximity transducer system |
| Cable Length | 5 meters (approx. 16.4 feet) |
| Connector Type | Coaxial connectors on both ends |
| Cable Jacket Material | Rugged industrial-grade insulation |
| Temperature Range | –35°C to +120°C |
| Environmental Rating | Resistant to oil, moisture, and industrial contaminants |
| System Compatibility | Works with 3300 XL 8 mm probes and Proximitor® sensors |
| Probe Thread Size | 3/8-24 UNF threads |
| Probe Sealing | Viton® O-ring for differential pressure sealing |
| Shipping Weight | 2 kg |
| Applications | Shaft vibration, thrust position, radial displacement monitoring |
FAQ
Q1: What is the cable length of the 330195-02-12-05-00?
A1: The cable is 5 meters (16.4 feet) long with coaxial connectors on both ends.
Q2: Can this cable be used with 3300 XL 8 mm proximity probes?
A2: Yes, it is fully compatible with 3300 XL 8 mm probes and Proximitor® sensors.
Q3: Does this cable have pressure sealing for the probe?
A3: Yes, the probe tip uses a Viton® O-ring to seal differential pressure.
Q4: What is the operating temperature range?
A4: It operates reliably from –35°C to +120°C.
Q5: Is it new and factory original?
A5: Yes, it is brand new, factory original, shipped via FedEx or DHL.
