330104-00-08-10-02-CN Bently Nevada | 8 mm 3300 XL Sensor
Manufacturer: Bently Nevada
-
Part Number: 330104-00-08-10-02-CN
Condition：New with Original Package
Product Type: 8 mm 3300 XL Sensor
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview

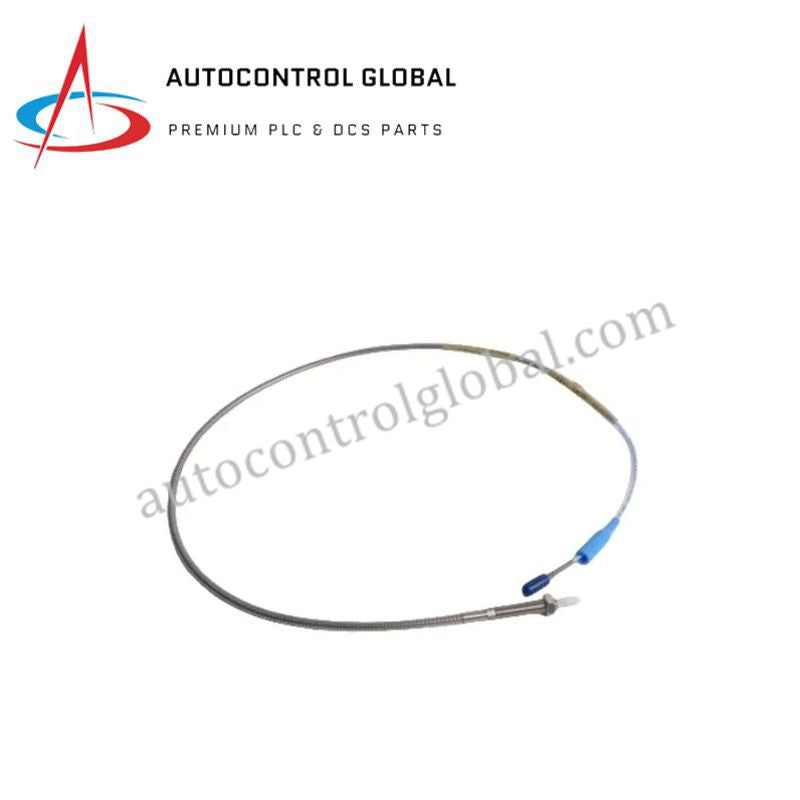

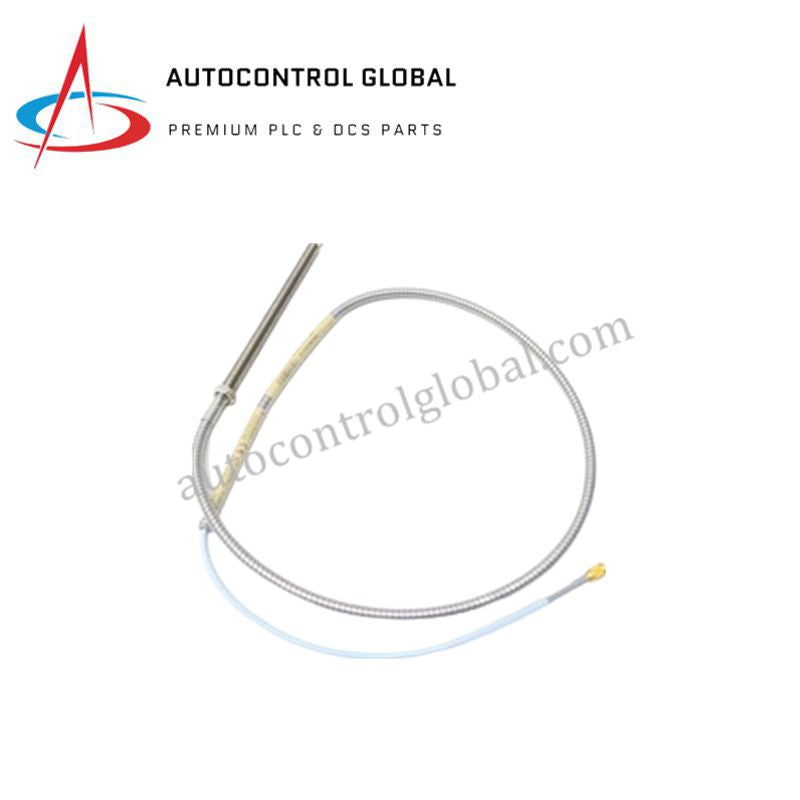

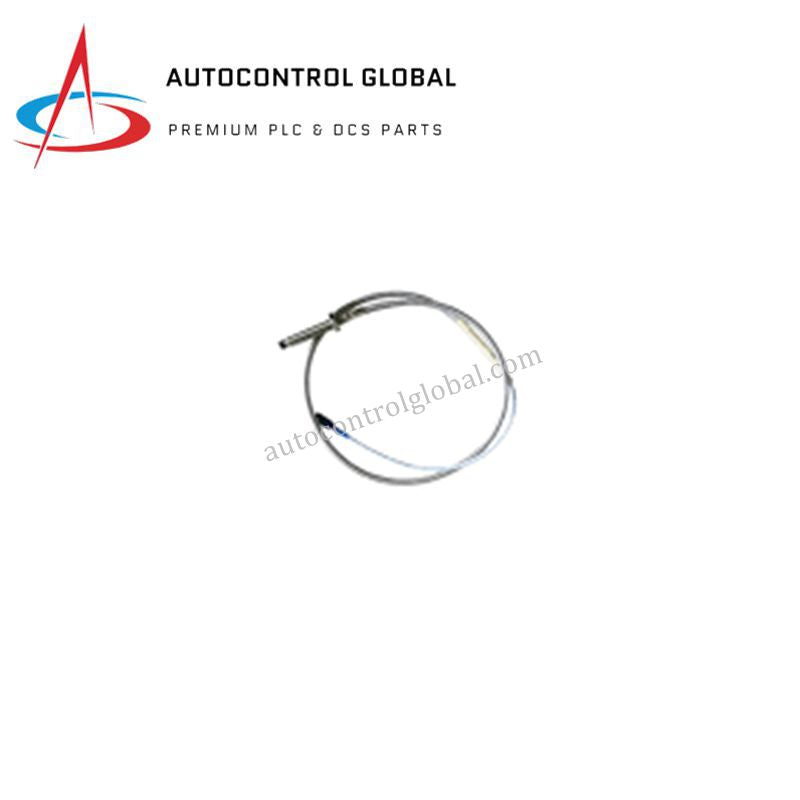

The Bently Nevada 330104-00-08-10-02-CN is a high-performance 3300 XL proximity probe designed for non-contact vibration and position measurements. It integrates with the Proximitor® sensor system to provide precise monitoring of shaft vibration, thrust position, and radial displacement.
This model features an 8 mm probe tip, 3-meter cable length, and a right-angle cable exit, with CN certification for use in China. It is ideal for turbines, compressors, pumps, and motors, delivering reliable and accurate measurements in industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330104-00-08-10-02-CN |
| Series | 3300 XL |
| Function | Proximity probe for vibration and position monitoring |
| Cable Length | 10 feet (3.0 meters) |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Cable Exit Style | 02 = Right-angle exit |
| Connector Type | Miniature coaxial ClickLoc™ connector, standard cable |
| Material | Probe tip: PPS; Housing: AISI 303/304 stainless steel |
| Operating Temperature | –35°C to +120°C |
| Measurement Range | 0.25 to 2.0 mm (10 to 80 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linearity | ±0.25% of full-scale range |
| Environmental Rating | Resistant to oil, moisture, and industrial contaminants |
| Compliance | CN = Certified for use in China |
| Shipping Weight | 2 Kg |
| Applications | Shaft vibration, thrust position, radial displacement monitoring |
FAQ
Q1: What is the cable length for this probe?
A1: The cable length is 3.0 meters (10 feet) with a right-angle exit.
Q2: What is the probe tip material?
A2: The tip is made of Polyphenylene Sulfide (PPS) for high durability.
Q3: What diameter is the probe tip?
A3: The probe tip diameter is 8 mm.
Q4: Can it be used in high-temperature environments?
A4: Yes, it operates safely from –35°C to +120°C.
Q5: Is this module compliant with Chinese standards?
A5: Yes, the CN suffix indicates CN regulatory compliance.
