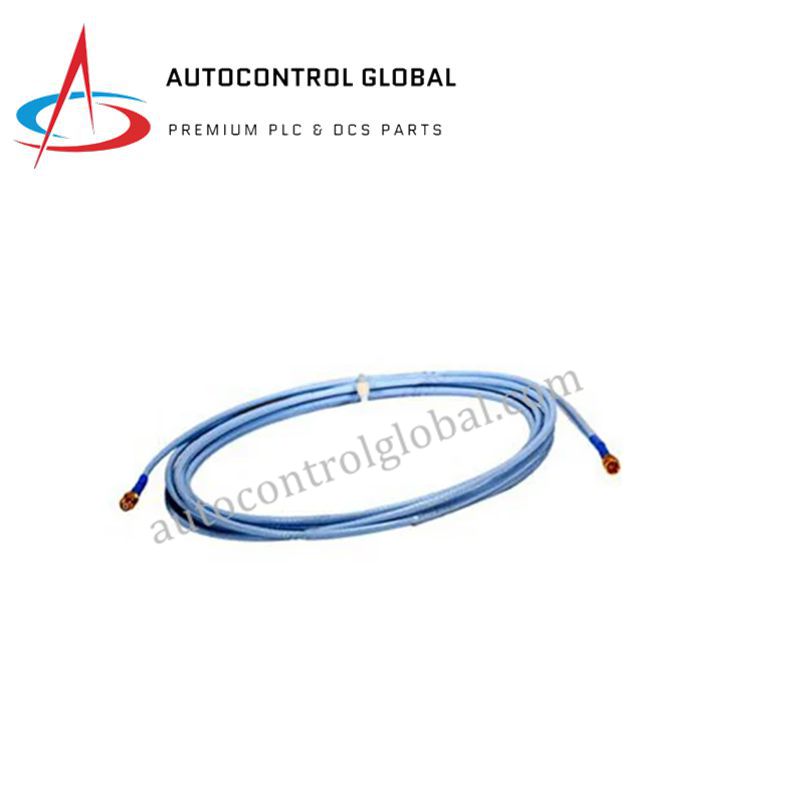

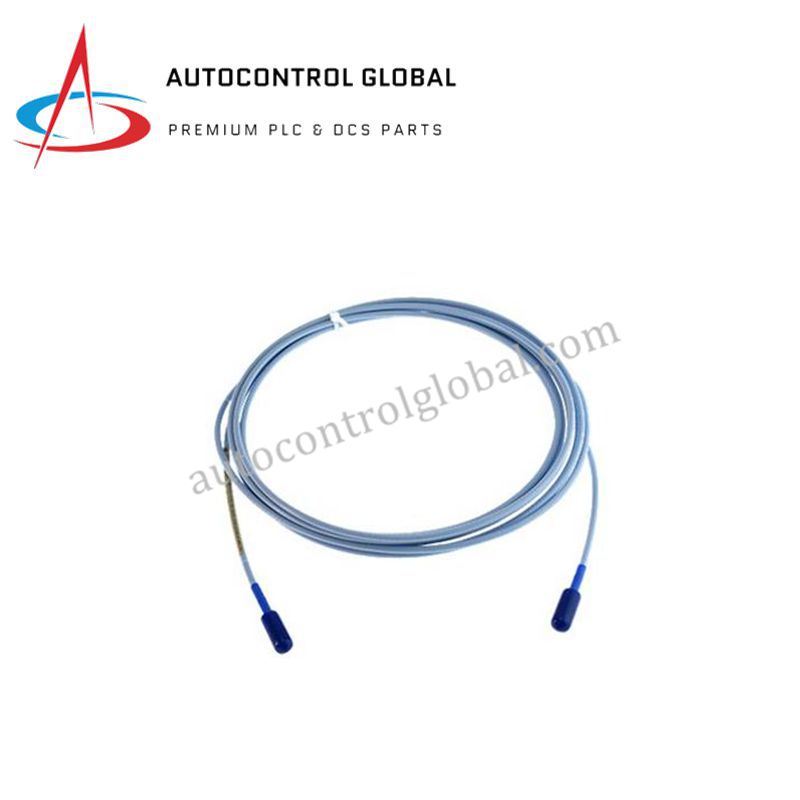

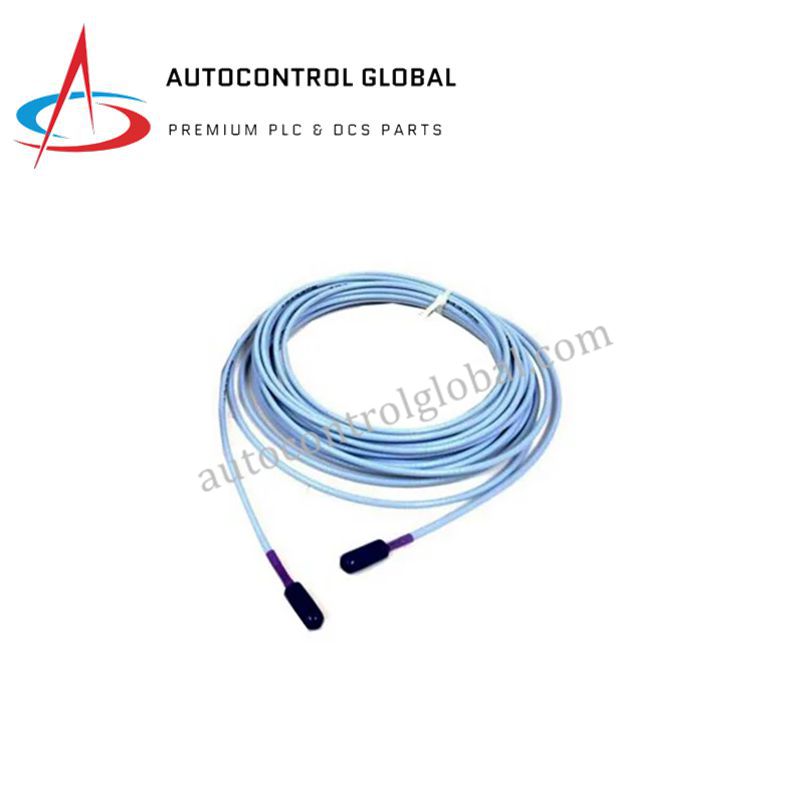

330130-040-01-CN | Bently Nevada 3300 XL Shaft Monitoring Cable
Manufacturer: Bently Nevada
-
Part Number: 330130-040-01-CN
Condition：New with Original Package
Product Type: 3300 XL Shaft Monitoring Cable
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Bently Nevada 330130-040-01-CN is a high-performance extension cable for the 3300 XL series proximity probe system. It enables non-contact vibration and position measurements in rotating machinery, including turbines, compressors, pumps, and motors.
This cable features armored protection, a straight cable exit, and compliance with Chinese regulatory standards (CN). It integrates seamlessly with Bently Nevada’s transducer system, which includes a probe and Proximitor® sensor.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330130-040-01-CN |
| Series | 3300 XL |
| Function | Extension cable for proximity probe vibration and position monitoring |
| Cable Length | 40 inches (1 meter) |
| Probe Tip Diameter | 8 mm |
| Thread Size | M10 × 1 |
| Cable Exit Style | 01 = Straight exit |
| Connector Type | Coaxial connector for extension cable |
| Material | Probe tip: PPS; Housing: Stainless steel |
| Operating Temperature | –35°C to +120°C |
| Measurement Range | Typically 0.25 to 2.0 mm (10 to 80 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linearity | ±0.25% of full-scale range |
| Environmental Rating | Resistant to oil, moisture, and industrial contaminants |
| Compliance | CN = Certified for use in China |
| Shipping Weight | 1.5 Kg |
| Applications | Shaft vibration, thrust position, radial displacement |
FAQ
Q1: What is the cable length of the 330130-040-01-CN?
A1: The cable length is 1 meter (40 inches), armored for added protection.
Q2: What machinery is this cable suitable for?
A2: It is ideal for turbines, compressors, pumps, and motors using the 3300 XL proximity probe system.
Q3: Can this cable be used outside of China?
A3: Yes, but the CN option ensures compliance with Chinese regulations; other approvals may differ.
Q4: What is the probe tip diameter?
A4: The probe tip diameter is 8 mm, compatible with standard 3300 XL proximity probes.
