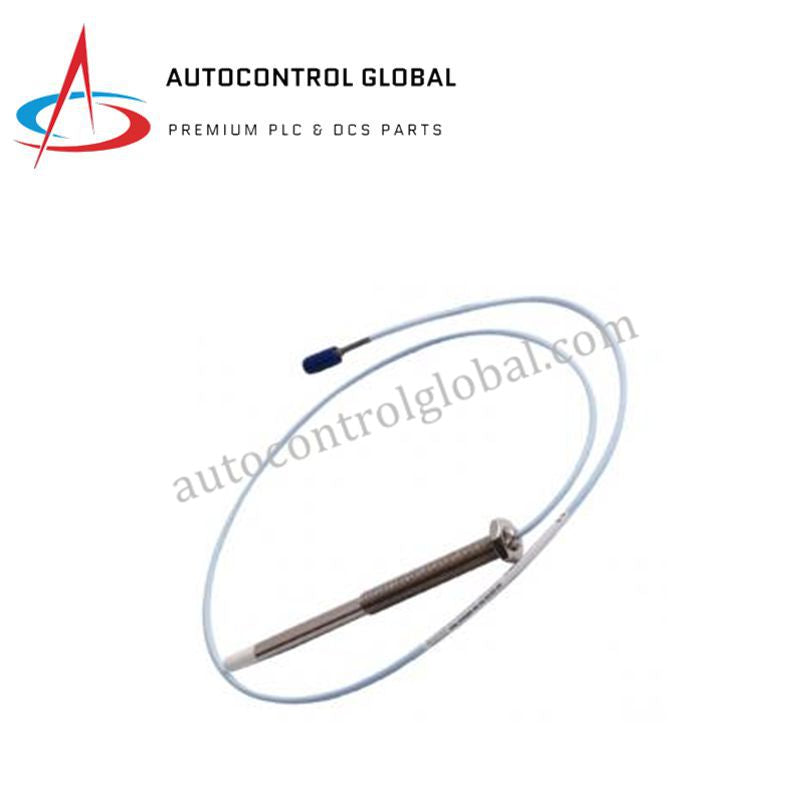

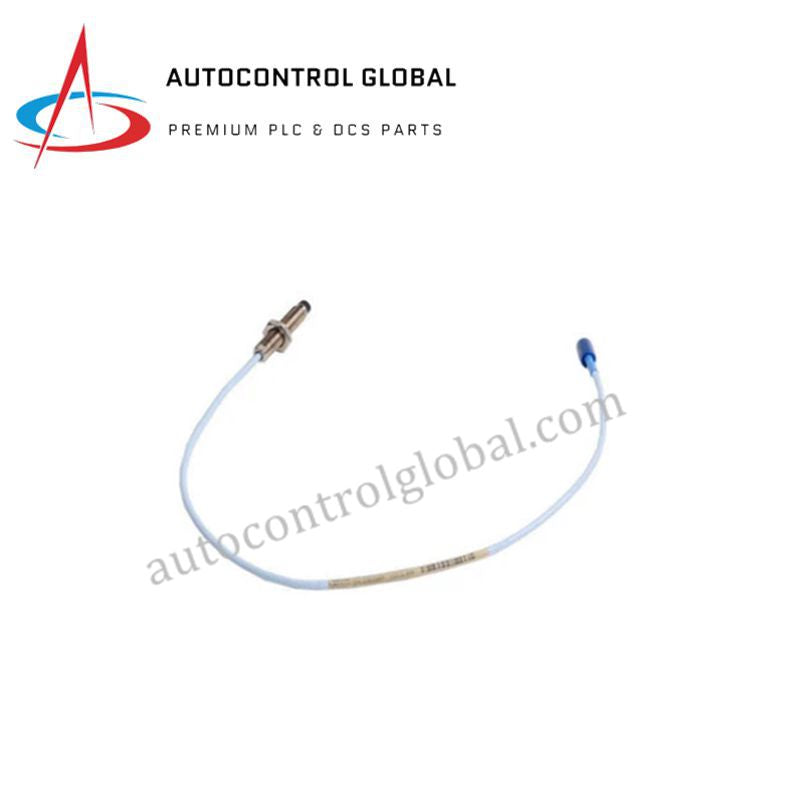

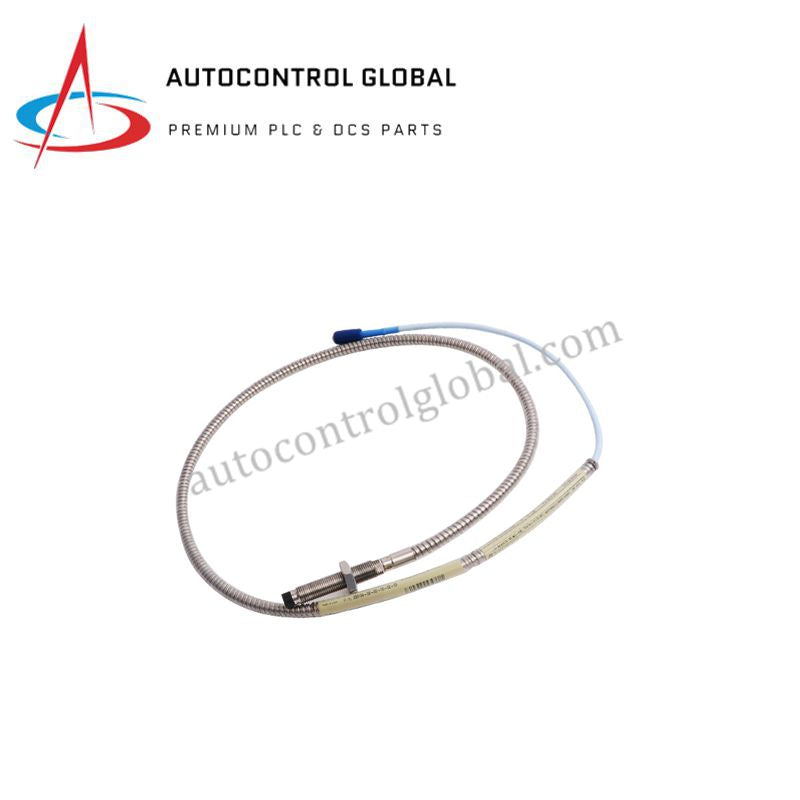

330905-00-18-05-02-05 | Bently Nevada 3300 NSv Proximity Probe
Manufacturer: Bently Nevada
-
Part Number: 330905-00-18-05-02-05
Condition：New with Original Package
Product Type: 3300 NSv Proximity Probe
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Bently Nevada 330905-00-18-05-02-05 is a piezoelectric accelerometer designed for vibration monitoring of motors, pumps, compressors, fans, and gearboxes. It features integrated electronics that produce a robust output proportional to acceleration.
Built for harsh industrial environments, this sensor supports continuous monitoring in predictive maintenance systems. Its solid construction and hermetic sealing ensure reliability in outdoor and industrial conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330905-00-18-05-02-05 |
| Sensor Type | Piezoelectric accelerometer |
| Sensitivity | 100 mV/g ±5% |
| Frequency Response | 2 Hz–10 kHz (±3 dB typical) |
| Measurement Range | ±50 g peak |
| Cable Length | 18 ft (approx. 5.5 m) |
| Connector Type | MIL-C-5015 2-pin connector |
| Mounting Thread | 1/4-28 UNF |
| Housing Material | Stainless steel, hermetically sealed |
| Operating Temperature | –55°C to +120°C |
| Environmental Rating | IP67 or better; suitable for industrial and outdoor use |
| Applications | Vibration monitoring in motors, pumps, compressors, fans, and gearboxes |
FAQ
Q1: What is the sensitivity of the 330905-00-18-05-02-05?
A1: The sensor provides 100 mV/g ±5% sensitivity for accurate vibration measurement.
Q2: What frequency range does it cover?
A2: The operating range is 2 Hz to 10 kHz ±3 dB.
Q3: What type of connector does this accelerometer use?
A3: It features a MIL-C-5015 2-pin connector.
Q4: What mounting options are available?
A4: The sensor uses a 1/4-28 UNF mounting thread.
Q5: Is it suitable for outdoor or harsh environments?
A5: Yes, it is IP67-rated and hermetically sealed for industrial conditions.
