3BHB017688R0001 ABB | High-Performance Industrial DC Supply
Manufacturer: ABB
-
Part Number: 3BHB017688R0001
Condition：New with Original Package
Product Type: High-Performance Industrial DC Supply
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

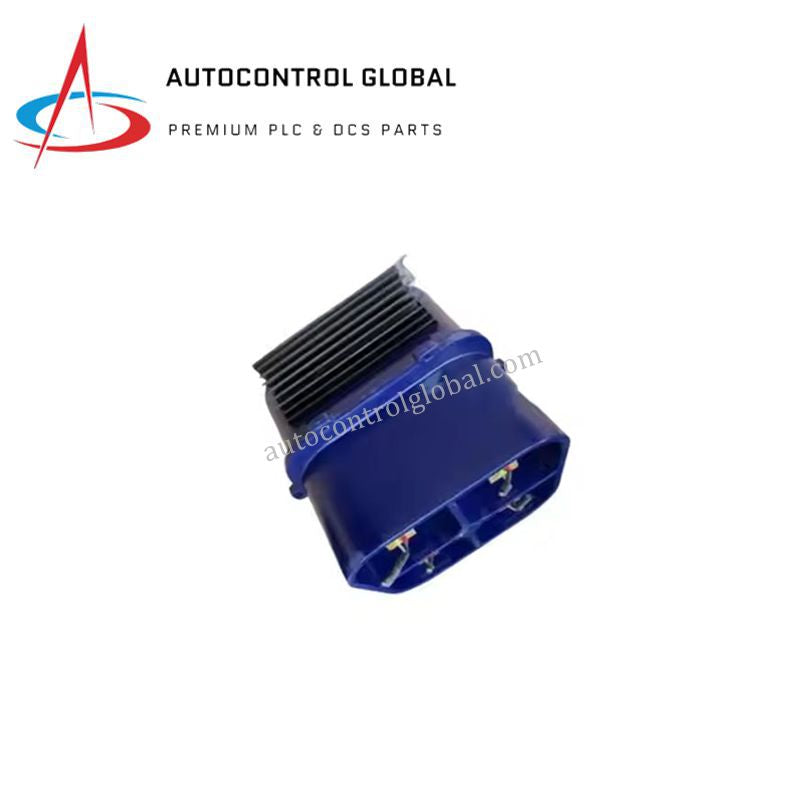

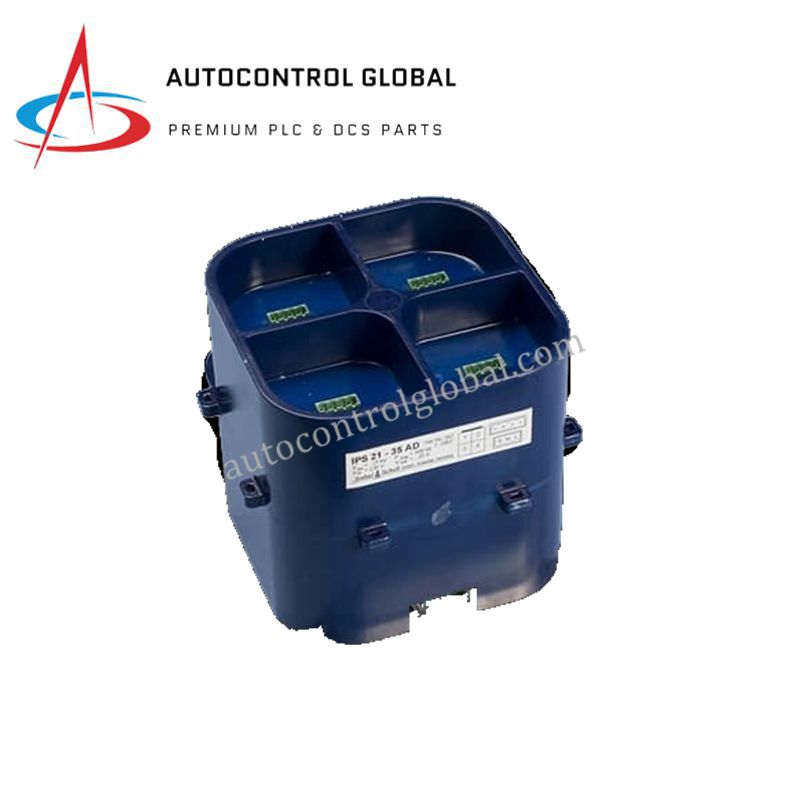

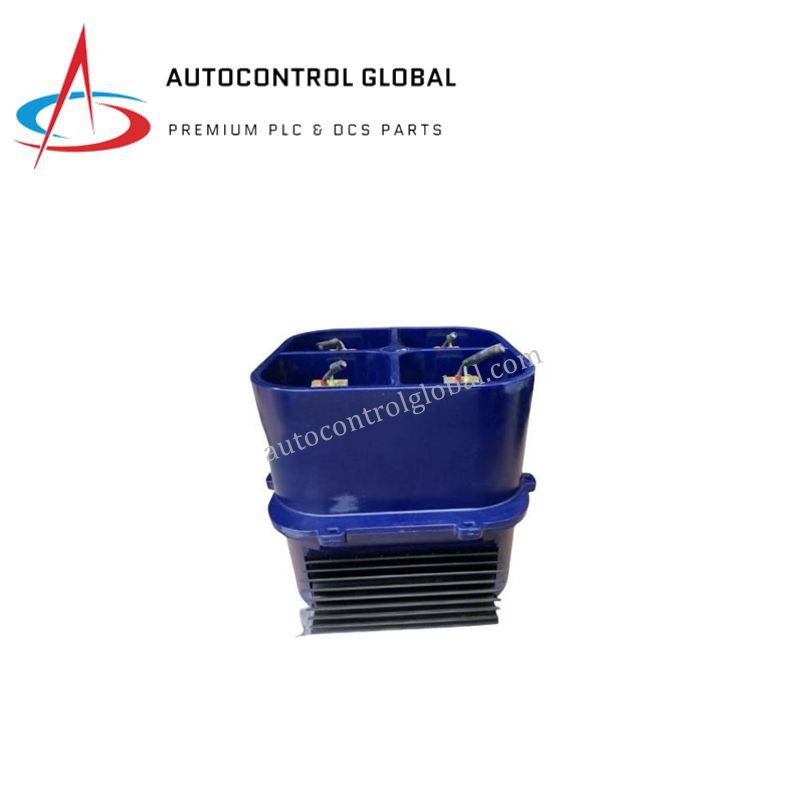

ABB IPS21-35AD Industrial DC Power Supply Module
Overview
The ABB IPS21-35AD (3BHB017688R0001) is an isolated DC power supply designed for high-performance industrial automation and control systems.
It delivers stable 24 VDC output with 35 A current capacity and active power factor correction (PFC > 0.98).
The module operates across a wide temperature range from –25°C to +70°C, ensuring reliable performance in harsh industrial environments.
It features a modular architecture, supporting high-speed communication backplanes and direct CPU integration.
Multiple communication lines enable tasks such as HMI interaction, motion control, and fieldbus I/O, enhancing system flexibility.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | IPS21-35AD |
| Part Number | 3BHB017688R0001 |
| Product Type | Industrial DC Power Supply |
| Input Voltage Range | 85–265 VAC |
| Output Voltage | 24 VDC |
| Output Current | 35 A |
| Power Factor Correction | Active PFC > 0.98 |
| Isolation Voltage | 4 kV |
| Operating Temperature | –25°C to +70°C |
| Dimensions (L × W × H) | 165 × 44 × 85 mm |
| Weight | 0.5 kg |
| Protection Rating | IP20 |
| Digital Input | 24 VDC |
| Digital Output | 24 VDC, 0.5 A |
| Relay Output | 250 VAC, 5 A |
| LED Indicators | Power, Fault, Status |
| Communication Protocol | Modbus RTU |
| Country of Origin | Estonia |
| Application Areas | Industrial automation, motion control, HMI systems, fieldbus I/O |
FAQs
Q1: What is the output voltage and current of the IPS21-35AD?
✅ The ABB IPS21-35AD provides 24 VDC output at 35 A.
Q2: What is the operating temperature range?
✅ It operates reliably from –25°C to +70°C.
Q3: Does the module include isolation for safety?
✅ Yes, it provides 4 kV galvanic isolation for secure industrial operation.
Q4: Which communication protocols are supported?
✅ The module supports Modbus RTU for integration with automation systems.
Q5: Is the IPS21-35AD suitable for harsh environments?
✅ Yes, it features IP20 protection, modular design, and wide temperature tolerance.
