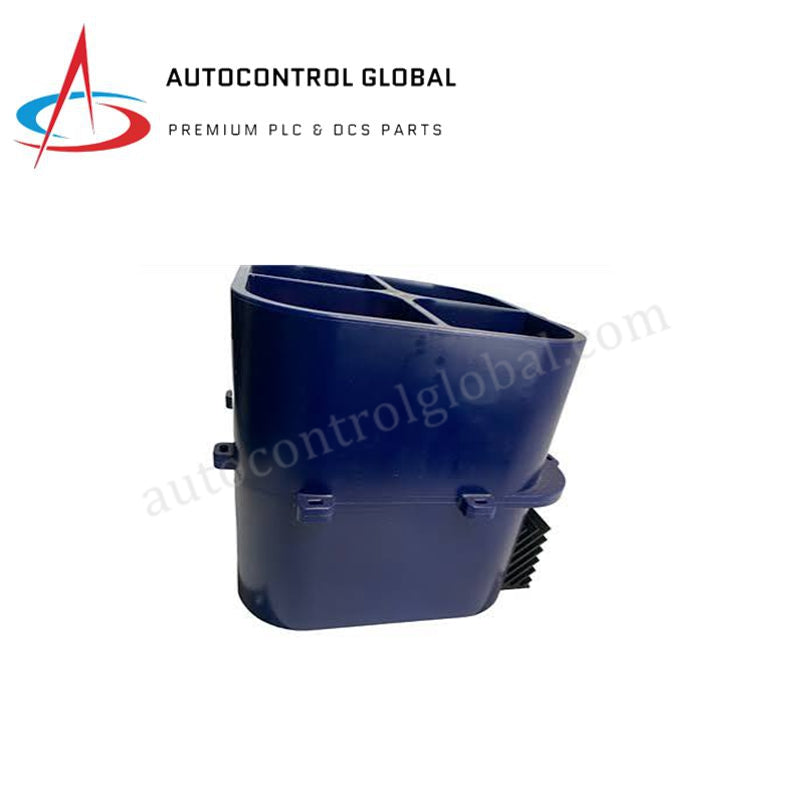

3BHB017688R0001 IPS21-35AD ABB Medium Voltage Drive Module
Manufacturer: ABB
-
Part Number: 3BHB017688R0001
Condition：New with Original Package
Product Type: Power Supply Modules
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB 3BHB017688R0001 Isolated Power Supply Module
The ABB 3BHB017688R0001 (IPS21-35AD) is an isolated power supply module engineered for power conversion and electrical isolation within industrial automation systems and ABB medium-voltage drives such as the ACS 5000. It converts supply voltage into stable auxiliary power for internal drive components and control circuits while delivering galvanic isolation to protect connected equipment from line disturbances.
Functional Integration and Application
Designed primarily for panel mounting within medium-voltage drive cabinets, the module acts as a critical auxiliary power source. Its isolated output architecture safeguards sensitive control circuits against noise, power spikes, and potential earth loops. The unit also incorporates a fiber-optic status signal line to communicate diagnostic feedback to the main drive controller.
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model Designation | IPS21-35AD |
| Part Number | 3BHB017688R0001 |
| Product Type | Isolated Power Supply Module |
| Target Systems | ABB ACS 5000 Medium-Voltage Drives |
| Input Voltage | 230 VAC / 280 VDC |
| Output Voltage | 30–40 VDC/AC |
| Output Current | 10 A |
| Maximum Continuous Output Power (All Channels) | 280 W |
| Maximum Continuous Output Power (Single Channel) | 140 W |
| Short-Circuit Current | 6 A |
| Diagnostics / Signaling | Fiber-Optic Status Signal |
| Mounting Type | Panel Mounting |
| Dimensions (W × H × L) | 170 × 165 × 200 mm |
| Gross Weight | 5.5 kg |
Frequently Asked Questions
Q: What primary application is the ABB 3BHB017688R0001 designed for? A: It is designed as an isolated auxiliary power supply module for ABB medium-voltage drives, including the ACS 5000 series.
Q: What is the maximum continuous output power capacity of this unit? A: The module supports up to 280 W total continuous output power across all channels, with a maximum of 140 W on a single channel.
