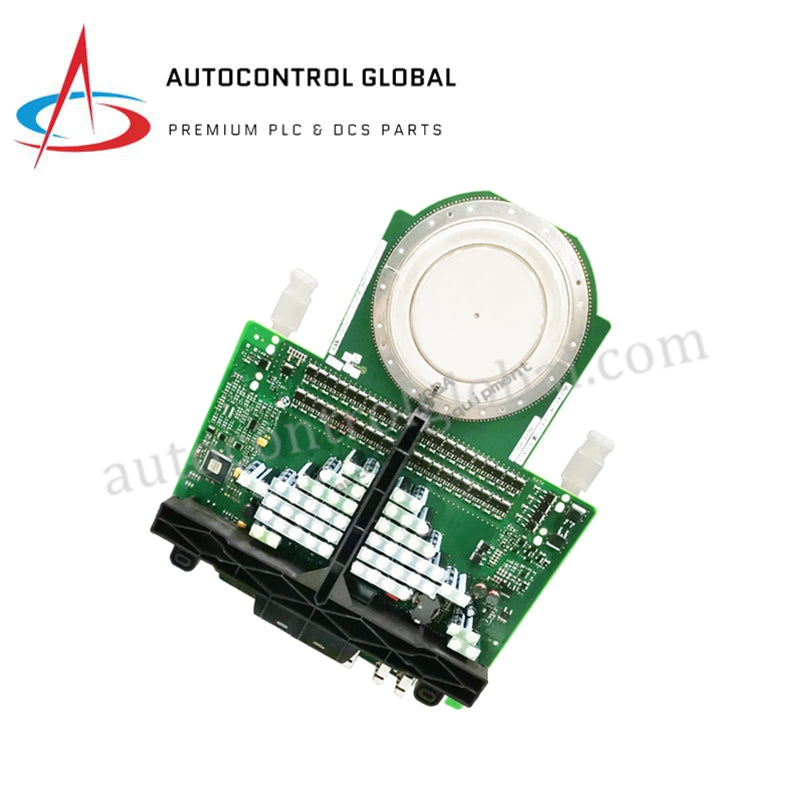

3BHL000986P0006 ABB ACS800 ACS880 Power Conversion Module
Manufacturer: ABB
-
Part Number: 3BHL000986P0006
Condition：New with Original Package
Product Type: Drive Control Modules
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB 3BHL000986P0006 Control Module
The ABB 3BHL000986P0006 is a compact power conversion and control module engineered for ABB ACS800 and ACS880 series industrial drives. It performs AC-to-DC conversion to feed the inverter stage, enabling accurate variable-frequency speed control for electric motor applications.
Material Construction and Noise Suppression
Constructed with self-healing metalized polypropylene film components, the module maintains long-term dielectric performance under continuous electrical stress. Its internal filter design blocks high-frequency electrical interference, shielding sensitive control electronics against noise-induced operational faults.
System Integration and Form Factor
Featuring an enclosure footprint of 130 × 80 × 50 mm, the module allows straightforward replacement and integration within compact drive cabinets. Integrated fault detection and communication circuitry continuously monitor module parameters to maintain drive system reliability.
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | 3BHL000986P0006 |
| Product Type | Power Conversion / Control Module |
| Drive Compatibility | ABB ACS800 Series, ACS880 Series |
| Primary Function | AC to DC power conversion for inverter stage |
| Dielectric Material | Self-healing metalized polypropylene film |
| Interference Protection | High-frequency noise suppression |
| Dimensions (L × W × H) | 130 × 80 × 50 mm |
| Net Weight | 0.45–1.55 kg |
Frequently Asked Questions
Q: What primary function does the ABB 3BHL000986P0006 perform in drive systems? A: It converts incoming AC power into DC to feed the inverter stage in ABB ACS800 and ACS880 series variable speed drives.
Q: How does the module shield connected electronics from electrical noise? A: It incorporates high-frequency noise suppression circuitry along with self-healing metalized polypropylene film construction to filter interference and stabilize signal lines.
