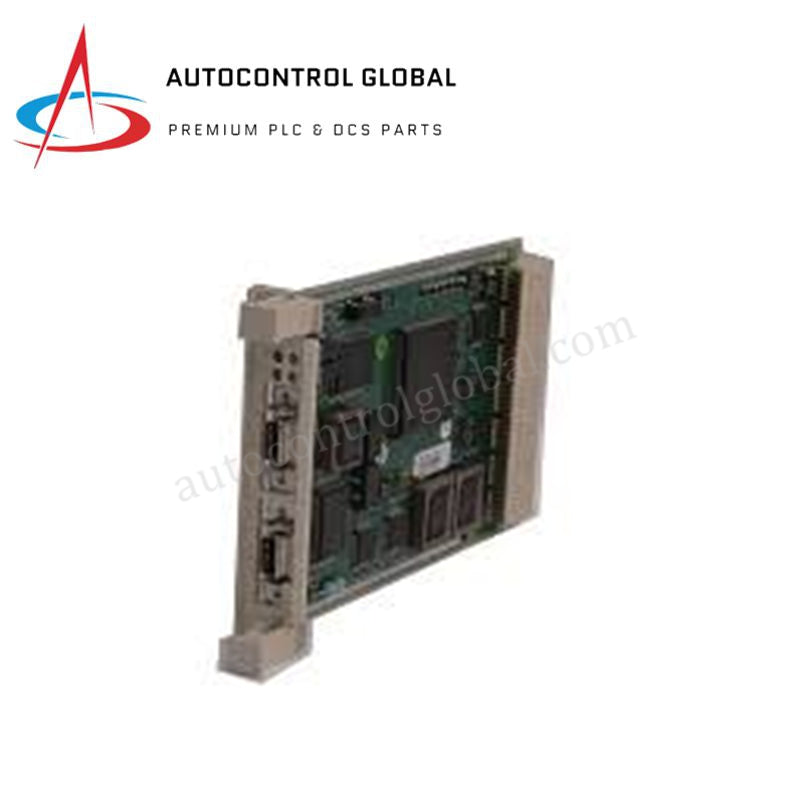

3BSE008358R1 | ABB | PM510V16 Advant Controller CPU

Product Overview

The PM510V16 (3BSE008358R1) is a high-performance central processing unit designed for the ABB Advant Controller 400 series (AC 400). As a 16 MByte processor module, it serves as the primary logic hub for Advant Master process control systems, facilitating high-speed data processing, complex control loops, and deterministic communication. The unit includes a specialized memory module SIMM configuration (2 pcs 3BSC120004E6) and is engineered for maximum reliability in power distribution, substation automation, and critical industrial applications. Its robust Sweden-manufactured hardware ensures high accuracy in electrical measurements and real-time monitoring of voltage, current, and harmonics when integrated with compatible ABB protection and automation platforms.

Detailed Technical Specifications

• Manufacturer: ABB

• Model Designation: PM510V16

• Part Number: 3BSE008358R1

• Exchange Number: EXC3BSE008258R1

• Processor Series: Advant Controller 400 / PM500 Series

• Memory Capacity: 16 MByte (Total via 2x 3BSC120004E6 SIMM modules)

• Configurability: Hardware switches allow scaling from 16 MB to 8 MB if required

• Measured Parameters: High-precision voltage, current, frequency, active/reactive power, harmonics

• Accuracy Class: Class 0.2 (Typical for processed measurement data)

• Communication Support: Modbus, Profibus, and ABB proprietary AF100 links

• Operating Temperature: -20°C to +60°C (-4°F to +140°F)

• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

• Net Dimensions: 261 mm (W) × 22.5 mm (H) × 477 mm (D)

• Net Weight: 0.875 kg

• Country of Manufacture: Sweden

• Ingress Protection: IP20

• HS Code: 853890 (Parts for electrical apparatus)

• Compliance: CE, UL, RoHS (Directive 2011/65/EU)
