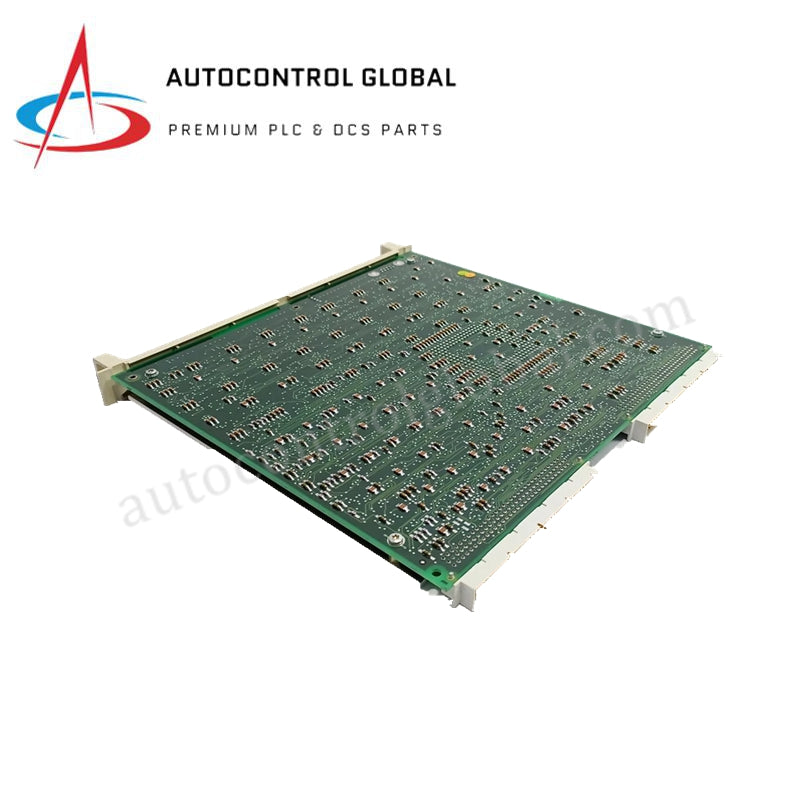

3HAB2241-1 | DSQC325 | ABB Robot Controller Computer Unit

Product Description

The DSQC325 (Part Number: 3HAB2241-1) is a specialized computer interface and control board developed for the ABB S4C and S4C+ robot controller systems. This module serves as a critical communication node, managing the bidirectional flow of digital and analog signals between the central processing unit and various external automation peripherals. The DSQC325 (3HAB2241-1) is engineered to ensure high-speed signal processing, which is essential for maintaining the deterministic performance required in precision robotic motion control.

Constructed for long-term reliability in heavy industrial environments, the DSQC325 (Model: DSQC325) features an optimized circuit layout to minimize signal interference and heat generation. Its modular architecture allows it to be easily integrated into the S4C controller subrack, providing a scalable solution for adding I/O capabilities or communication channels. As a legacy component, the DSQC325 (3HAB2241-1) is vital for the continued operation and maintenance of existing ABB robot installations in sectors such as automotive manufacturing, metal fabrication, and palletizing.

Technical Specifications

The DSQC325 (3HAB2241-1) adheres to the following technical parameters for industrial robotics:

• Manufacturer: ABB Robotics

• Model Number: DSQC325 (DSQC325)

• Product ID: 3HAB2241-1 (3HAB2241-1)

• Type: Computer Board / Robot Interface Module

• System Compatibility: ABB S4C, S4C+ Robot Controllers

• Power Supply: 24V DC (Internal bus powered)

• Signal Processing: High-density Digital and Analog I/O

• Communication Ports: Integrated proprietary bus interfaces

• Dimensions: 13.0 cm x 1.9 cm x 19.1 cm

• Net Weight: 0.2 kg

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: -20 °C to +70 °C

• Customs Tariff Number: 85389000

• Origin: USA / Sweden (Batch specific)
