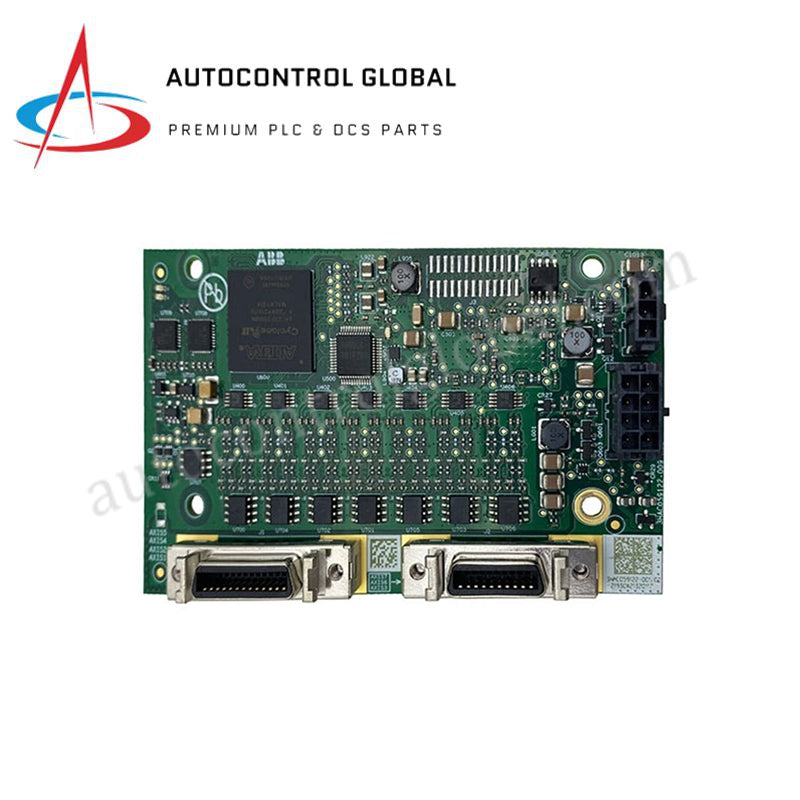

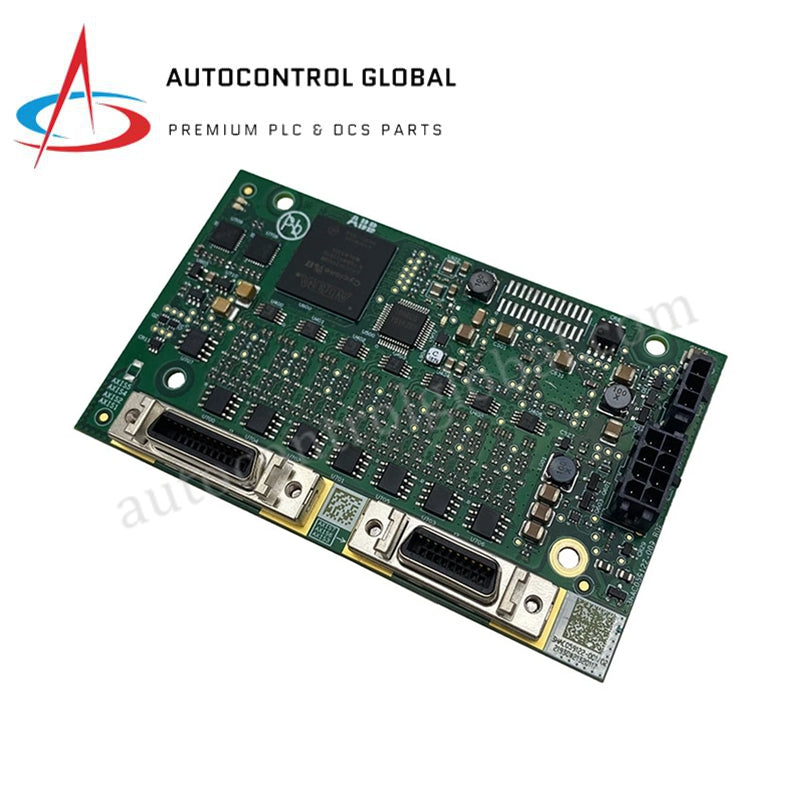

3HAC063968-001 | DSQC3026 | ABB Robot Measurement Module

Product Description

The DSQC3026 (Part Number: 3HAC063968-001/01) is a high-precision Serial Measurement Board (SMB) specifically engineered for the ABB IRB 1200 and modern IRC5 controller systems. This module serves as the primary data acquisition interface for resolver feedback, capturing the exact position of the robot's motor shafts and transmitting this data to the main controller. By utilizing a high-speed serial bus, the DSQC3026 (3HAC063968-001) ensures that the robotic arm maintains its calibration and path accuracy during high-speed industrial operations.

Technically, the DSQC3026 (Model: DSQC3026) is built with ultra-low-profile SMT (Surface Mount Technology), making it exceptionally compact and resistant to high-vibration robotic environments. It features integrated battery-backed memory to store revolution counter data, preventing the robot from losing its position during a power-off state. This board is essential for maintaining the sub-millimeter precision required in electronics assembly, material handling, and precise palletizing tasks.

Detailed Technical Specifications

The DSQC3026 (3HAC063968-001) is defined by its compact architecture and high signal fidelity:

• Manufacturer: ABB Robotics

• Model Name: DSQC3026 (DSQC3026)

• Order ID: 3HAC063968-001 / 3HAC059122-001

• Function: Serial Measurement Board (SMB)

• Signal Input: Multichannel resolver feedback

• Communication Interface: High-speed serial link (RS485/Ethernet compatible protocols)

• Robot Compatibility: ABB IRB 1200, IRB 14000 (YuMi), and IRC5 compact series

• Input Voltage: 24V DC

• Memory: Integrated 256KB non-volatile revolution counter storage

• Operational Temperature: -40°C to +70°C (Extended industrial range)

• Product Net Weight: 0.04 kg (Ultra-lightweight design)

• Product Dimensions: 100 mm x 60 mm x 15 mm

• Customs Tariff Number: 85389091

• Origin: China / Poland (Batch dependent)
