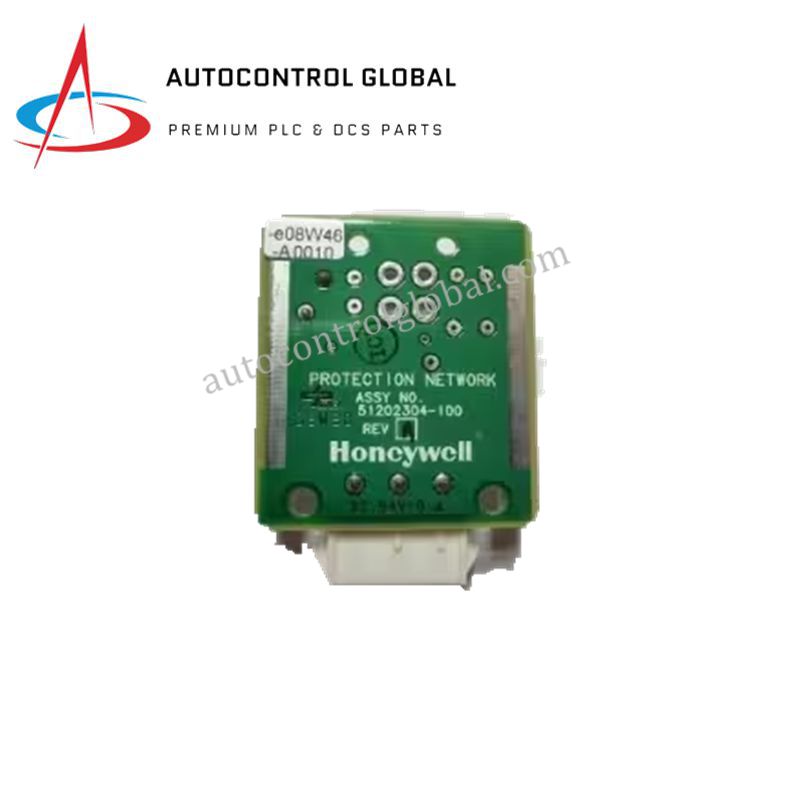

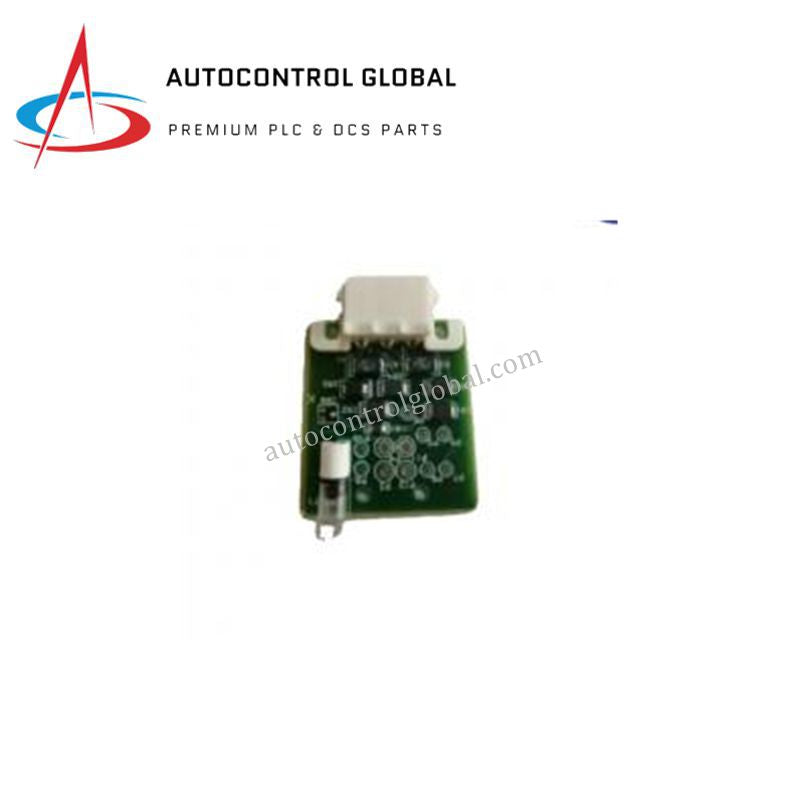

51202304-100 by Honeywell | Analog Input Board for TDC/Experion

Honeywell 51202304-100 Control / Analog Input Module — Product Description

Overview

The Honeywell 51202304-100 is a control and analog input module used across the DCS architecture in demanding industrial environments. Each module helps plants manage essential field signals with stable conversion and reliable isolation. Moreover, its robust design supports continuous operation, even when temperature or humidity levels fluctuate significantly. The module integrates smoothly with legacy TDC 3000 systems and modern Experion PKS platforms, ensuring long-term system continuity for critical processes.

Technical Specifications

Model Number: 51202304-100
Type: Control / Analog Input Module
System Compatibility: Honeywell DCS (TDC 3000 / Experion PKS)
Function: Interfaces analog signals from field devices to the controller
Input Types: Analog voltage/current (depending on configuration)
Resolution: 12-bit A/D conversion
Accuracy: ±0.1% of full scale
Power Supply: +5 VDC nominal
Operating Voltage: 5 VDC
Operating Temperature: 0 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Humidity Range: 5–95% RH, non-condensing
Dimensions: 22 × 12 × 6.5 cm
Weight: 200 g
Country of Origin: USA

FAQ

Q: Is the 51202304-100 compatible with existing Honeywell DCS systems?
Yes, it integrates with TDC 3000 and Experion PKS architectures without requiring major system changes.

Q: What types of analog inputs does the module support?
It handles standard industrial voltage or current signals, depending on system configuration.

Q: Can it operate in harsh environments?
Yes, the module tolerates wide temperature ranges and high humidity, supporting continuous plant operations.

Q: Is calibration required after installation?
Most systems operate correctly after installation, although periodic calibration ensures long-term accuracy.

Q: How long is the standard warranty?
Honeywell provides a 12-month warranty for this module.
