51204162-175 | Honeywell | MC-TDOY22 32-Channel Output

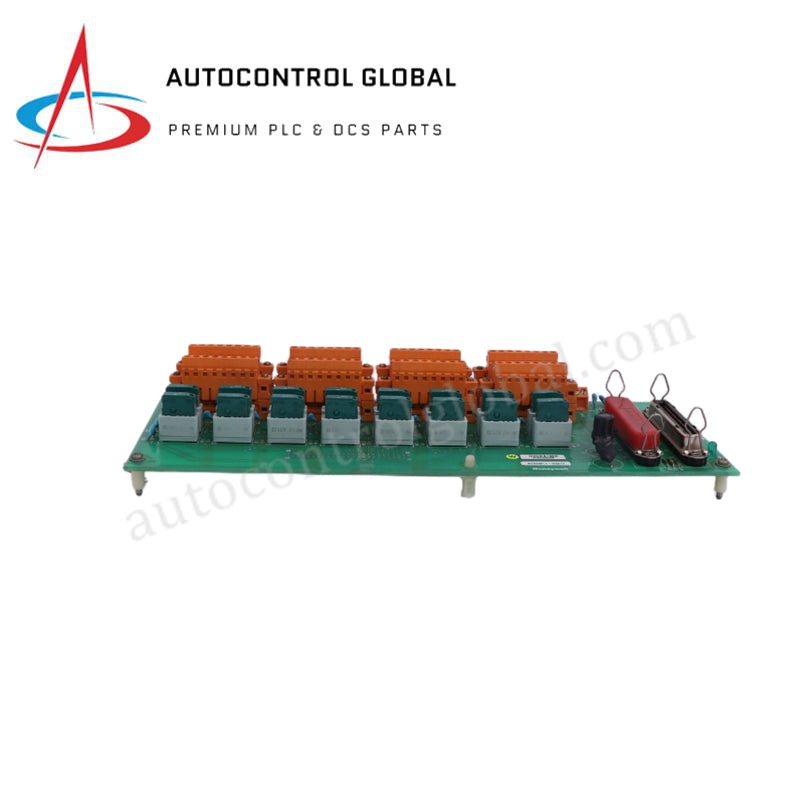

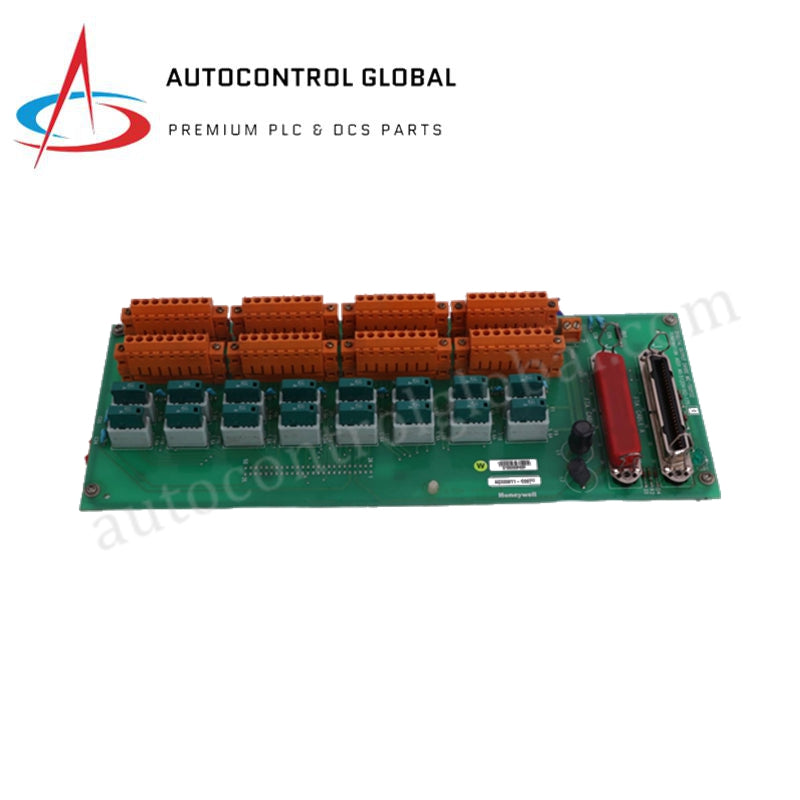

Honeywell MC-TDOY22 51204162-175 Digital Output Field Termination Assembly

Product Description

The MC-TDOY22 (51204162-175) is a high-density Digital Output Field Termination Assembly (FTA) specifically designed for the Honeywell Experion PKS and TDC 3000 Distributed Control Systems (DCS). This module serves as the critical physical interface between the system's digital output cards and the actual field devices, providing secure termination for up to 32 discrete output channels.

Engineered for reliability in process automation, the MC-TDOY22 (51204162-175) facilitates the control of field elements such as solenoid valves, relays, and motor starters. This FTA is designed to streamline cabinet wiring, offering organized terminal blocks for easy installation and maintenance. By centralizing field connections, it minimizes wiring errors and provides a robust hardware platform for 24 VDC signal distribution in demanding industrial environments.

Detailed Technical Specifications

The following hardware specifications define the electrical and physical parameters for the MC-TDOY22:

• Manufacturer: Honeywell

• Model Number: MC-TDOY22

• Part Number: 51204162-175

• Product Type: Digital Output Field Termination Assembly (FTA)

• Number of Channels: 32 Discrete Digital Outputs

• Operating Voltage: 24 VDC (Nominal)

• Channel Configuration: Non-Redundant (Single I/O Link Connection)

• System Compatibility: Honeywell Experion PKS, TPS, TDC 3000

• Termination Style: Screw-type terminal blocks for field wiring

• Internal Protection: Overcurrent protection per channel (varies by revision)

• Mounting: Vertical or horizontal mounting on standard FTA carrier rails

• Dimensions: Optimized for standard Honeywell system cabinets

• Net Weight: 1.0 kg

• Shipping Weight: 4.0 kg

• Warranty: 12 Months
