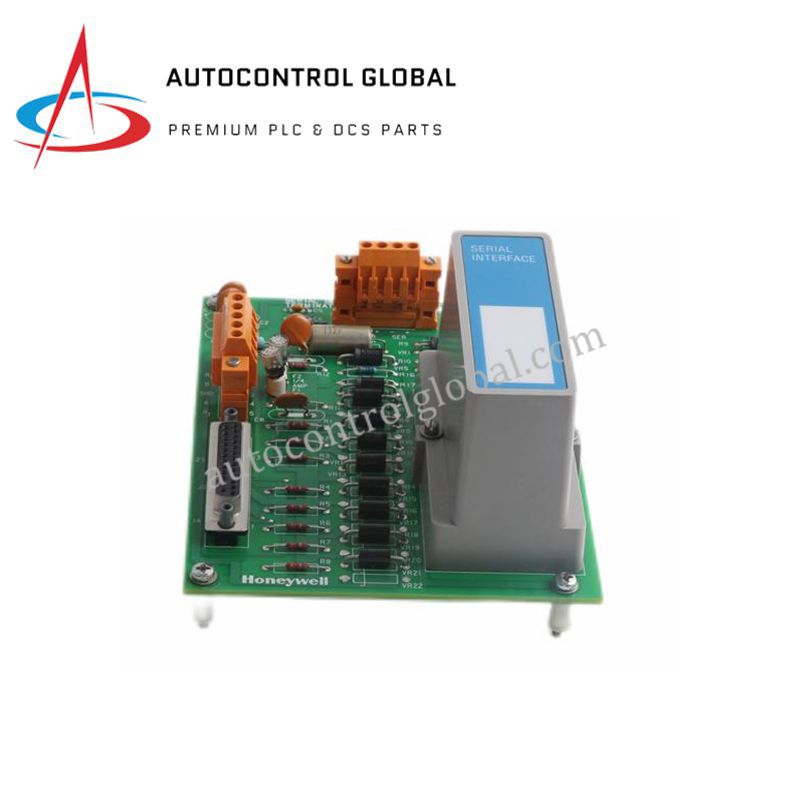

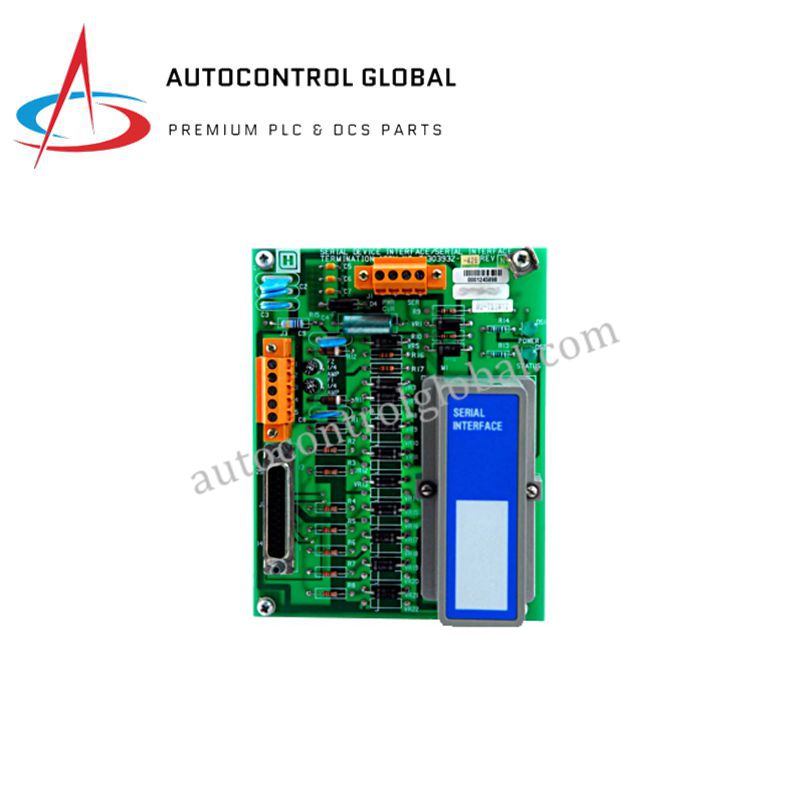

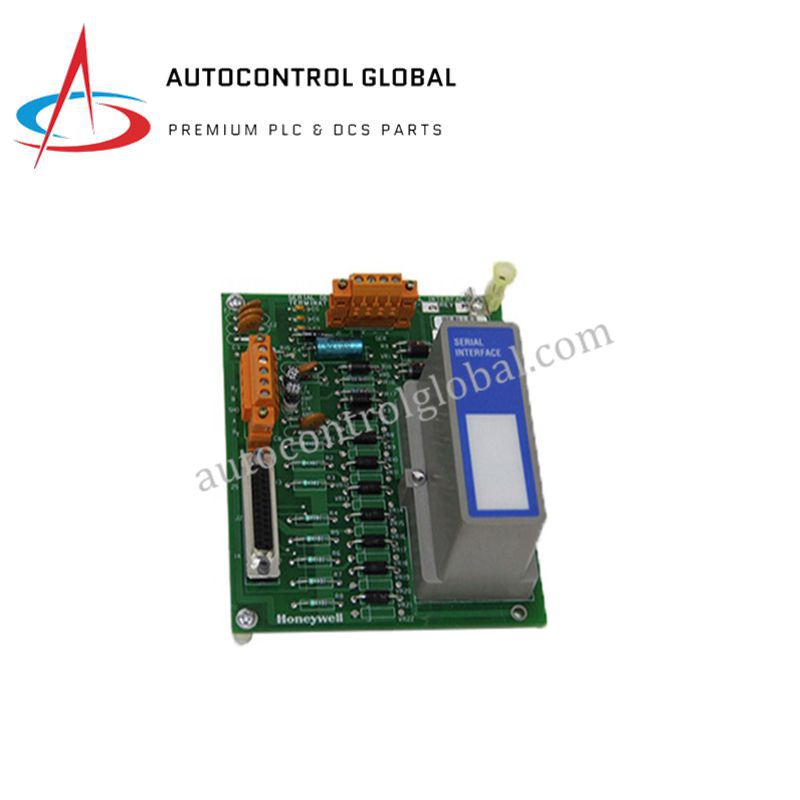

51303932-476 | Honeywell RS‑232/422/485 Serial Interface FTA
Manufacturer: Honeywell
-
Part Number: 51303932-476
Condition：New with Original Package
Product Type: RS‑232/422/485 Serial Interface FTA
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The HONEYWELL 51303932-476 (also referenced as MC‑TSIM12) is a Serial Device Interface Field Termination Assembly (FTA) designed for Honeywell I/O and controller systems. It enables Modbus RTU serial communication using either RS‑232 or RS‑422/485 interfaces. The module comes conformal-coated for industrial protection and is CE compliant, suitable for harsh environments. The firmware is factory-loaded and preconfigured for the associated I/O processor and interface type, enabling seamless integration with field devices and host systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 51303932-476 |
| Alternate Model | MC‑TSIM12 |
| Type | Serial Device Interface Field Termination Assembly (FTA) |
| Communication Protocol | Modbus RTU |
| Serial Interfaces | RS‑232 (EIA‑232), RS‑422/485 (EIA‑422/485) |
| Connector | DB‑25 device connector (J2) for external serial link |
| RS‑232 Cable Length | Recommended ≤15 m (50 ft) to maintain signal integrity |
| Signal Levels | Standard asynchronous for RS‑232; differential for RS‑422/485 |
| Firmware | Factory-loaded and preconfigured; supports Modbus slave/master |
| Protection | Conformal coating for moisture, dust, and industrial contaminants |
| Compliance | CE marked (EEA) |
| Mounting | Plug-in module for Honeywell I/O systems |
| Applications | Modbus communication, field I/O linking, industrial automation |
| Manufacturer | Honeywell |
| Origin | USA |
FAQ
Q1: Is the 51303932-476 module brand new?
A1: Yes, the Honeywell 51303932-476 is full OEM, original, and brand-new.
Q2: Which serial interfaces are supported by this FTA?
A2: It supports RS‑232, RS‑422, and RS‑485 asynchronous serial interfaces.
Q3: Can this module operate in harsh industrial environments?
A3: Yes, the MC‑TSIM12 is conformal-coated for moisture, dust, and contaminants.
Q4: Is the firmware preloaded on the module?
A4: Yes, the firmware is factory-loaded and preconfigured for the associated I/O processor.
Q5: What is the recommended RS‑232 cable length?
A5: RS‑232 cables should not exceed 15 m (50 ft) to maintain signal integrity.
