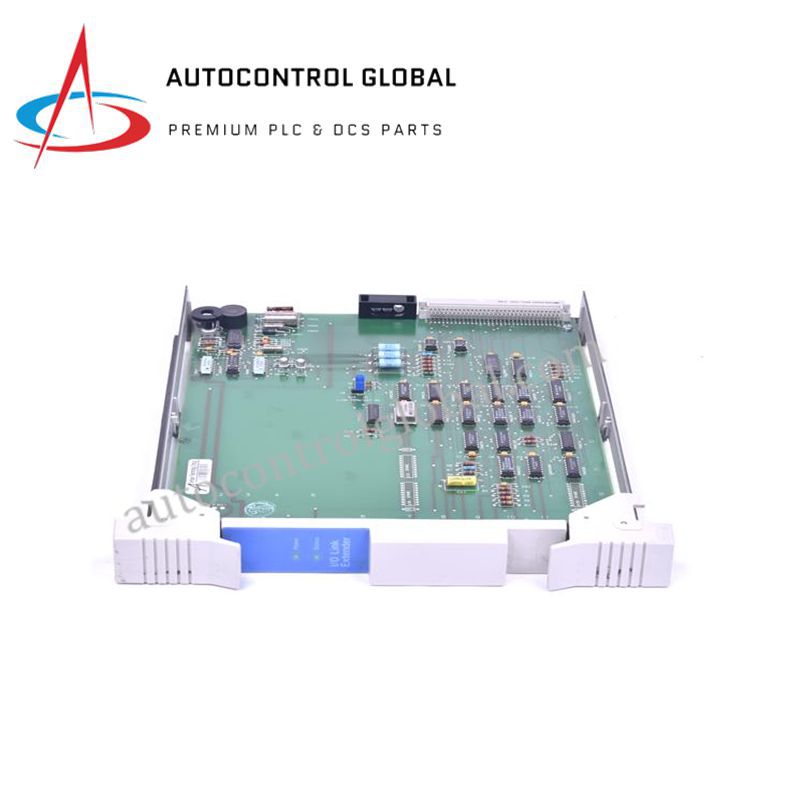

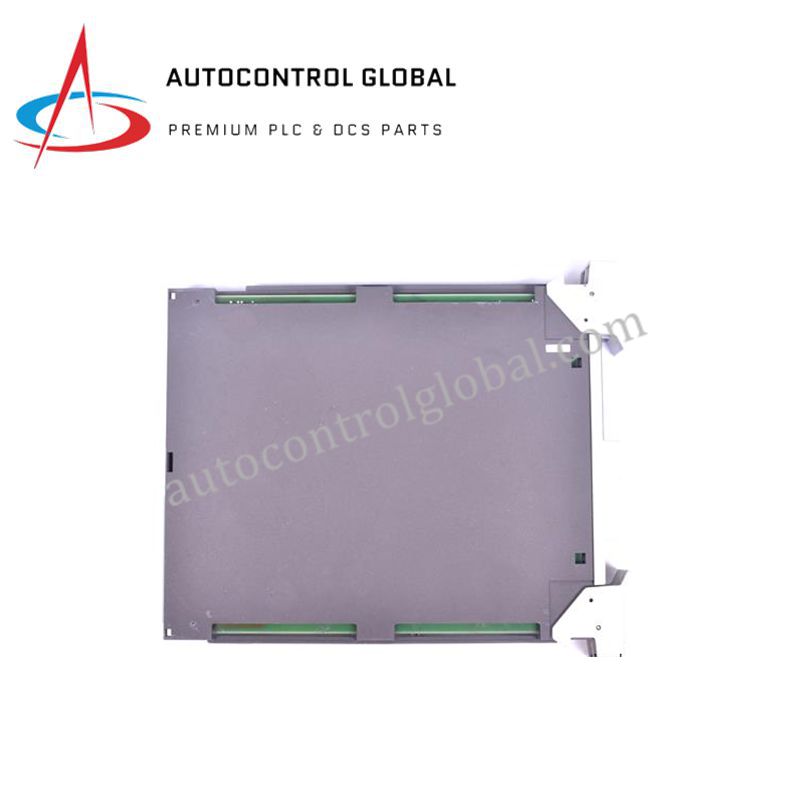

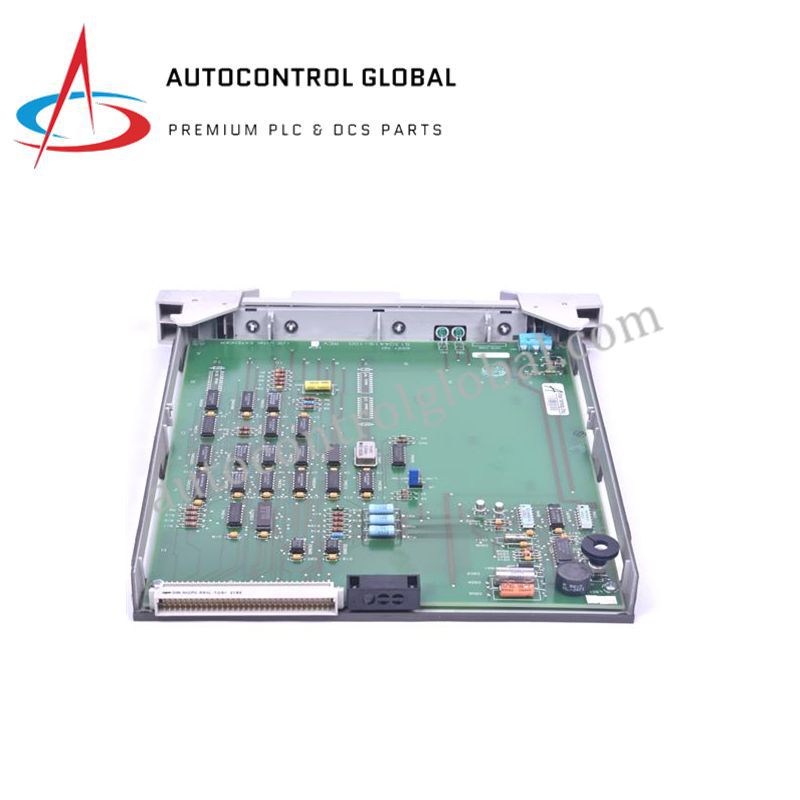

51304418-100 | Honeywell Industrial Analog Multiplexer Board
Manufacturer: Honeywell
-
Part Number: 51304418-100
Condition：New with Original Package
Product Type: Industrial Analog Multiplexer Board
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The HONEYWELL 51304418-100, also known as MC-TAMT04, is a high-performance Analog Multiplexer Termination Module for Honeywell TDC 3000 and Experion PKS distributed control systems. It efficiently terminates, conditions, and routes multiple analog input signals, consolidating them for high-density analog input applications.
This module is engineered for industrial reliability, offering up to 16 analog input channels. It supports a variety of input types, including 4–20 mA current loops, 0–10 V voltage signals, thermocouples, and RTDs with proper signal conditioning. The module features high input impedance to minimize signal loading and provides channel-to-channel and channel-to-system isolation for noise immunity. Its plug-in design with keyed connectors ensures secure installation, while the conformal coating protects against moisture, dust, and corrosive atmospheres.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 51304418-100 |
| Alternate Part Number | MC-TAMT04 |
| Type | Analog Multiplexer Termination Module |
| Channel Capacity | Up to 16 analog input channels |
| Input Signal Types | 4–20 mA, 0–10 V, thermocouples, RTDs (with conditioning) |
| Input Impedance | High impedance to minimize signal loading |
| Accuracy | ±0.1% of full scale (typical) |
| Isolation | Channel-to-channel and channel-to-system for noise immunity |
| Mounting | Plug-in module for Honeywell I/O chassis or termination assembly; keyed connectors |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Humidity | 5%–95% RH, non-condensing |
| Conformal Coating | Yes — protects against moisture, dust, and corrosive environments |
| Compliance | CE marked; meets industrial EMC and safety standards |
| Weight | 1.43 lbs |
FAQ
Q1: How many analog channels does the 51304418-100 support?
A1: It typically supports up to 16 analog input channels for flexible system integration.
Q2: Which input signal types are compatible?
A2: The module supports 4–20 mA, 0–10 V, thermocouples, and RTDs with proper signal conditioning.
Q3: Does this module provide isolation for signal integrity?
A3: Yes, it features channel-to-channel and channel-to-system isolation for noise immunity.
Q4: Can it operate in harsh industrial conditions?
A4: Yes, the conformal coating ensures protection against moisture, dust, and corrosive atmospheres.
Q5: How is the module installed?
A5: It uses a plug-in design with keyed connectors for secure and error-free installation into Honeywell I/O chassis.
Q6: What are the delivery and warranty options?
A6: The unit is brand-new original, stocked, shipped 3–14 days via DHL, and supports a 30-day return policy for quality issues.
