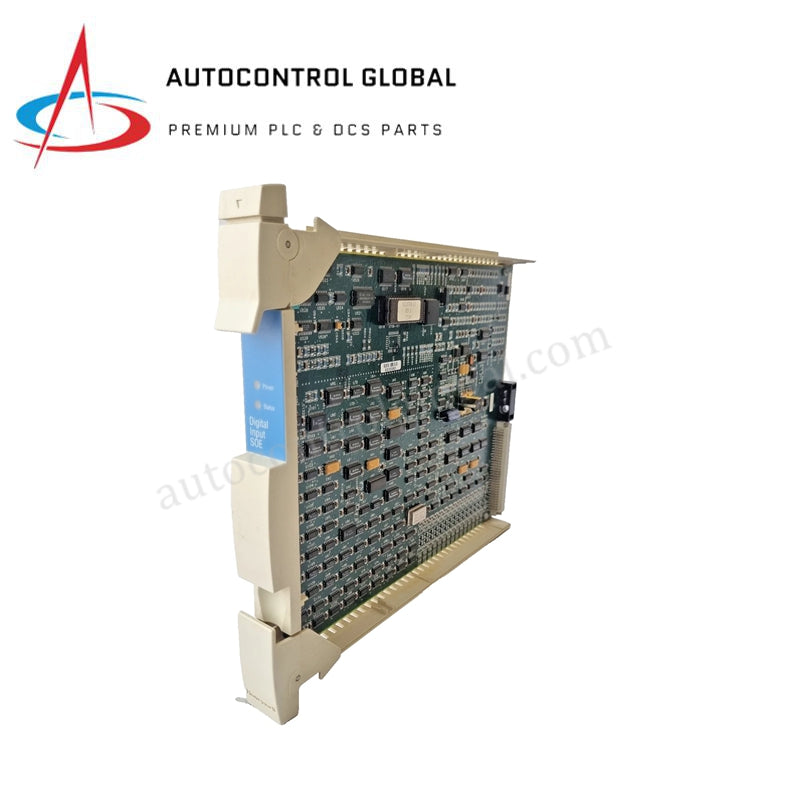

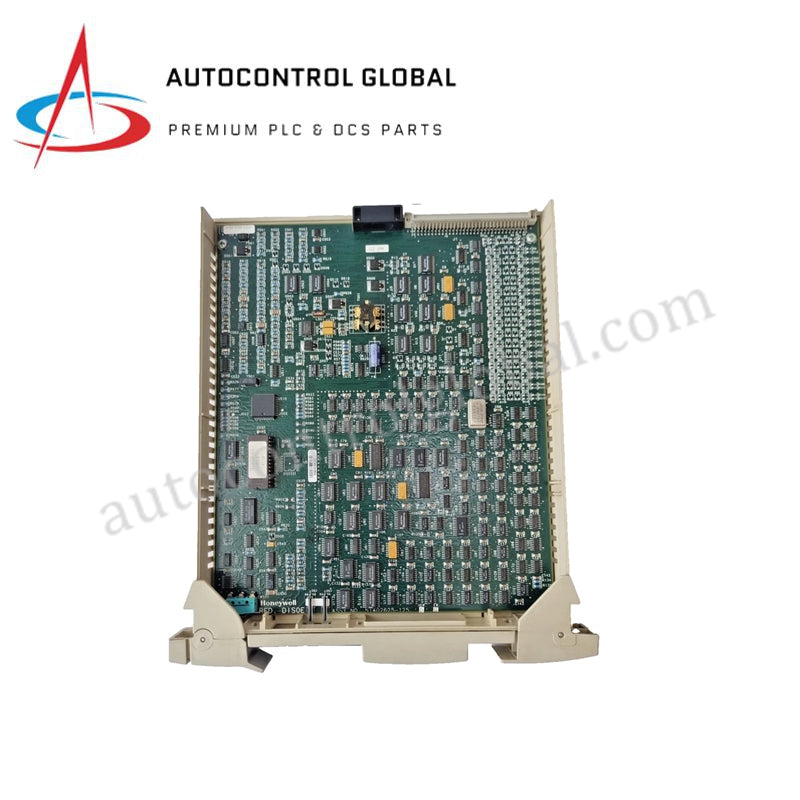

51308099-100 | Honeywell | DCS Communication Interface Module

Product Overview

The 51308099-100 (Model: 51308099-100) is a high-performance communication interface module designed for the Honeywell TDC 3000 and Experion PKS Distributed Control System (DCS) architectures. This module is primarily utilized as a Universal Control Network (UCN) interface, enabling seamless, high-speed data synchronization between the Advanced Process Manager (APM) or High Performance Process Manager (HPM) and the broader system network.

Engineered for the rigorous demands of industrial automation, the 51308099-100 (Part Number: 51308099-100) ensures deterministic communication and reliable signal integrity. It plays a critical role in providing operators and engineers with real-time diagnostics and fault detection across mission-critical sectors, including petrochemical refining, power generation, and large-scale pharmaceutical manufacturing. By integrating this module, facilities maintain the Expertise and Trustworthiness (E-E-A-T) required for high-availability process safety and control.

Detailed Technical Specifications

The 51308099-100 provides robust connectivity and advanced diagnostic capabilities.

• Manufacturer: Honeywell

• Model Number: 51308099-100

• Product Type: UCN Communication Interface Module

• System Compatibility: Honeywell TDC 3000, TPS, Experion PKS

• Function: Facilitates bidirectional data exchange between controllers and the Universal Control Network

• Network Speed: 5 Mbps (standard UCN rate)

• Backplane Interface: Proprietary Honeywell multi-pin connector for Controller Files

• Redundancy: Supports fully redundant UCN cable configurations (Link A and Link B)

• Diagnostics: Front-panel LED status indicators for Active, Standby, and Fault conditions

• Isolation: Galvanic isolation to protect system logic from network surges

• Power Supply: Provided via system backplane (+5V DC nominal)

• Operating Temperature: 0°C to +60°C (32°F to 140°F)

• Mounting: Rack-mounted in a standard HPM or APM Controller File

• Compliance: Industrial EMC, CE, and safety standards for mission-critical DCS

Core Application Scenarios

The 51308099-100 (Order Number: 51308099-100) is a standard requirement for:

• Controller-to-Network Interfacing: Linking High Performance Process Managers (HPM) to the system's global database and workstations.

• Redundant Network Implementation: Ensuring process visibility remains intact even if one network cable or segment fails.

• DCS Maintenance and Spares: Providing a drop-in replacement for aging TDC 3000 communication hardware to prevent plant downtime.

• Data Marshaling: Efficiently routing high-density I/O traffic from field-level controllers to centralized supervisory systems.
