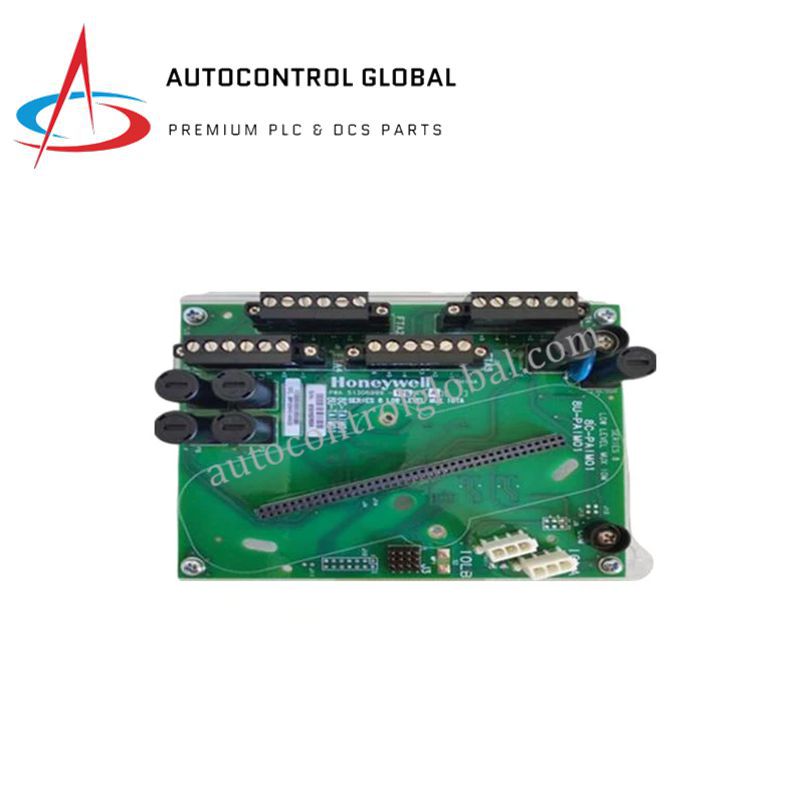

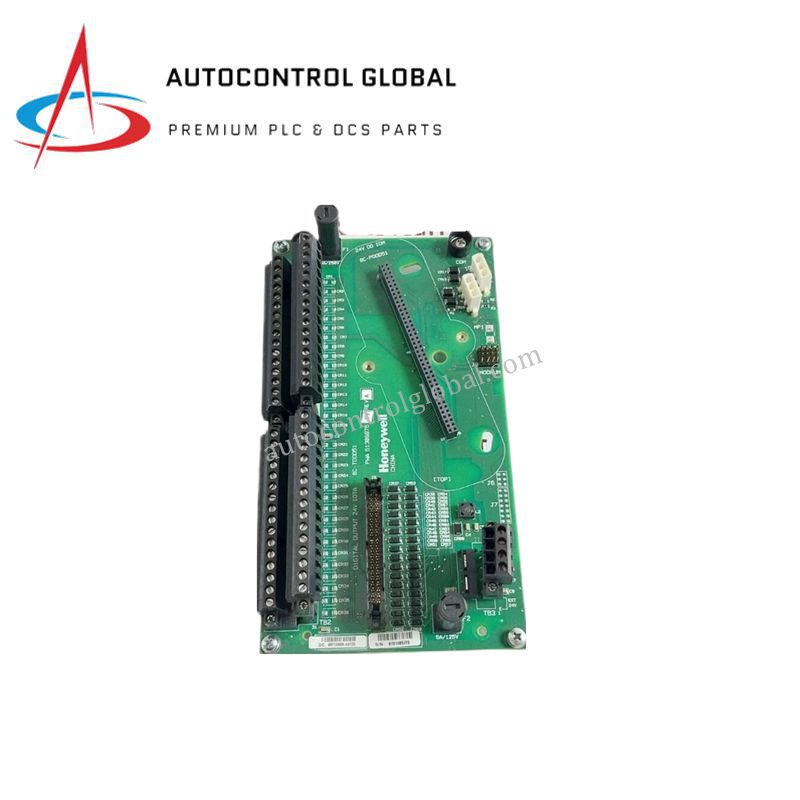

Product Description – Honeywell 5436100 Control System Board

The Honeywell 5436100 Control System Board is an industrial-grade relay and measurement interface designed for seamless integration into Honeywell QCS (Quality Control System) platforms. It enables precise signal acquisition, reliable relay switching, and effective system isolation, ensuring consistent operation in high-demand production environments.

Moreover, this board is ideal for precision thickness measurement systems, supporting continuous monitoring in paper, plastics, rubber, and metal processing lines. Its rugged construction withstands harsh conditions, including temperature fluctuations, vibration, and mechanical stress, providing long-term operational reliability.

In addition, the 5436100 meets multiple international certifications such as CE, ATEX, IECEx, and ISO, confirming its suitability for global industrial applications.

Technical Specifications

General Information

• Brand: Honeywell

• Model Number: 5436100

• Type: Control System Board / Relay Board

• System Compatibility: Honeywell QCS (Quality Control System)

• Country of Origin: USA

• Warranty: 12 months

Measurement & Performance

• Measurement Accuracy: ±2 mm (thickness gauge applications)

• Pressure Limit: Max 0.3 bar (4.4 psi)

• Tape Length Options: 15 m / 30 m / 35 m (metric or imperial)

• Resolution: 1 mm or 1/16 inch depending on scale

• Temperature Accuracy: ±0.1 °C (0–70 °C range)

Electrical & Display

• Power Supply: 9 V battery (portable configuration)

• Display: LCD, 8-character

• Signal Isolation: Yes, protects system integrity

Physical & Environmental

• Operating Temperature: –20 °C to +50 °C

• Sensor Range: –40 °C to +90 °C

• Weight: 1.4 kg

• Dimensions: Standard relay board form factor

• Certifications: CE, ATEX, IECEx, Factory Mutual, NEPSI, GOST, USCG, MSA

FAQ

Q1: What is the main function of the 5436100 board?
A: It provides relay switching, signal isolation, and supports thickness measurement systems.

Q2: Which systems is it compatible with?
A: It is fully compatible with Honeywell QCS (Quality Control System) platforms.

Q3: What is the measurement accuracy?
A: Approximately ±2 mm for thickness gauge applications.

Q4: Can it operate in harsh environments?
A: Yes, it is designed for industrial conditions with temperature and vibration tolerance.

Q5: What certifications does this board have?
A: CE, ATEX, IECEx, Factory Mutual, NEPSI, GOST, USCG, and MSA.
