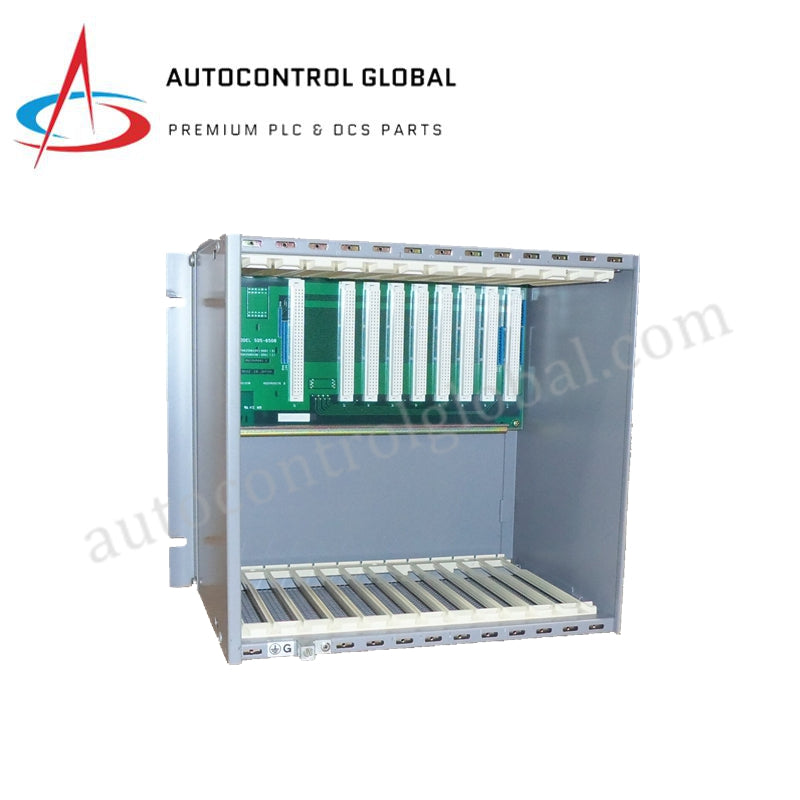

5453-759 Woodward Micronet-Plus 14-Slot Chassis Base Frame
Manufacturer: Woodward
-
Part Number: 5453-759
Condition：New with Original Package
Product Type: Chassis Enclosures
-
Country of Origin: GERMANY
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Woodward 5453-759 Micronet-Plus 14-Slot Chassis
Configured for high-density card interconnection and internal power distribution in Woodward Micronet Plus control platforms, the Woodward 5453-759 (5453-759 Chassis Base Frame) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5453-759 |
| Brand | Woodward |
| Origin | USA |
| Weight | 1.36 kg |
| Dimensions | 160 x 160 x 120 mm |
| Operating Temp | Standard industrial operating range |
| Power Consumption | Distributed regulated 24 VDC backplane power |
| Card Slot Capacity | 14 module slots |
| Construction Material | Rugged industrial metal frame |
| Internal Interconnect | High-speed backplane bus for CPU, I/O, and communication cards |
| Compliance Certifications | CE, COO |
Actuator Loop Feedback Response and Thermal Dissipation Profiles
The backplane structure handles deterministically prioritized traffic among control cards, maintaining rapid actuator loop feedback response across all 14 slot positions. High-conductivity metal channels provide structured thermal heat sink dissipation profiles, preventing localized hot spots when processing high-density I/O switching loads. Integrated bus lines maintain stable voltage rails under transient current draws during high-speed speed governing and fuel valve positioning operations.
Frequently Asked Questions
Q: How does the backplane assign slot addressing and power distribution across installed cards?
A: The internal bus architecture distributes regulated 24 VDC power rails directly to each of the 14 slots while maintaining dedicated address pathways for high-speed processing.
Q: What grounding steps preserve signal integrity across the backplane during module hot-swapping?
A: Mechanical slot guides establish chassis grounding prior to pin contact engagement, suppressing electrical noise and voltage transients during live module insertion.
Q: Does the frame structure accommodate external cable strain relief?
A: The industrial metal enclosure provides mounting points for wiring conduits to prevent mechanical stress on slot-mounted field termination blocks.
Field Installation Guidelines
Mount the chassis frame onto a rigid vertical surface inside the enclosure using standard hardware to eliminate vibration-induced connector displacement. Field engineers must terminate a dedicated heavy-gauge grounding strap from the main chassis ground stud directly to the system earth bus bar. Run all incoming field signal wiring through separate cable trays from high-voltage AC lines to prevent inductive coupling across backplane traces. Ensure at least 100 mm of clearance above and below the chassis assembly so ambient air circulates across module heat dissipation surfaces without obstruction.
