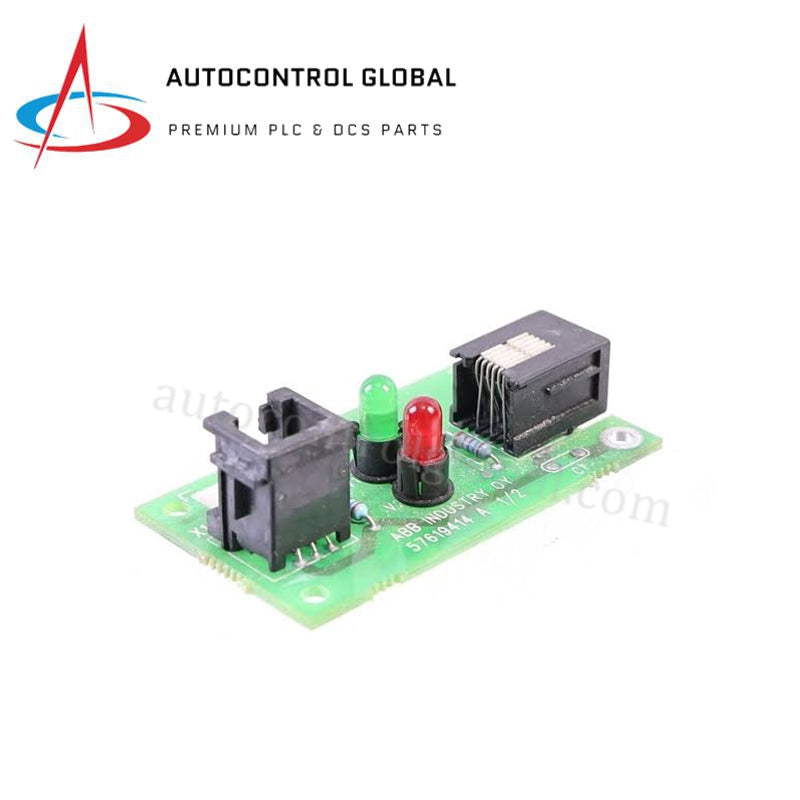

57619414 ABB IRB 5400 LED Data Adapter Power Control Board
Manufacturer: ABB
-
Part Number: 57619414
Condition：New with Original Package
Product Type: Bus Interface Modules
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB 57619414 LED Data Adapter Module
The ABB 57619414 is an LED data adapter and power signal control module engineered for industrial automation platforms and ABB FlexPainter IRB 5400 robotic painting systems. It handles analog-to-digital signal conversion, signal isolation, and internal power distribution to ensure consistent signal transmission across automated robotic equipment.
Electrical and Signal Conversion Characteristics
The module operates on a nominal 24 VDC supply voltage with an input current of 20 mA. It provides isolated 0-10 VDC output signals with output current capacity up to 5 A, supporting isolation protection up to 2500 Vrms to shield logic components against electrical noise and ground loops in high-interference operating environments.
Mechanical and Environmental Specifications
Enclosed in a compact housing measuring 100 mm x 60 mm x 25 mm with a net weight of 100 g, the module carries an IP20 ingress protection rating. It is rated for operation across an ambient temperature range from -20 deg C to +70 deg C and relative humidity levels from 0% to 95% RH (non-condensing).
| Parameter | Specification |
|---|---|
| Model | 57619414 |
| Brand | ABB |
| Product Type | LED Data Adapter / Power Signal Control Module |
| Application Compatibility | ABB FlexPainter IRB 5400 Series Robots |
| Input Voltage | 24 VDC |
| Input Current | 20 mA |
| Output Voltage | 0-10 VDC |
| Output Current | Up to 5 A |
| Isolation Voltage | Up to 2500 Vrms |
| Operating Temperature | -20 deg C to +70 deg C |
| Storage Temperature | -40 deg C to +85 deg C |
| Relative Humidity | 0% to 95% RH (non-condensing) |
| Protection Class | IP20 |
| Dimensions (L x W x H) | 100 mm x 60 mm x 25 mm |
| Net Weight | 100 g |
| Country of Origin | Finland |
Frequently Asked Questions
Q: What is the primary function of the ABB 57619414 module? A: It performs analog-to-digital signal conversion, isolation, and power signal distribution within ABB FlexPainter IRB 5400 robotic systems.
Q: What are the input and output electrical ratings for this module? A: It accepts a 24 VDC input (20 mA) and provides a 0-10 VDC output supporting up to 5 A output current with up to 2500 Vrms signal isolation.
