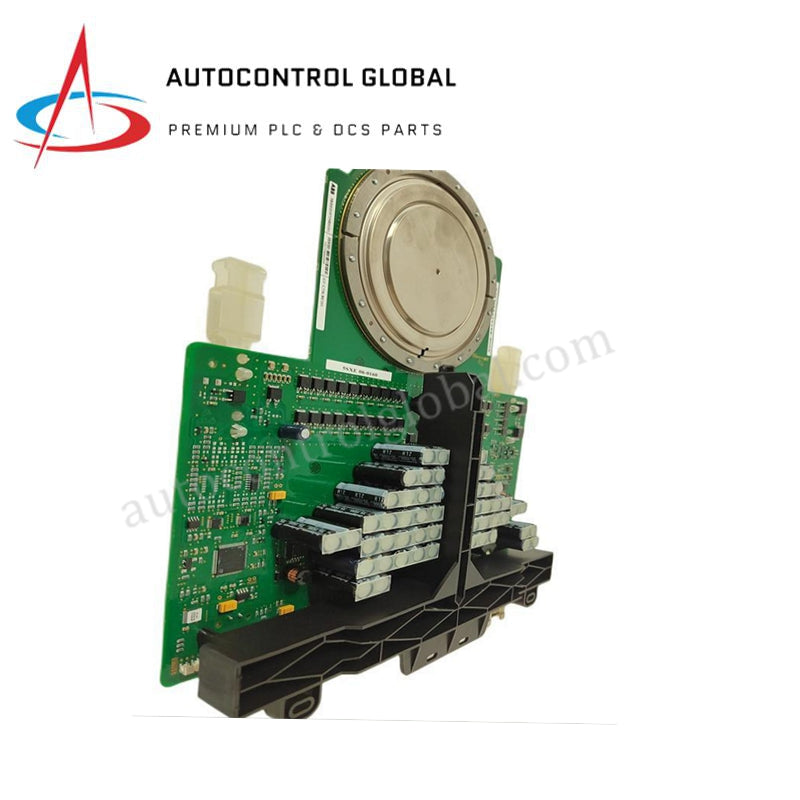

5SHY6545L0001 4500V Asymmetric ABB IGCT Modules
Manufacturer: ABB
-
Part Number: 5SHY6545L0001
Condition：New with Original Package
Product Type: IGCT Modules
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
ABB 5SHY6545L0001 Integrated Gate-Commutated Thyristor
The ABB 5SHY6545L0001 is a press-pack modular asymmetric Integrated Gate-Commutated Thyristor (IGCT) designed for high-voltage power conversion applications. It integrates a fast-switching gate-commutated semiconductor with an optimized gate drive unit, providing precise current control in medium-voltage drives, traction inverters, and power grid converters.
Mechanical Press-Pack Construction
Built using a hermetic press-pack housing with a 91 mm active diameter, the 5SHY6545L0001 relies on an applied mounting force of 40 kN to ensure double-sided electrical contact and low thermal resistance. The module is configured for half-bridge or phase-leg topology within power conversion stacks, enabling rapid turn-off switching in the low microsecond range.
Electrical Characteristics and Ratings
The module features a peak repetitive off-state voltage ($V_{\text{DRM}}$) rating of 4500 V and a maximum turn-off current ($I_{\text{TGQM}}$) capability up to 6500 A. It supports a continuous collector current from 600 A to 1500 A (600 A nominal), with an operating junction temperature range from -40 deg C to +150 deg C.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 5SHY6545L0001 |
| Brand | ABB |
| Product Type | Modular Asymmetric IGCT Module |
| Peak Off-State Voltage ($V_{\text{DRM}}$) | 4500 V |
| Max Turn-Off Current ($I_{\text{TGQM}}$) | 6500 A |
| Continuous Collector Current | 600 A to 1500 A |
| Nominal Current | 600 A |
| Switching Speed | Low microsecond range |
| Mounting Force | 40 kN |
| Typical Housing Diameter | 91 mm |
| Junction Temperature Range | -40 deg C to +150 deg C |
| Dimensions (L × W × H) | 200 × 120 × 50 mm |
| Weight | 2.9 kg to 3.0 kg |
Frequently Asked Questions
Q: What is the primary function of the ABB 5SHY6545L0001 IGCT module? A: The 5SHY6545L0001 is a high-power switching semiconductor module used for controlled power conversion and inversion in industrial drives, traction converters, and uninterruptible power systems.
Q: What mounting force is required to install this module? A: The press-pack structure requires a mounting clamp force of 40 kN to achieve correct electrical connection and optimal heat dissipation.
Q: What are the primary voltage and current limits for the 5SHY6545L0001? A: It is rated for a peak off-state voltage of 4500 V, a maximum turn-off current of 6500 A, and a continuous collector current range of 600 A to 1500 A.
