5SHY6545L0001 ABB | Industrial Modular Gate-Commutated Thyristor
Manufacturer: ABB
-
Part Number: 5SHY6545L0001
Condition：New with Original Package
Product Type: Industrial Modular Gate-Commutated Thyristor
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description

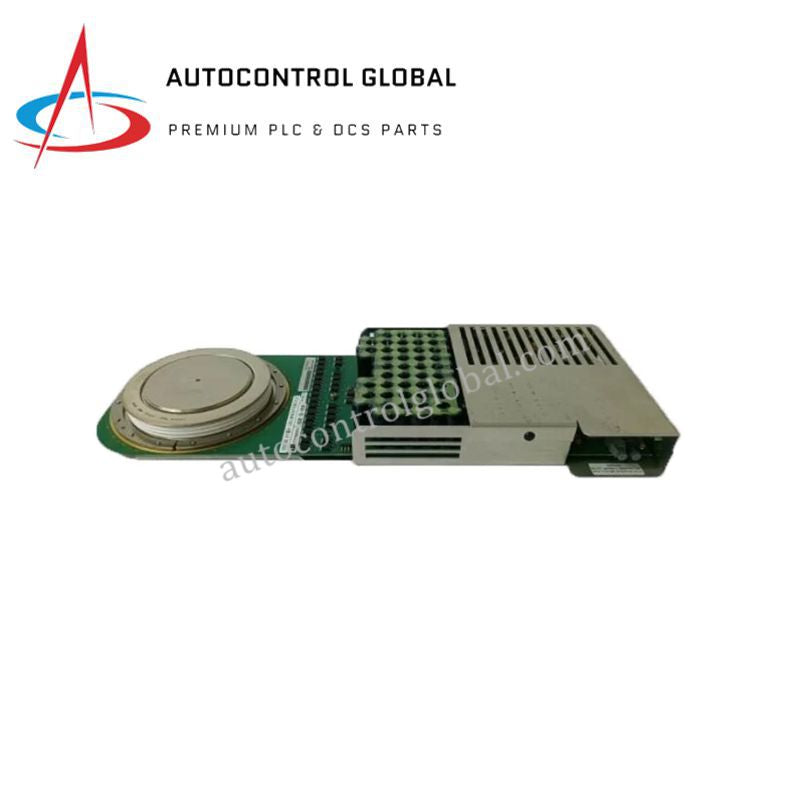

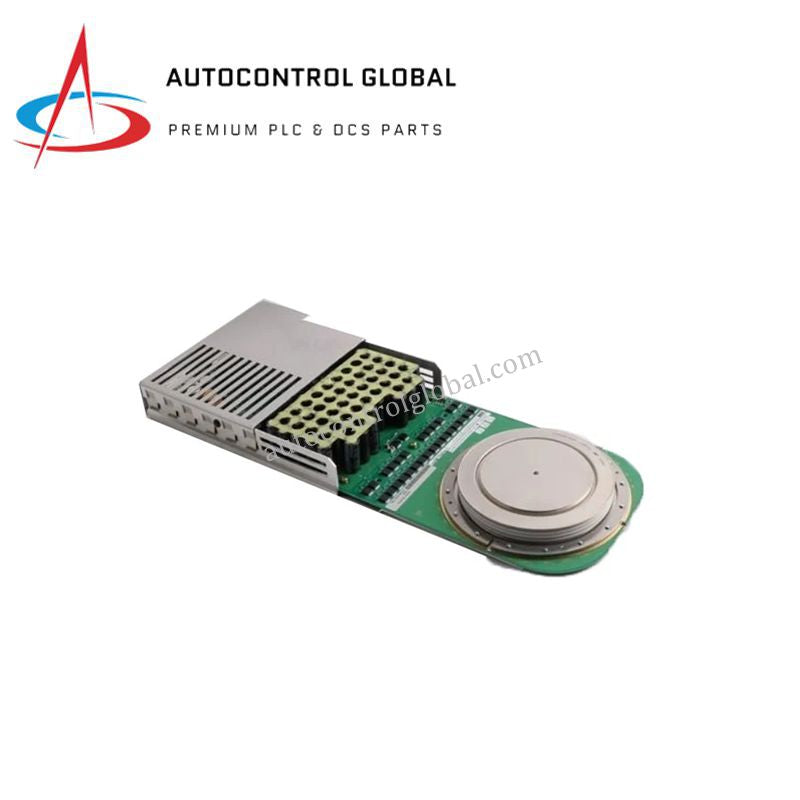

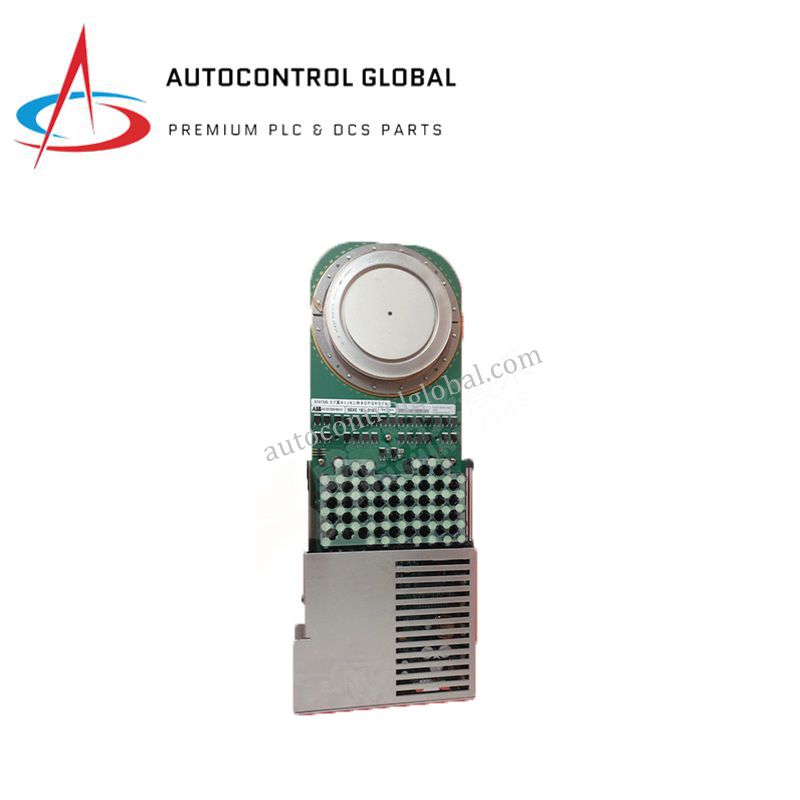

The ABB 5SHY6545L0001 is a modular Integrated Gate-Commutated Thyristor (IGCT) module, designed for high-voltage, high-current industrial applications. It combines gate-commutated thyristors with a dedicated gate drive, enabling precise and efficient switching in power conversion systems like inverters, traction drives, UPS systems, and high-power motor drives.
Engineered for robust thermal performance and mechanical reliability, the 5SHY6545L0001 operates reliably under demanding industrial environments such as energy transmission, industrial automation, and renewable energy systems. Its press-pack design ensures long operational life and consistent performance.
The module is installed in a control room environment and configured as a phase-leg or half-bridge structure, supporting fast switching in the low microsecond range. Engineers choose the 5SHY6545L0001 for applications requiring high-speed switching, precise current control, and extreme voltage ratings.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 5SHY6545L0001 |
| Product Type | Modular Asymmetric IGCT Module |
| Voltage Rating (VDRM) | 4500 V |
| Current Rating (ITGQM) | 6500 A |
| Collector-Emitter Voltage | 4500 V |
| Continuous Collector Current | 600–1500 A |
| Nominal Current | 600 A |
| Switching Speed | Low μs range |
| Structure Type | Modular, Phase-Leg / Half-Bridge |
| Processor Type | Soft PLC (LD instruction) |
| Operating Voltage | 150 V |
| Output Frequency | 20 Hz |
| Processing Speed | 230 μs |
| Mounting Method | Control room installation |
| Mounting Force | 40 kN |
| Typical Diameter | 91 mm |
| Dimensions (L × W × H) | 200 mm × 120 mm × 50 mm |
| Weight | 2.9–3.0 kg |
| Junction Temperature | –40°C to +150°C |
| Ambient Conditions | 26°C, 60% humidity |
| Application Areas | Energy transmission, industrial automation, renewable energy, UPS, traction drives |
FAQ
Q1: What is the ABB 5SHY6545L0001 used for?
A1: It is a modular IGCT module designed for high-power industrial applications including inverters, drives, and UPS systems.
Q2: What voltage and current ratings does this IGCT module support?
A2: It supports 4500 V collector-emitter voltage, 600–1500 A continuous collector current, and a nominal current of 600 A.
Q3: Can the 5SHY6545L0001 operate in harsh industrial environments?
A3: Yes, it is designed for –40°C to +150°C junction temperature, robust mechanical integrity, and high-reliability power switching.
Q4: How is the module installed?
A4: The 5SHY6545L0001 is installed in a control room, typically mounted in phase-leg or half-bridge configuration.
Q5: What makes this module suitable for renewable energy applications?
A5: Its fast switching speed, high voltage, and current ratings, combined with press-pack design, ensure efficient power conversion for renewable energy systems.
