5SHY65L4521 ABB | Press-Pack Integrated Gate-Commutated Thyristor
Manufacturer: ABB
-
Part Number: 5SHY65L4521
Condition：New with Original Package
Product Type: Press-Pack Integrated Gate-Commutated Thyristor
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description

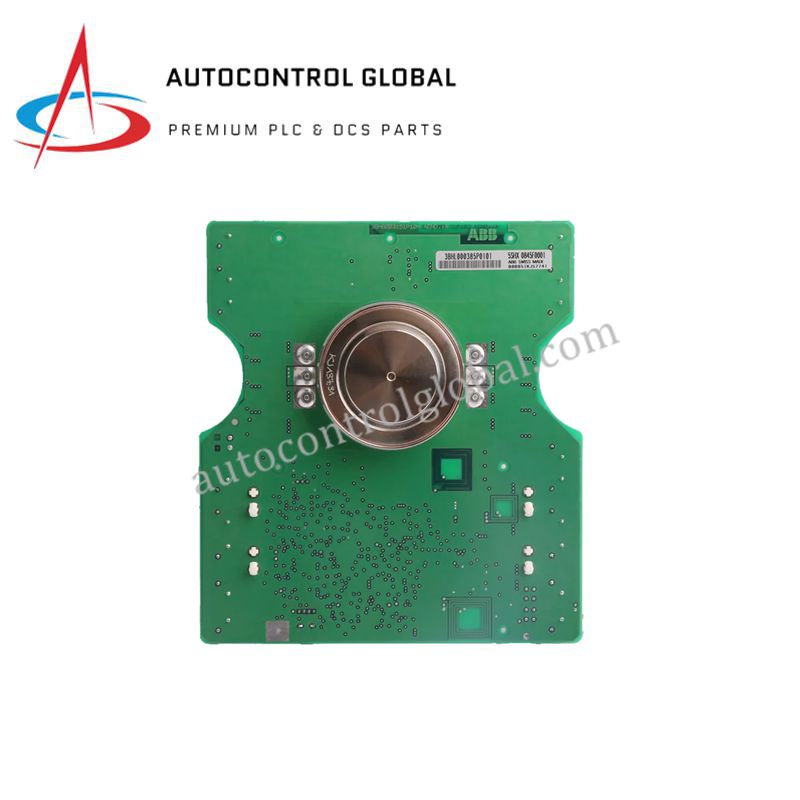

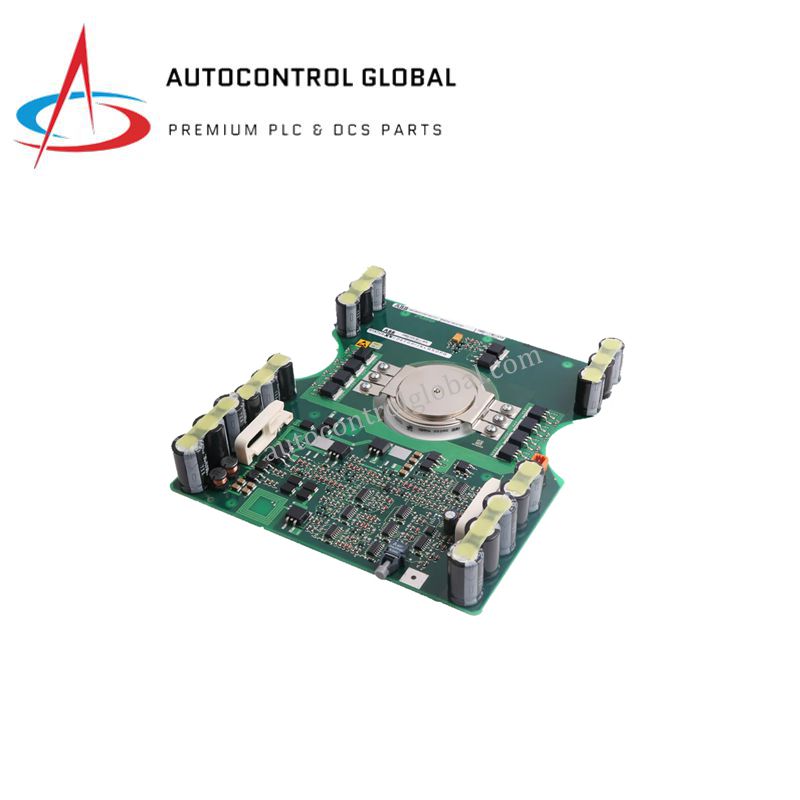

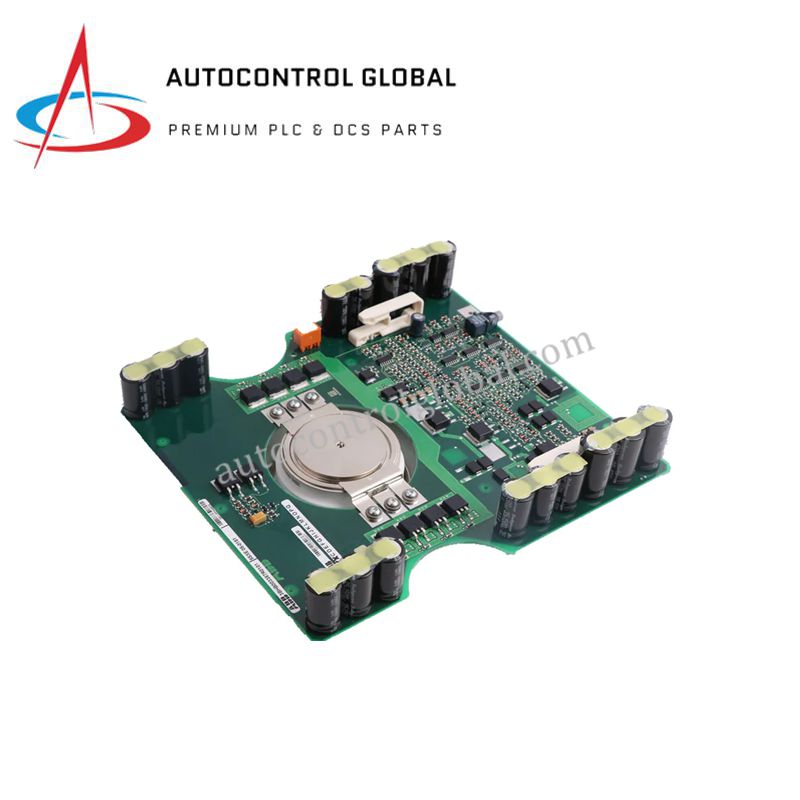

The ABB 5SHY65L4521 is a high-performance asymmetric Integrated Gate-Commutated Thyristor (IGCT) module designed for demanding industrial power applications. This module combines a thyristor with a dedicated gate unit inside a press-pack housing, delivering fast switching, low conduction losses, and high reliability.
Engineered for medium-voltage drives, industrial inverters, and power converters, the 5SHY65L4521 is ideal where high current and voltage ratings are required. Its robust design ensures excellent thermal, mechanical, and electromagnetic performance, making it suitable for harsh industrial environments and mission-critical systems.
The module features compact dimensions, DIN-compatible installation, and modular structure, enabling seamless integration into distributed control and power conversion setups.
Technical Specifications
| Specification | Details |
|---|---|
| Product ID | 5SHY65L4521 |
| Product Type | Asymmetric IGCT Module |
| Voltage Rating (VDRM) | 4500 V |
| Current Rating (ITGQM) | 6500 A |
| Average Current (ITAVM) | 2660 A |
| DC Voltage Rating | 2800 V |
| Package Dimensions | Diameter: 85 mm, Height: 26 mm |
| Product Dimensions (L × W × H) | 439 mm × 173 mm × 41 mm |
| Gross Weight | 2.9 kg |
| Country of Origin | Switzerland |
| Application Areas | Medium-voltage drives, industrial inverters, high-power converters |
FAQ
Q1: What is the ABB 5SHY65L4521 used for?
A1: It is an asymmetric IGCT module for medium-voltage drives, industrial inverters, and high-power converters.
Q2: What are the voltage and current ratings of this module?
A2: It supports 4500 V collector-emitter voltage, 6500 A current rating, and average current of 2660 A.
Q3: Is this module suitable for harsh industrial environments?
A3: Yes, the 5SHY65L4521 is engineered for robust thermal, mechanical, and electromagnetic performance, suitable for mission-critical systems.
Q4: How is the ABB 5SHY65L4521 installed?
A4: The module features compact dimensions and press-pack structure, ideal for control room or DIN-compatible installations.
Q5: Is the module in stock and ready to ship?
A5: Yes, the product is brand new, original ABB, with delivery via DHL or FedEx in 3–14 days, depending on order size.
