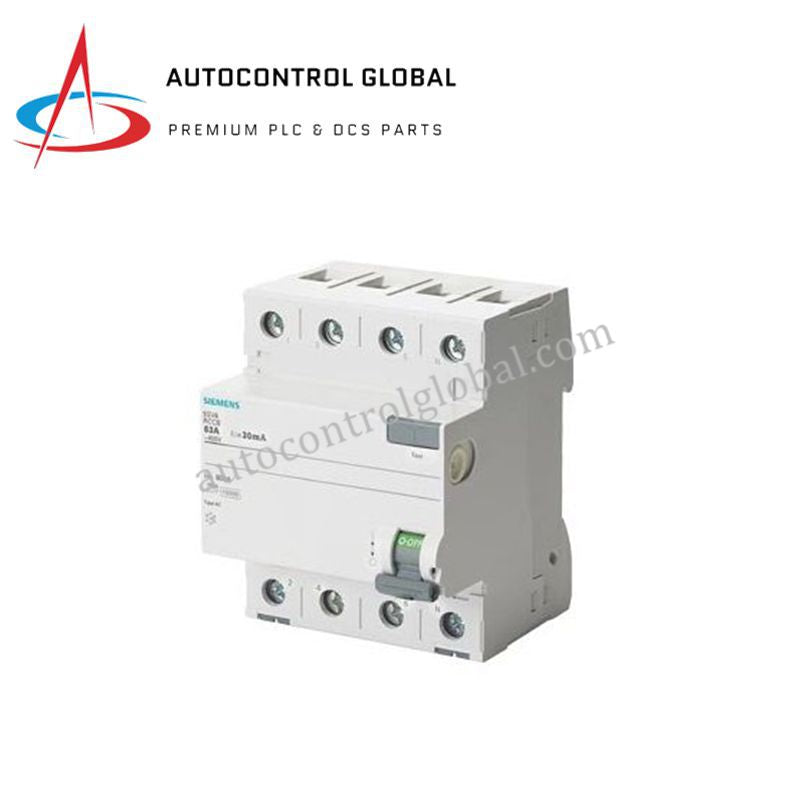

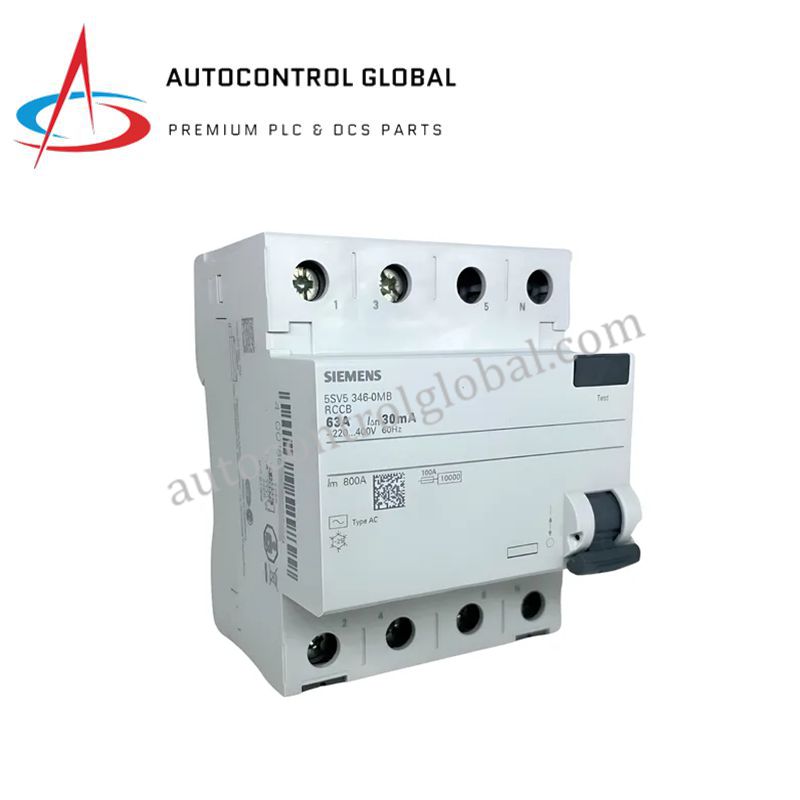

5SV5346-0 Siemens RCCB | 3-Phase Residual Current Circuit Breaker

Product Description / Overview

The Siemens 5SV5346-0 is a SENTRON residual current circuit breaker (RCCB) designed for 3-phase installations.
It provides reliable protection against earth leakage currents that can cause electric shock or fire hazards.

This 4-pole device features Type A detection, ensuring both AC and pulsating DC fault currents are identified.
Moreover, the 30 mA sensitivity offers personal protection, while DIN rail mounting allows easy integration into standard distribution boards.

Although RCCBs do not provide overcurrent protection, they work effectively alongside MCBs to deliver complete circuit safety.
Therefore, the 5SV5346-0 is ideal for residential, commercial, and industrial electrical systems.

Technical Data / Specifications

Product Type: Residual Current Circuit Breaker (RCCB)
Series: SENTRON 5SV5
Model Number: 5SV5346-0
Poles: 4-pole (3-phase + neutral)
Rated Current (In): 63 A
Rated Voltage (Un): 400 V AC
Residual Current Type: Type A
Residual Current Sensitivity (IΔn): 30 mA
Breaking Capacity: 10 kA (requires upstream MCB/fuse protection)
Frequency: 50/60 Hz
Tripping Characteristic: Instantaneous residual current detection
Insulation Voltage (Ui): 440 V
Impulse Withstand Voltage (Uimp): 6 kV
Surge Current Resistance: 3 kA (8/20 μs waveform)
Mechanical Service Life: ≥ 10,000 operations
Electrical Service Life: ≥ 4,000 operations
Mounting: DIN rail
Protection Class: IP20
Operating Temperature: -25 … +40 °C
Storage Temperature: -40 … +75 °C
Weight: 0.55 kg
Standards Compliance: IEC/EN 61008

FAQ

Does the 5SV5346-0 provide overcurrent protection?
No, RCCBs only detect residual currents; overcurrent protection requires separate MCBs.

What type of residual current does it detect?
It detects Type A residual currents, covering AC and pulsating DC leakage currents.

What is the rated current of this RCCB?
The device supports a rated current of 63 A for medium to high-load systems.

How is the module mounted?
It installs easily on standard DIN rails in distribution boards.

Is this suitable for industrial installations?
Yes, the 4-pole design makes it ideal for 3-phase industrial electrical systems.
