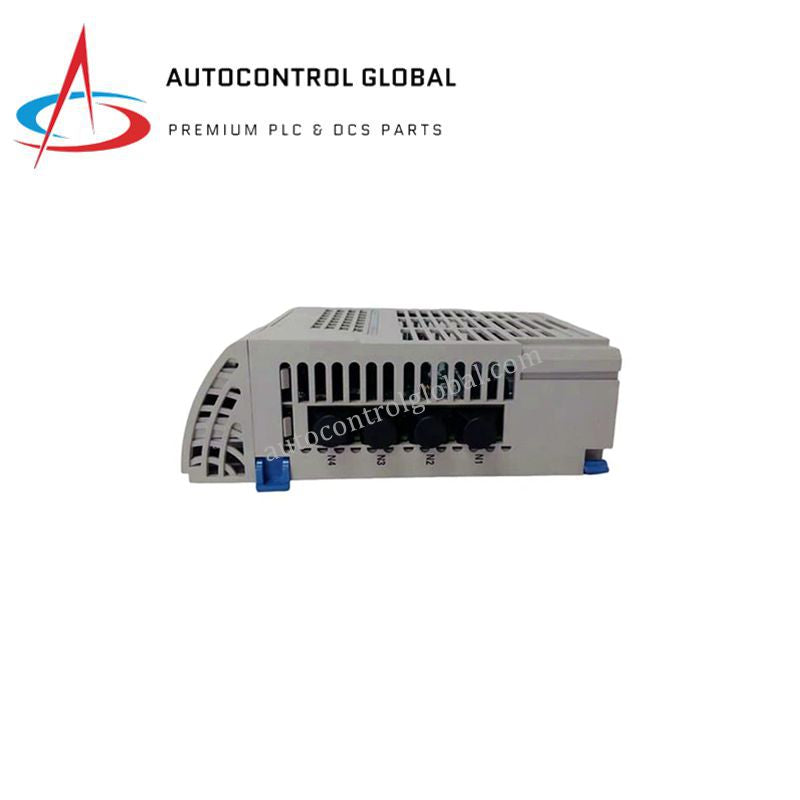

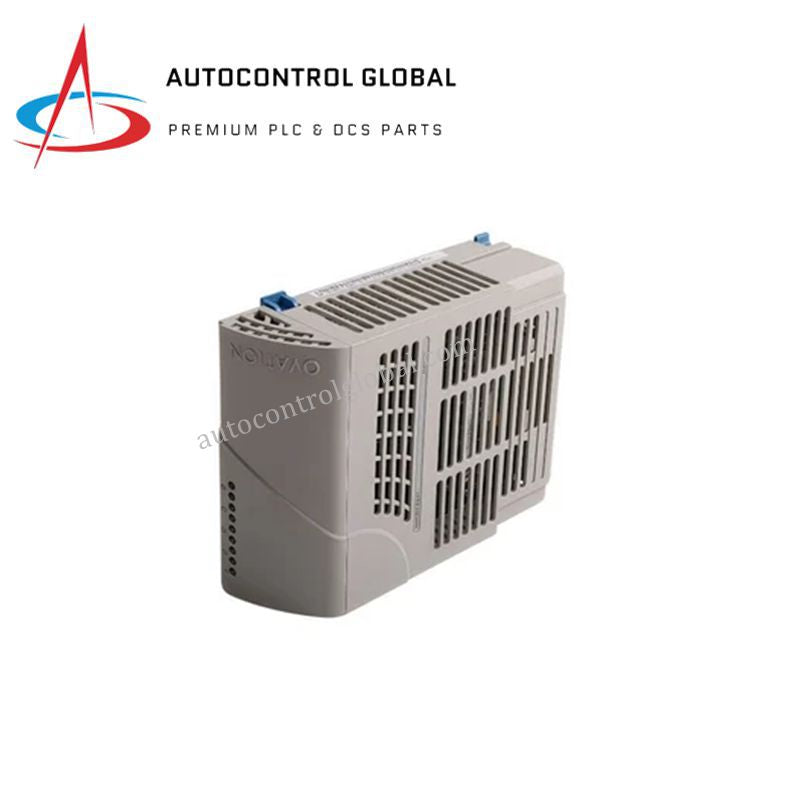

Emerson 5X00357G05 Ovation Series Enhanced Events Input Modules

Configured for high-speed sequence-of-events sequence capture in Ovation Distributed Control System architectures, the Emerson 5X00357G05 (5X00357G05 Enhanced Events Input Module) provides direct physical/electrical execution. The hardware operates across 16 independent digital input channels designed to detect state transitions from field devices and apply precise local chronological timestamps. This functional module evaluates fast differential electrical transitions directly on its hardware registers, transferring resolved digital event state values to the host Ovation controller backplane across the integrated system I/O bus interface.

Hardware Specifications

Channel-to-Channel Isolation and Differential Signal Interfacing

The physical architecture of the 5X00357G05 utilizes internal optocoupler circuits to establish dedicated channel-to-channel isolation metrics across all 16 incoming lines. By decoupling individual loop return lines, the hardware suppresses common-mode voltage spikes and prevents ground loop currents from destabilizing the high-speed timestamp registers. The 24 V differential digital configuration operates alongside dedicated wire break detection circuits that continuously verify sensor loop integrity, permitting error-free transmission of critical trip data and 4-20 mA HART loop protocol diagnostic flags across noisy plant environments without cross-talk or timing jitter.

Frequently Asked Questions

Q: What hot-swap parameters govern the physical exchange of the 5X00357G05 card while the Ovation rack is powered?

A: The module supports live physical insertion and extraction from an active Ovation I/O chassis slot. Pulling the card during active processes immediately de-energizes the 16 sensing circuits and halts local timing sequence records, though it will not introduce processing disruptions onto adjacent modules running on the same backplane bus.

Q: How does the module execute local timestamp synchronization with the master Ovation controller clock?

A: The internal clocks on the 5X00357G05 lock onto a high-frequency synchronization heartbeat transmitted through the Ovation backplane interface. This layout enables the module to apply independent microsecond-level timestamps to edge transitions on all 16 channels simultaneously before the data packet updates the main controller database.

Q: What action does the wire break detection subsystem trigger if an external field loop open-circuit occurs?

A: The internal diagnostics track a constant low-level leakage current through the field contact circuits. If this sensing loop current falls below the threshold index, indicating a fractured wire or open contact loop, the card immediately registers a hardware channel diagnostic fault and pushes an event error bit to the master controller graphic diagnostic system.

Field Installation Guidelines

• Chassis Alignment Lock: Insert the module assembly straight into the designated slot of the Ovation I/O rack. Push the hardware forward until the mechanical retention connectors engage completely with the backplane bus socket pins.
• Shield Ground Separation: Connect the twisted-shielded pair signal cable drains to the central instrument earth bar inside the marshalling enclosure. Keep the shield layer isolated at the field switch terminal box to eliminate secondary ground loops.
• Conductor Track Routing: Place all 24 V high-speed event wires inside separate, grounded steel conduits. Ensure these signal conduits maintain physical separation from high-current AC power lines to block external electromagnetic noise injection on the tracking loops.
• Fitting Engagement Limits: Verify exactly 5 full threads of NPT engagement at all conduit entry points into field junction boxes to prevent the entry of moisture or atmospheric contaminants into the electrical terminations.
