5X00594G01 by Ovation | Precision Analog Input Module
Manufacturer: Emerson
-
Part Number: 5X00594G01
Condition：New with Original Package
Product Type: Precision Analog Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

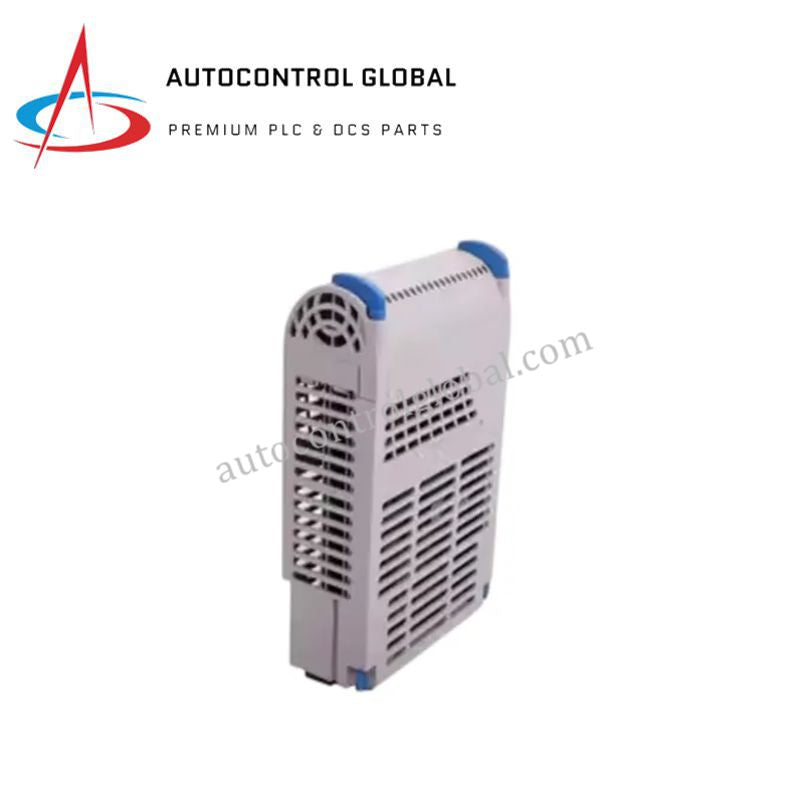

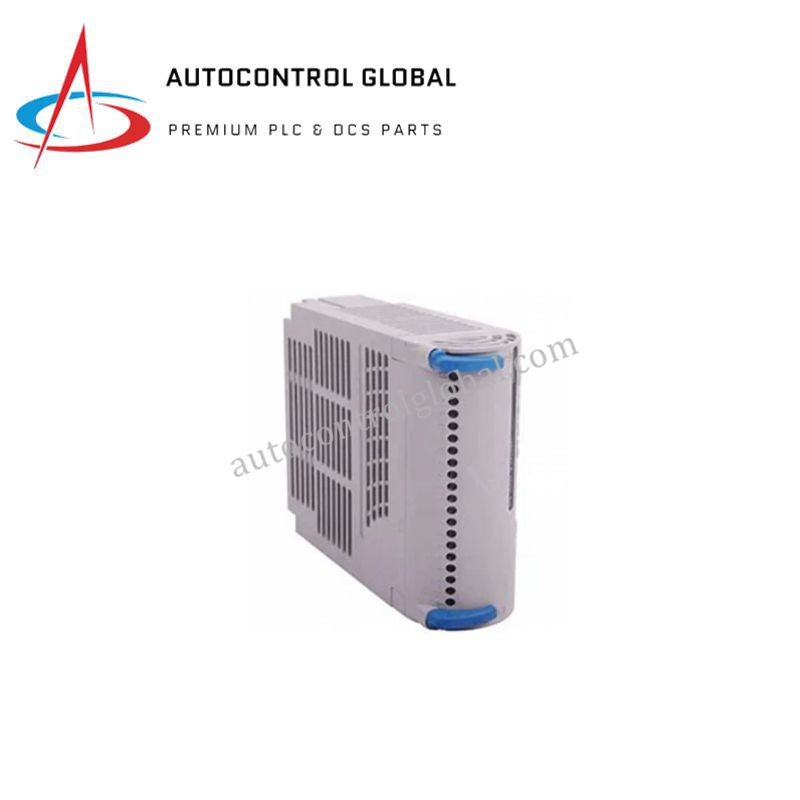

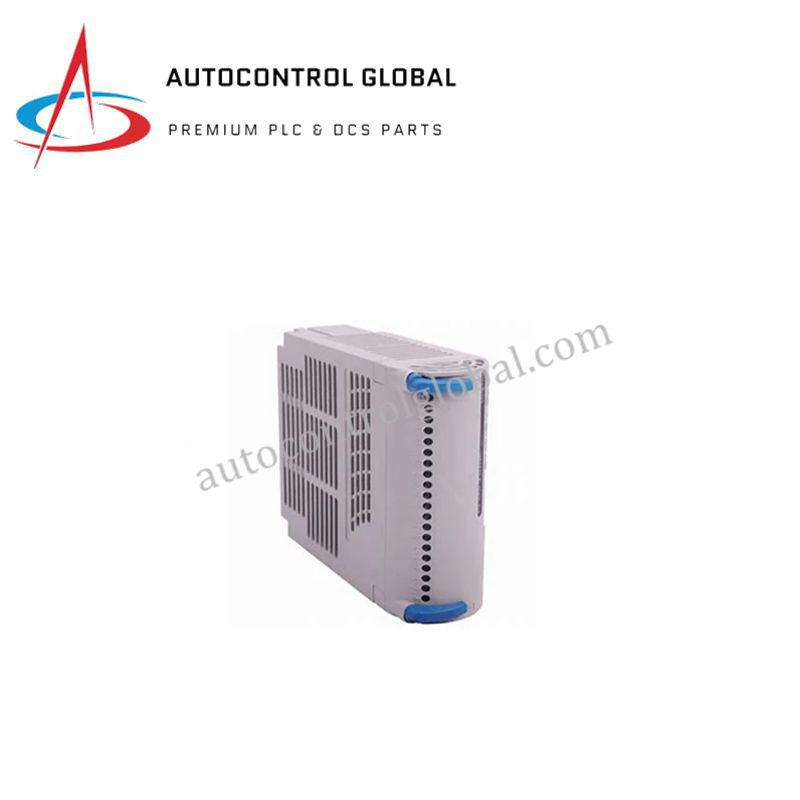

OVATION 5X00594G01 Analog Input Module
The OVATION 5X00594G01 is a versatile Analog Input Module engineered by Emerson to acquire, digitize, and condition multiple types of analog signals from industrial field instruments. It supports current, voltage, thermocouples, and RTDs, making it highly flexible for complex process control applications.
Designed for seamless integration with the Ovation backplane, the 5X00594G01 ensures real-time data acquisition with timestamping and advanced diagnostics. With 16 single-ended or 8 differential channels, it provides reliable signal processing while maintaining compact rack-mounted installation.
Its hot-swappable capability allows technicians to replace the module during operation without downtime, making it ideal for industries such as power generation, oil & gas, chemical processing, and water treatment.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 5X00594G01 |
| Type | Analog Input (AI) Module |
| Channels | 16 single-ended or 8 differential (configurable) |
| Signal Types Supported | Current: 4–20 mA, 0–20 mA; Voltage: 0–10 V, ±5 V; Thermocouples: J, K, T, etc.; RTDs: Pt100, Pt1000 |
| Communication Interface | Ovation backplane (to Ovation DPU/controller) |
| Data Acquisition | Real-time with timestamping |
| Diagnostics | Open wire detection, over-range alerts, health monitoring |
| Operating Temperature | –20°C to +60°C (–4°F to +140°F) |
| Weight | 1 Kg |
| Country of Origin | USA |
| Certifications | CE, UL, RoHS compliant |
FAQ
Q1: Is the OVATION 5X00594G01 brand new?
A1: Yes, it is factory sealed, original, and comes with a 12-month warranty.
Q2: How many channels does the module provide?
A2: The 5X00594G01 supports 16 single-ended or 8 differential input channels.
Q3: What types of signals can this module handle?
A3: It supports current (4–20 mA), voltage (0–10 V, ±5 V), thermocouples, and RTDs.
Q4: Can the module be replaced without shutting down the system?
A4: Yes, the 5X00594G01 is hot-swappable and designed for continuous operation.
Q5: What industries commonly use this module?
A5: It is widely applied in power generation, oil & gas, water treatment, and chemical plants.
Q6: How soon can it be shipped?
A6: We have stock available, and orders usually ship within 3 days to 2 weeks, depending on size.
