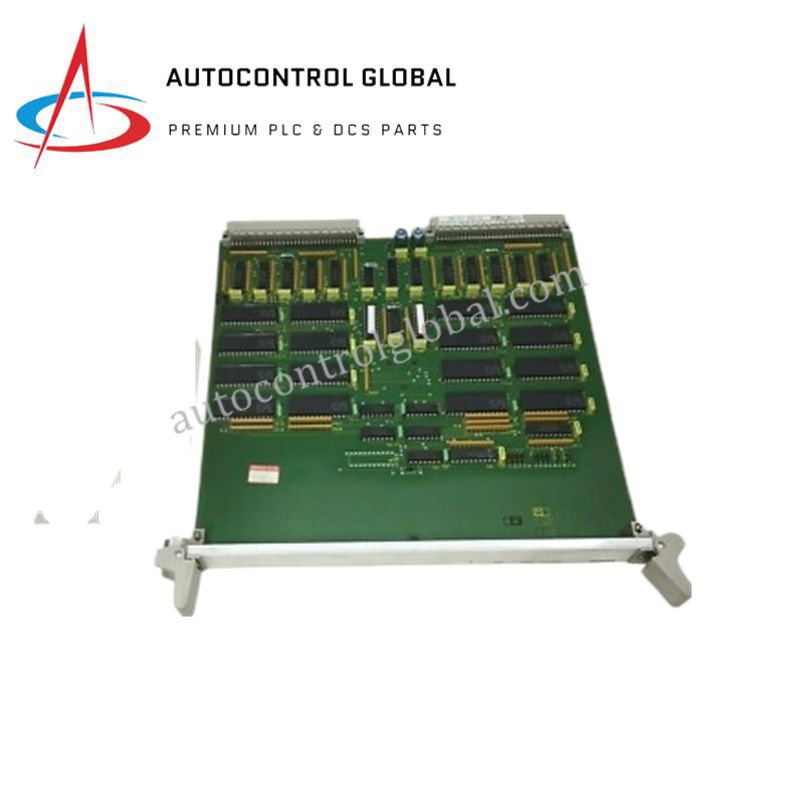

6DD1611-0AD0 Siemens SIMADYN D 16-Channel Output Board

Product Description / Overview

The Siemens 6DD1611-0AD0 is a digital output module for the SIMADYN D rack-based automation system.
It provides isolated 24 V DC outputs to control relays, actuators, and contactors reliably.
Rack-mounted Eurocard design allows flexible modular expansion within SIMADYN D control systems.
Moreover, industrial-grade components ensure continuous operation in harsh and electrically noisy environments.

Technical Data / Specifications

Product Type: Digital Output Module
Series: SIMADYN D
Model Number: 6DD1611-0AD0
Number of Outputs: 16 digital outputs
Nominal Output Voltage: 24 V DC
Output Current per Channel: Up to 0.5 A (depending on load type)
Switching Type: Transistor outputs (fast switching)
Isolation: Galvanic isolation between outputs and backplane bus
Protection: Short-circuit and overvoltage protection per channel
Response Time: <1 ms
Supply Voltage: 24 V DC via SIMADYN D rack
Mounting: Rack-mounted (Eurocard format)
Operating Temperature: 0 … +60 °C
Storage Temperature: -40 … +70 °C
Relative Humidity: 5 … 95 % non-condensing
Dimensions: Standard SIMADYN D Eurocard (233 × 160 mm)
Weight: 2.0 kg
Compliance: IEC industrial automation standards

FAQ

How many outputs does this module support?
It supports 16 isolated digital outputs for controlling actuators and relays.

What voltage and current ratings are supported?
Each channel provides 24 V DC with up to 0.5 A output current.

Is the module protected against electrical faults?
Yes, it includes overvoltage and short-circuit protection per output channel.

What is the response time for switching outputs?
The module offers fast switching with response times below 1 millisecond.

Which SIMADYN D modules is it compatible with?
It integrates with PM16, PM30, PM40 processor modules and FM455, FM458 function modules.
