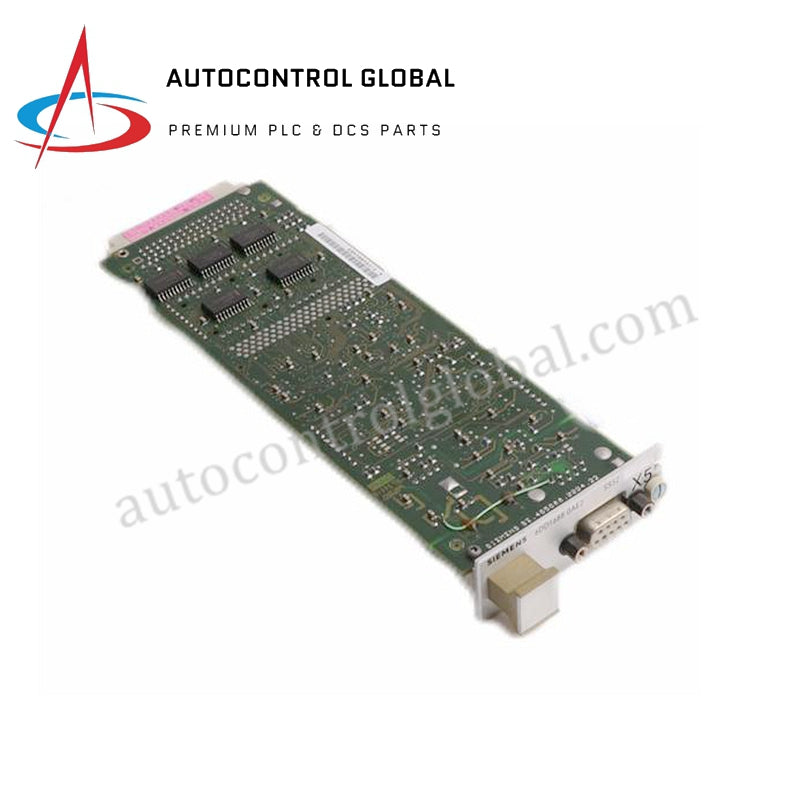

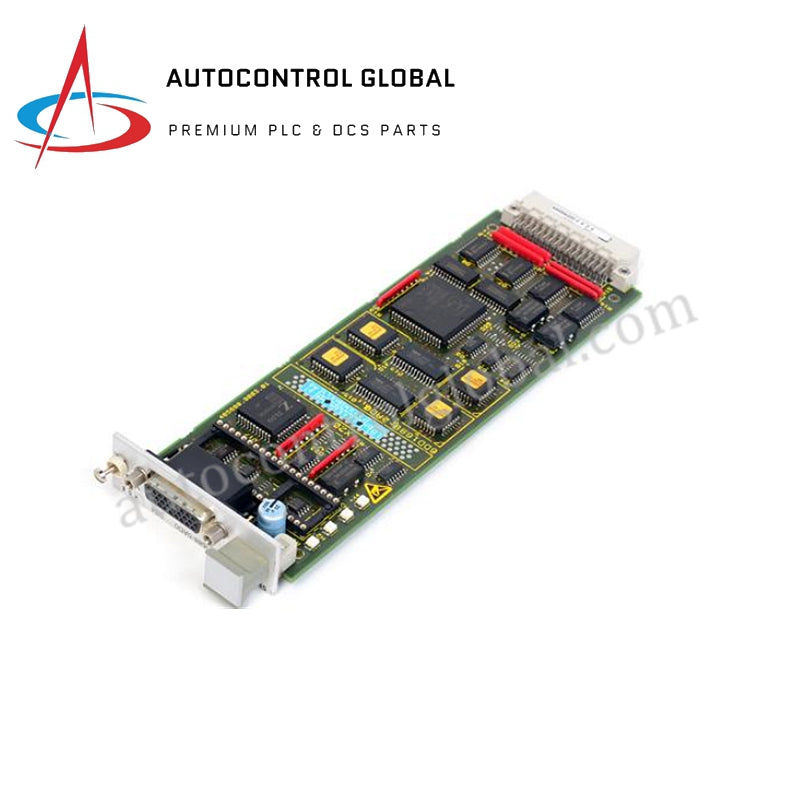

6DD1688-0AE2 Communication Module Siemens

  • Manufacturer: Siemens

  • Part Number: 6DD1688-0AE2

  • Condition：New with Original Package

  • Product Type: Communication Module

  • Country of Origin: Germany

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

6DD1688-0AE2 is a Siemens communication module with PROFIBUS RS485 interface and diagnostic support.

Interface Specifications

  • PROFIBUS Interface: RS485 format with electrical isolation

  • Power Supply for OLMs: 5V, electrically isolated (floating)

  • Diagnostic Interface (SS52): RS232 format, used for COM PROFIBUS

Connection Options

  • Connector X5:
     • Direct connection via SINEC L2 bus connector
     • Optional via SINEC L2 bus terminal (drop cable capacitance must be considered per baud rate)

  • Terminating Resistors: Integrated in both SINEC L2 bus terminal and connector; switchable
