6XV1830-0JH10 | Siemens PROFIBUS FC Cable with PUR Sheath
Manufacturer: Siemens
-
Part Number: 6XV1830-0JH10
Condition：New with Original Package
Product Type: PROFIBUS FC Cable with PUR Sheath
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

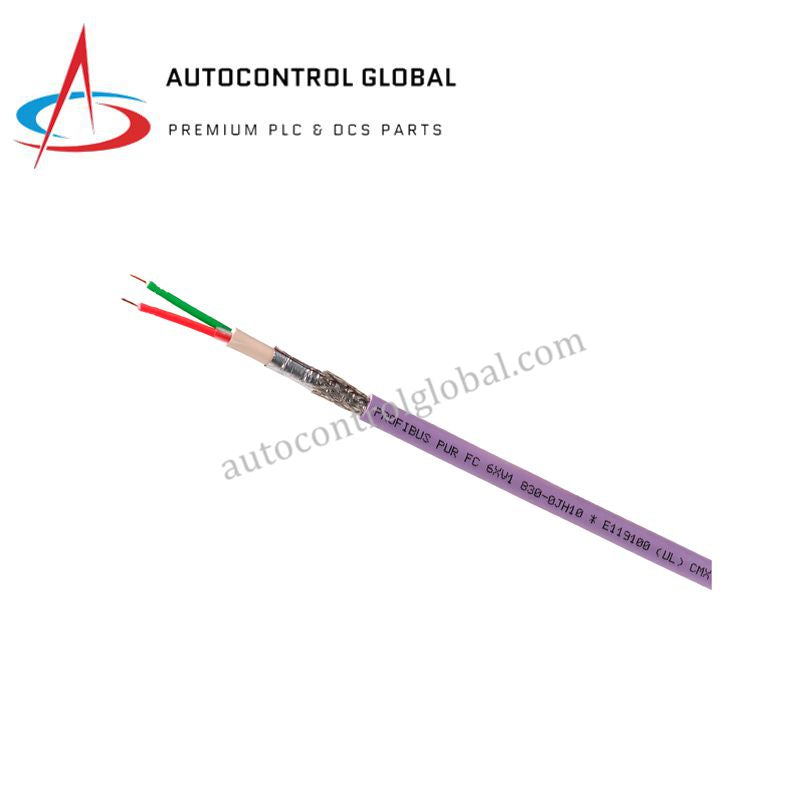

Siemens 6XV1830-0JH10 | Robust PROFIBUS FC Bus Cable with PUR Sheath
The Siemens 6XV1830-0JH10 is a high-performance, shielded PROFIBUS FastConnect (FC) bus cable engineered for the most demanding industrial environments. This specialized Type A cable features a rugged Polyurethane (PUR) outer sheath, providing exceptional resistance against aggressive chemicals and oils. Engineers frequently specify this model for applications where mechanical loads and abrasive conditions would compromise standard PVC-jacketed cables. Furthermore, the internal 2-core twisted pair structure ensures reliable data transmission for PROFIBUS DP and FMS networks at high speeds. Because it utilizes Siemens' proprietary FastConnect technology, technicians can strip and terminate the cable with remarkable speed and precision.

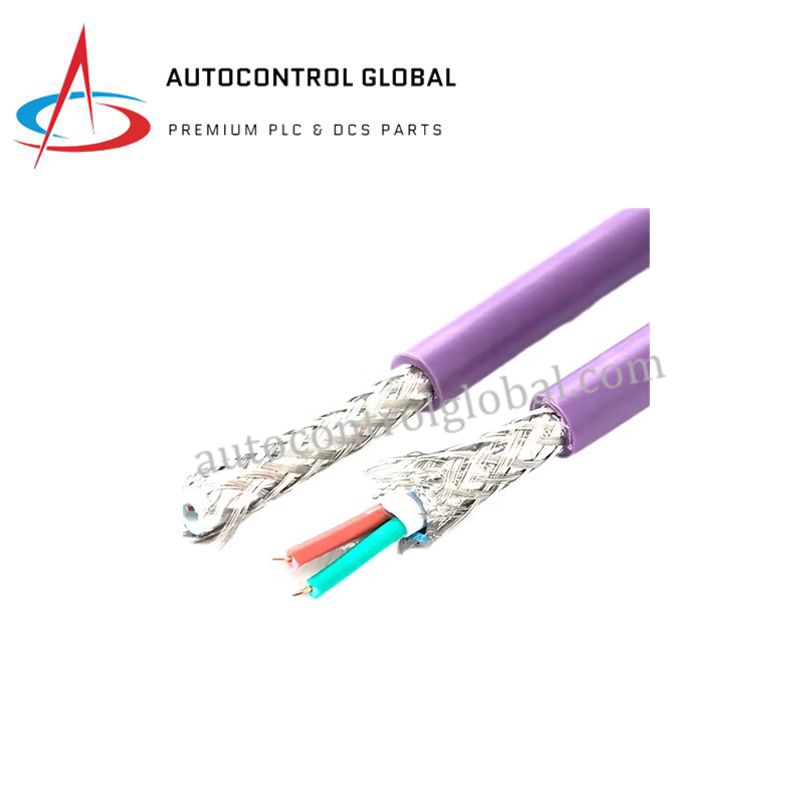

Durability is the primary hallmark of this cable, as the violet PUR jacket remains flexible and intact under significant stress. It effectively shields critical automation data from electromagnetic interference through a sophisticated combination of aluminum foil and tinned copper braiding. Moreover, the cable is halogen-free and flame-retardant, making it a safer choice for enclosed factory floors and process plants. Therefore, investing in this robust cabling solution prevents costly network failures caused by environmental degradation or mechanical wear. Whether you are connecting a SIMATIC PLC to distributed I/O or a high-torque drive, this cable ensures industrial-grade signal integrity.
Technical Specifications
| Parameter | Specification Details |
| Model Number | 6XV1830-0JH10 |
| Product Type | PROFIBUS FastConnect (Type A) |
| Core Count | 2-Core (Red and Green twisted pair) |
| Conductor Diameter | 0.64 mm (AWG 22 solid copper) |
| Outer Sheath Material | PUR (Polyurethane) |
| Outer Diameter | 8.0 mm |
| Characteristic Impedance | 150 Ω ± 10% |
| Shielding | Aluminum foil + Tinned copper braid |
| Operating Temperature | -30 °C to +70 °C |
| Voltage Rating | 80 V (Standard bus operation) |
| Bending Radius | 65 mm (Fixed), 85 mm (Flexible) |
| Color | Violet (RAL 4001) |
| Delivery Unit | Sold by the meter (Min. 20 m / Max. 1000 m) |
Frequently Asked Questions (FAQ)
Can I use the 6XV1830-0JH10 in a continuous-motion cable carrier?
While this cable is highly robust and supports flexible installation, a "Trailing Cable" variant is recommended for high-cycle robotic motion.
Is this cable compatible with standard PROFIBUS DB9 connectors?
Yes, it works perfectly with all standard Siemens FastConnect connectors and other D-sub 9-pin PROFIBUS plugs.
Why should I choose PUR over the standard PVC violet cable?
PUR offers significantly better resistance to mineral oils, greases, and abrasion, which prevents the jacket from becoming brittle over time.
Do I need a special tool to strip this PUR jacket?
We recommend the Siemens FastConnect Stripping Tool, as the PUR jacket is tougher than standard PVC and requires precise cutting depths.
