75-Ohm Plug Terminator | Honeywell 30732052-001 for UCN/TDC Systems
Manufacturer: Honeywell
-
Part Number: 30732052-001
Condition：New with Original Package
Product Type: 30732052-001 for UCN/TDC Systems
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview

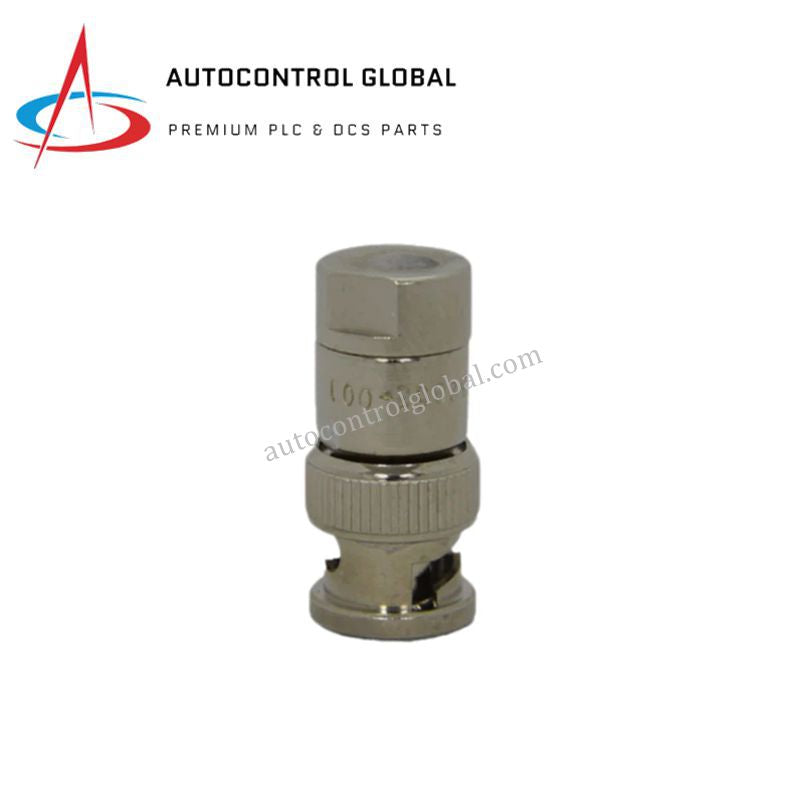

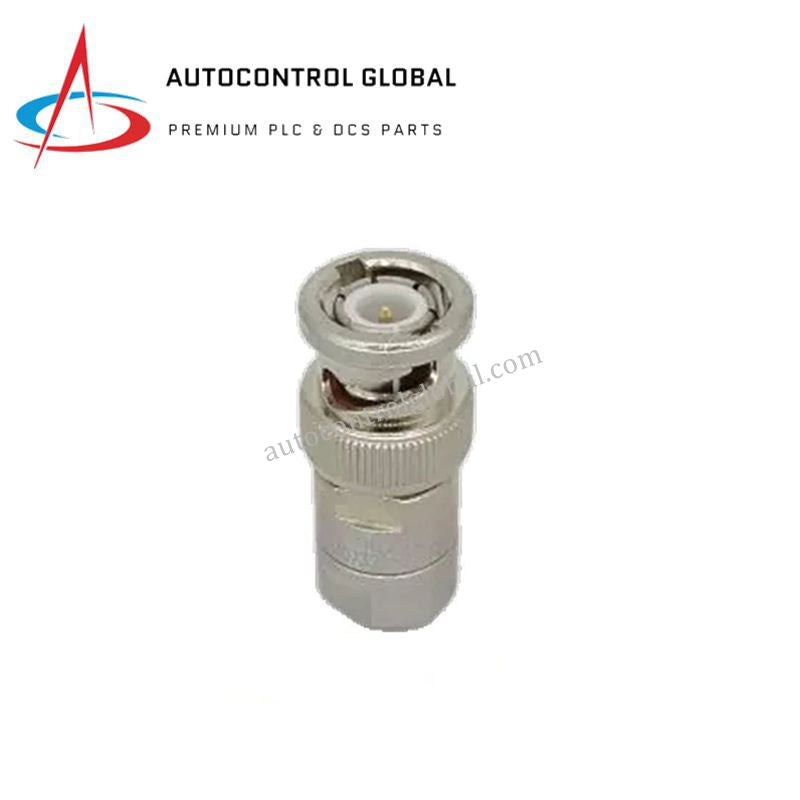

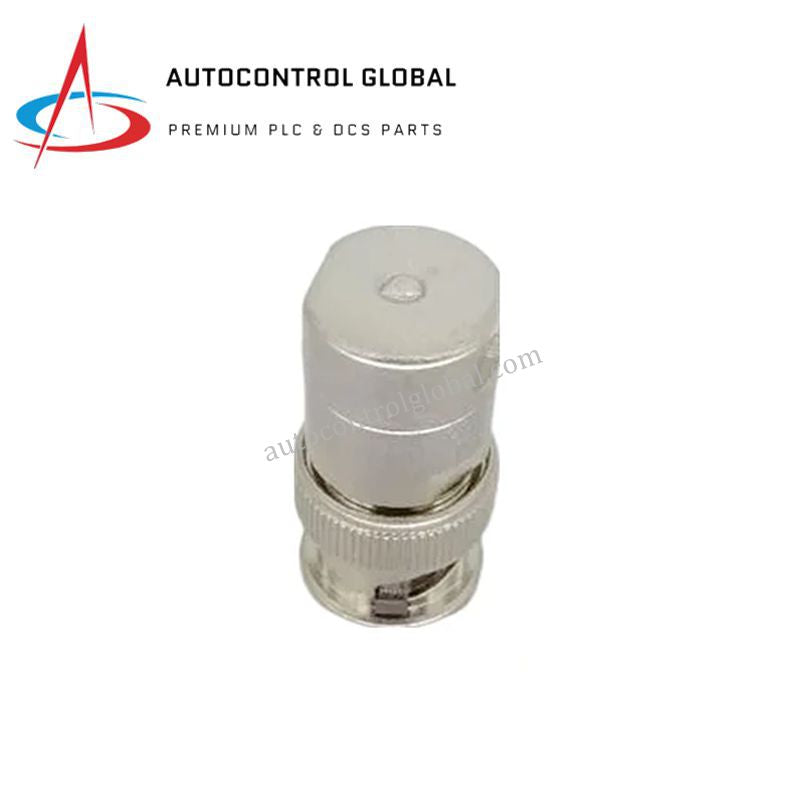

The Honeywell 30732052-001 is a precision 75-ohm plug terminator designed to maintain reliable communication in Honeywell TDC 3000 and Universal Control Network (UCN) systems. By terminating unused coaxial ports, it eliminates signal reflections that can disrupt data transmission in distributed control environments.
This compact terminator features a BNC connector for secure, quick installation and guarantees impedance matching across networked modules. Its rugged construction withstands EMI/RFI interference, ensuring consistent performance in industrial facilities.
The 30732052-001 enhances overall system reliability by maintaining stable signal integrity, especially in high-noise environments commonly found in power plants, process automation, and manufacturing networks.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 30732052-001 |
| Type | Plug Terminator |
| Resistance | 75 ohms |
| Connector Type | BNC (Bayonet Neill–Concelman) |
| Function | Terminates unused coaxial ports to prevent signal reflection |
| Impedance Matching | Maintains 75-ohm impedance for stable network communication |
| Compatibility | Honeywell TDC 3000 and UCN systems |
| Environmental Suitability | Designed for industrial EMI/RFI-prone environments |
| Installation | Simple plug-in BNC design for quick deployment |
| Shipping Weight | 2 kg |
| Product Weight | 300 g |
| Condition | In stock, brand-new original Honeywell |
| Origin | USA |
| Payment Options | T/T, Western Union |
| Shipping Port | Xiamen |
FAQ
Q1: What is the primary function of the Honeywell 30732052-001?
A1: The 30732052-001 terminates unused coaxial ports with 75-ohm resistance, preventing signal reflection and maintaining reliable network communication.
Q2: Which Honeywell systems are compatible with this plug terminator?
A2: It is designed for Honeywell TDC 3000 and Universal Control Network (UCN) systems, supporting coaxial network setups.
Q3: What type of connector does the 30732052-001 use?
A3: The terminator uses a BNC connector (Bayonet Neill–Concelman) for secure attachment to coaxial ports.
Q4: Is the Honeywell 30732052-001 suitable for harsh industrial environments?
A4: Yes, its rugged design resists EMI/RFI interference and performs reliably in challenging industrial conditions.
Q5: What is the lead time for delivery?
A5: We ship within 3 days to 2 weeks, depending on order quantity, using trusted carriers such as DHL, FedEx, or TNT.
