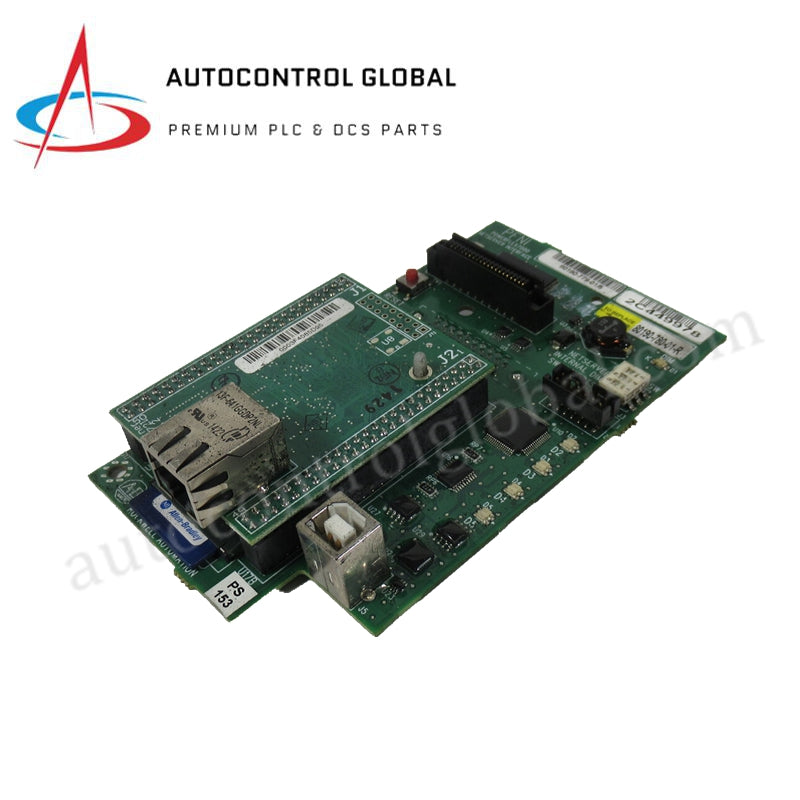

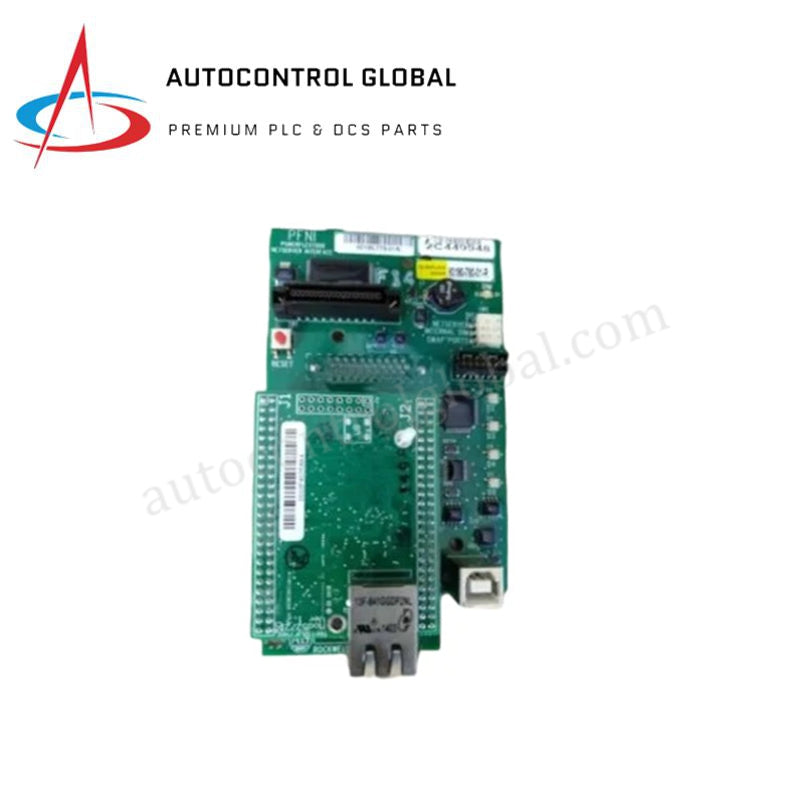

80190-780-01-R | Allen-Bradley | PFNI HMI Interface Assembly

Allen-Bradley 80190-780-01-R PowerFlex 7000 NetServer Interface Board

Product Description

The 80190-780-01-R (80190-780-01-R) is a specialized NetServer Interface Board and HMI Interface Assembly engineered for the Allen-Bradley PowerFlex 7000 Medium Voltage (MV) drive system. This high-level communication board serves as the primary gateway between the drive's internal control logic and external monitoring systems or the operator interface (HMI). By facilitating the "NetServer" functionality, the 80190-780-01-R (80190-780-01-R) allows for complex data exchange and remote diagnostic capabilities.

In medium-voltage industrial environments, maintaining separation between high-voltage power sections and sensitive user-facing interfaces is critical for safety and signal reliability. The 80190-780-01-R (80190-780-01-R) utilizes fiber optic conversion to provide total galvanic isolation. This ensure that control data, diagnostic packets, and HMI commands are transmitted without the risk of electromagnetic interference (EMI) or high-voltage transients damaging the interface hardware. As a "Series R" assembly, it is designed for heavy-duty industrial integration in sectors such as mining, power generation, and oil and gas.

Detailed Technical Specifications

The 80190-780-01-R is designed to the following technical parameters:

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 80190-780-01-R

• Drive Compatibility: PowerFlex 7000 Medium Voltage Drives

• Component Type: NetServer Interface Board / HMI Interface Assembly

• Alternate Part Name: PFNI (PowerFlex Network Interface) Customer Assembly

• Isolation Method: Fiber Optic (Optical-to-Electrical Conversion)

• Communication Function: Host to HMI / Network Server Data Exchange

• Mounting Style: Internal Control Rack / Panel Mounted Assembly

• Protection Technology: Galvanic Isolation for sensitive electronics

• Weight: 12.00 lbs (5.44 kg)

• Status: Discontinued by Manufacturer (Legacy Support available)
