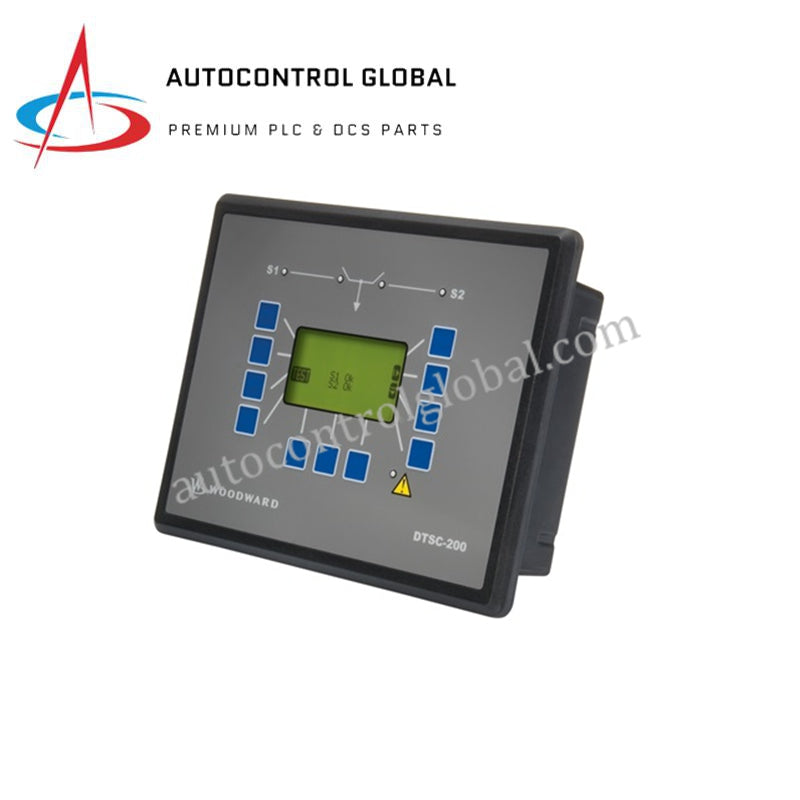

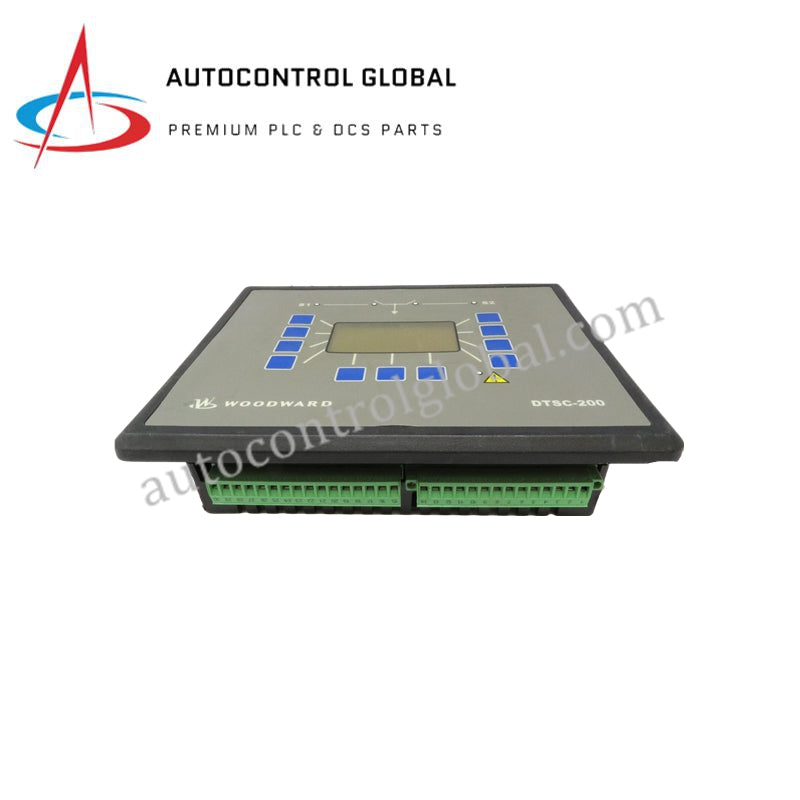

8440-1868 DTSC-200 | Woodward Automatic Power Transfer Controller
Manufacturer: Woodward
-
Part Number: DTSC-200
Condition：New with Original Package
Product Type: Digital Automatic Voltage Regulator
-
Country of Origin: GERMANY
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Woodward DTSC‑200 is a compact automatic transfer switch (ATS) controller engineered for reliable source transfer management between two power sources, including utility ↔ generator or generator ↔ generator configurations.
Designed for industrial plants, commercial facilities, and emergency backup power systems, the DTSC‑200 ensures safe, precise, and synchronized switching with advanced monitoring, programmable logic, and multiple communication interfaces for integration into modern SCADA/DCS environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Woodward Inc., USA |
| Model Number | DTSC‑200 |
| Part Number / Revision | 8440‑1868 REV:K |
| Product Type | Automatic Transfer Switch Controller (ATS) |
| Power Supply | 12/24 VDC (8–35 VDC), max 6 W consumption |
| Display | DynamicsLCD™ 128×64 pixel graphical LCD with soft keys |
| Voltage Measurement | True RMS, 3-phase for Source 1 & Source 2: 120 VAC (max 150 VAC) or 480 VAC (max 600 VAC) |
| Frequency Measurement | 45–65 Hz, over/under frequency monitoring |
| Inputs | Up to 12 configurable digital inputs |
| Outputs | Multiple relay outputs for switch control and alarms |
| Communication | RS‑485 Modbus RTU Slave, CANopen interface |
| Logic Control | LogicsManager™ for custom internal logic sequences |
| Monitoring Functions | ANSI codes: 59/27, 81O/U, 47, 50/51, 25, 32 |
| Operating Temperature | –25 °C to +70 °C |
| Storage Temperature | –25 °C to +70 °C |
| Humidity | Up to 93% non-condensing |
| Protection | IP54 front panel, IP20 rear terminals (IP65 optional) |
