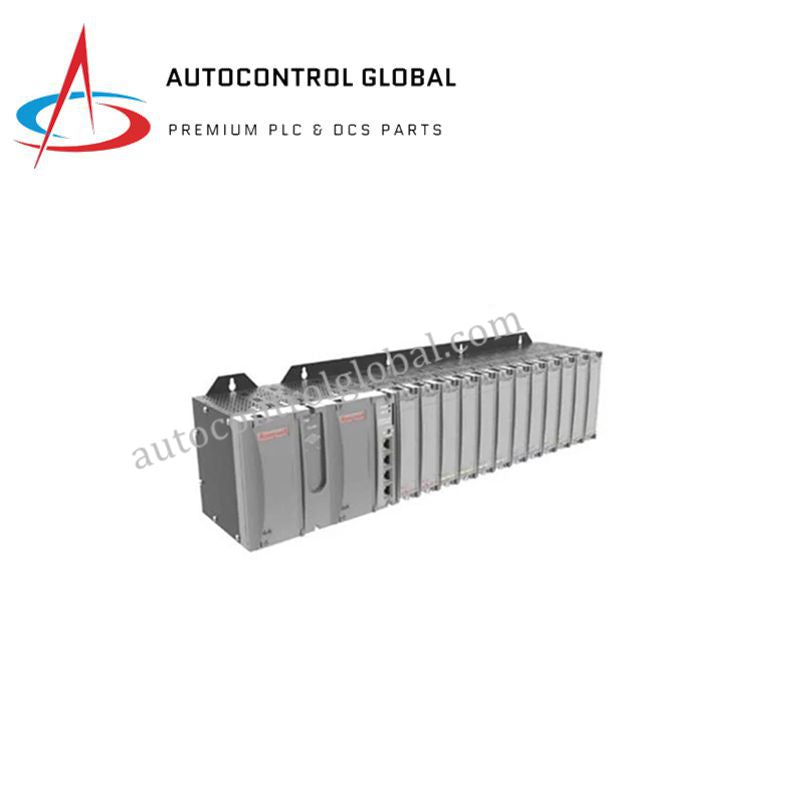

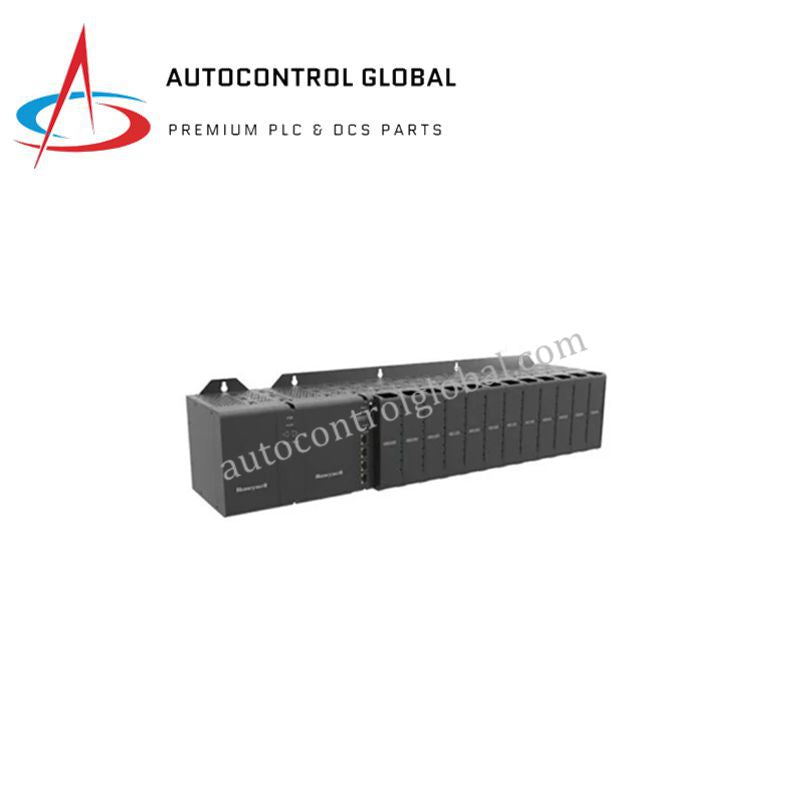

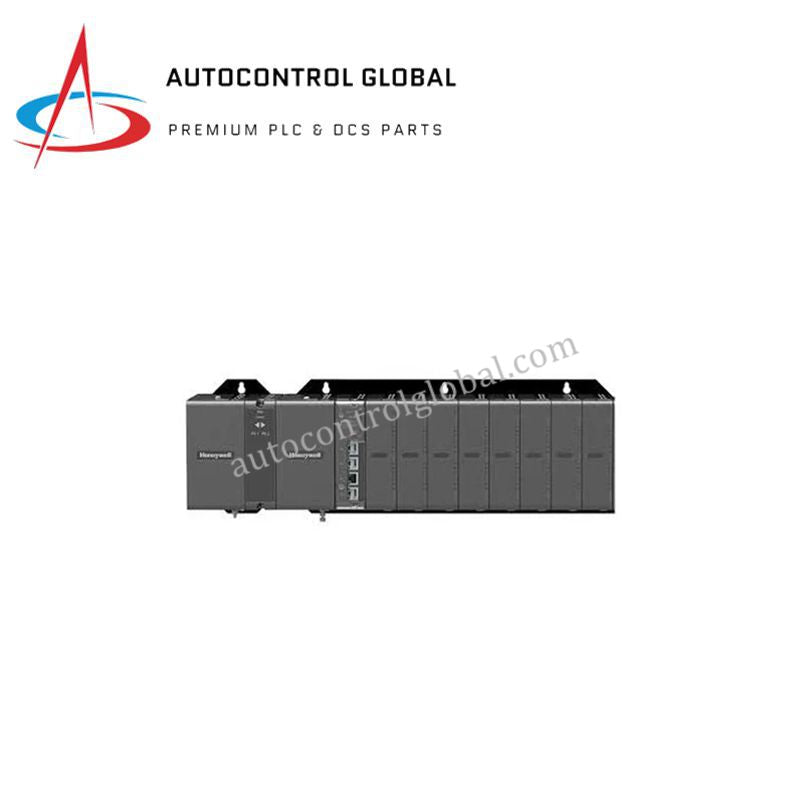

900CP1-0100 | Honeywell CPM with Dual-Core ARM Cortex-A9
Manufacturer: Honeywell
-
Part Number: HONEYWELL 900CP1-0100
Condition：New with Original Package
Product Type: CPM with Dual-Core ARM Cortex-A9
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Honeywell 900CP1-0100 is a high-performance Control Processor Module (CPM) designed for Honeywell ControlEdge PLC and Experion PKS platforms.
It features a dual-core ARM Cortex-A9 (32-bit) processor running at 667 MHz, delivering rapid control logic execution and efficient real-time operations.
Equipped with 4 GB dynamic RAM, the 900CP1-0100 supports complex program execution and extensive data storage for demanding industrial applications.
The module accommodates up to 23,041 combined analog and digital I/O channels in non-redundant configurations and up to 11 expansion racks for redundant setups.
It supports Ethernet (100Base-TX), RS-485, Modbus RTU, and Modbus TCP/IP interfaces, enabling reliable communication across diverse network infrastructures.
With rack-based modular installation, it integrates smoothly with Honeywell’s I/O modules and supports both star and ring topologies using RJ45 connectors.
For extended communication distances, the 900CP1-0100 achieves up to 5,000 meters using fiber switches, ensuring robust connectivity in large-scale facilities.
The CPM operates across a wide temperature range of −40°C to +70°C, making it highly reliable for harsh industrial environments.
Certified with CE, UL, and IEC 61508 standards, it ensures compliance with global safety and performance regulations.
Backed by a 12-month warranty, the 900CP1-0100 combines advanced processing power, flexible integration, and long-term reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 900CP1-0100 |
| Type | Control Processor Module (CPM) |
| Processor | Dual-Core ARM Cortex-A9 (32-bit), 667 MHz |
| Memory | 4 GB Dynamic RAM |
| Maximum I/O Channels | 23,041 combined analog/digital channels |
| Maximum Expansion I/O Racks | Non-redundant: 23,041 channels; Redundant: 11 racks |
| Supported Analog Outputs | Up to 1,152 analog outputs |
| Communication Interfaces | Ethernet (100Base-TX), RS-485, Modbus RTU, Modbus TCP/IP |
| Network Topology | Star or ring topology with RJ45 connectors |
| Communication Distance | Up to 5,000 m with fiber switches |
| Mounting | Rack-based modular installation |
| Operating Temperature | −40°C to +70°C |
| Certifications | CE marked, UL certified, IEC 61508 compliant |
FAQ
Q1: What processor powers the 900CP1-0100 CPM?
A1: It is equipped with a dual-core ARM Cortex-A9 processor running at 667 MHz for fast control logic execution.
Q2: How many I/O channels does the 900CP1-0100 support?
A2: It supports up to 23,041 combined analog and digital channels for non-redundant setups and 11 racks for redundant configurations.
Q3: Which communication interfaces are available?
A3: The 900CP1-0100 supports Ethernet (100Base-TX), RS-485, Modbus RTU, and Modbus TCP/IP for flexible connectivity.
Q4: Can the 900CP1-0100 work in harsh industrial environments?
A4: Yes, it operates reliably within a temperature range of −40°C to +70°C and is CE, UL, and IEC 61508 certified.
Q5: What is the warranty coverage for the 900CP1-0100?
A5: It comes with a 12-month standard warranty, ensuring dependable performance and quality assurance.
