9200-03-06-10-00 | Bently Nevada Seismic Vibration Sensor for Fans
Manufacturer: Bently Nevada
-
Part Number: 9200-03-06-10-00
Condition：New with Original Package
Product Type: Seismic Vibration Sensor for Fans
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview

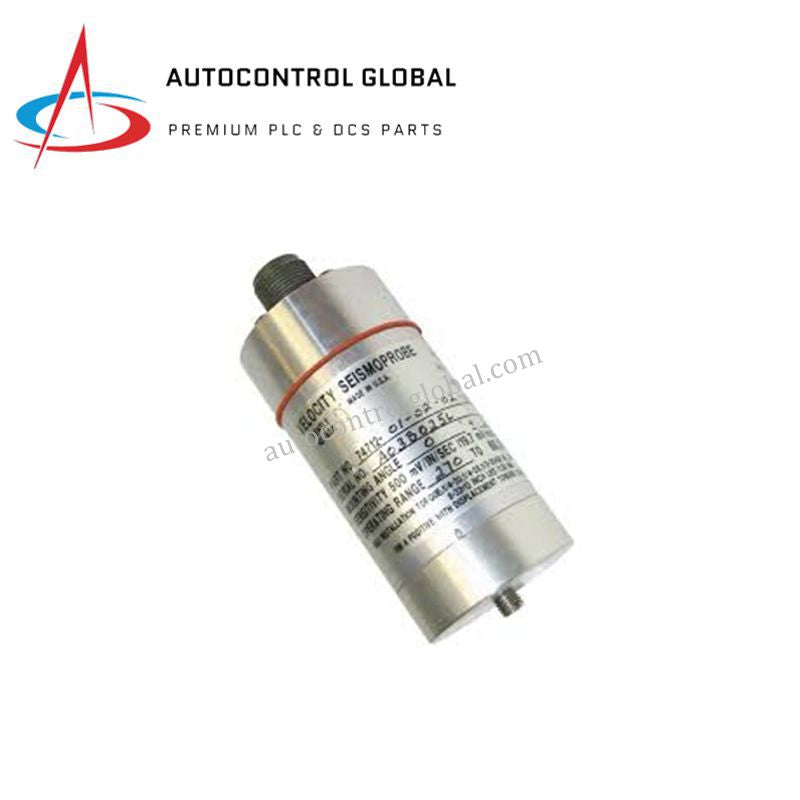

The Bently Nevada 9200-03-06-10-00 seismic velocity transducer delivers accurate casing vibration measurements for motors, pumps, compressors, and fans. It converts mechanical vibration into a voltage signal proportional to velocity, ensuring real-time performance monitoring.
This model includes a 6-foot cable, a top-exit MIL-style connector, and a durable ¼-28 UNF mounting stud for versatile installations. With stainless steel housing and high shock resistance up to 5,000 g, the 9200-03-06-10-00 withstands harsh industrial conditions and ensures dependable long-term operation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 9200-03-06-10-00 |
| Function | Seismic velocity transducer |
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) |
| Frequency Range | 5 Hz to 2,000 Hz (±3 dB) |
| Output Signal | Voltage proportional to vibration velocity |
| Mounting Thread | ¼-28 UNF male stud |
| Connector Type | Top-exit MIL-style connector |
| Cable Length | 6 feet (approx. 1.8 meters) |
| Temperature Range | –40 °C to +100 °C |
| Shock Limit | 5,000 g |
| Housing Material | Stainless steel |
| Environmental Rating | Suitable for harsh industrial and hazardous environments |
| Dimensions | 16 cm × 16 cm × 12 cm |
| Weight | 0.8 kg |
| Applications | Casing vibration monitoring for motors, pumps, compressors, fans |
FAQ
Q1: What is the sensitivity of the 9200-03-06-10-00?
A1: It delivers a sensitivity of 3.94 mV/mm/s, equivalent to 100 mV/in/s.
Q2: What is the supported frequency range for vibration detection?
A2: It measures vibration accurately between 5 Hz and 2,000 Hz with ±3 dB response.
Q3: How is the transducer mounted on machinery?
A3: The 9200-03-06-10-00 uses a standard ¼-28 UNF male stud for secure installation.
Q4: Is this sensor suitable for extreme industrial conditions?
A4: Yes, it features stainless steel housing and withstands shocks up to 5,000 g.
Q5: What is the cable configuration included with this model?
A5: The unit comes with a 6-foot (approx. 1.8-meter) cable and a top-exit MIL-style connector.
