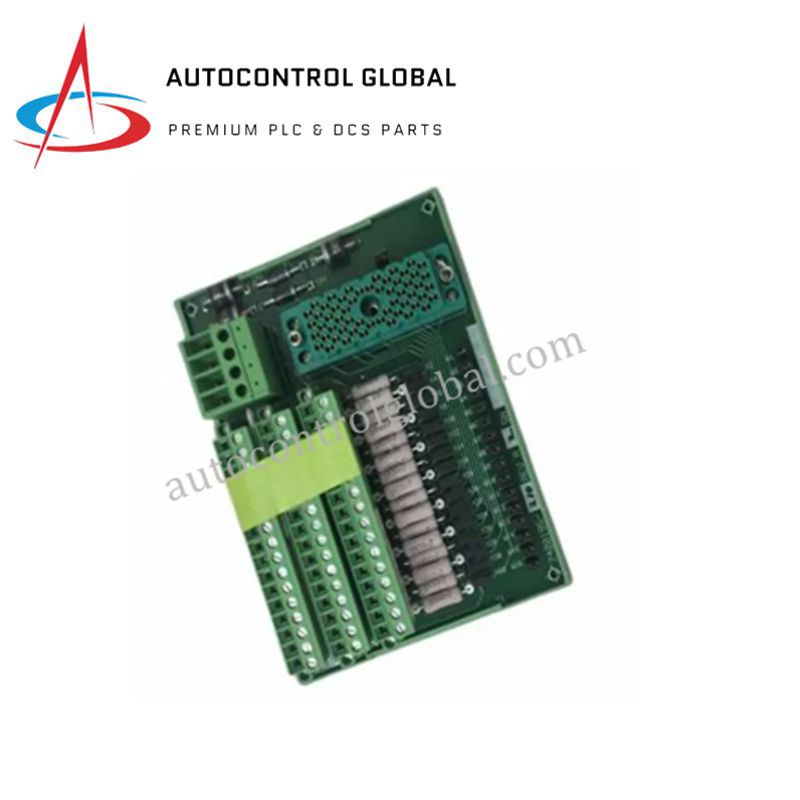

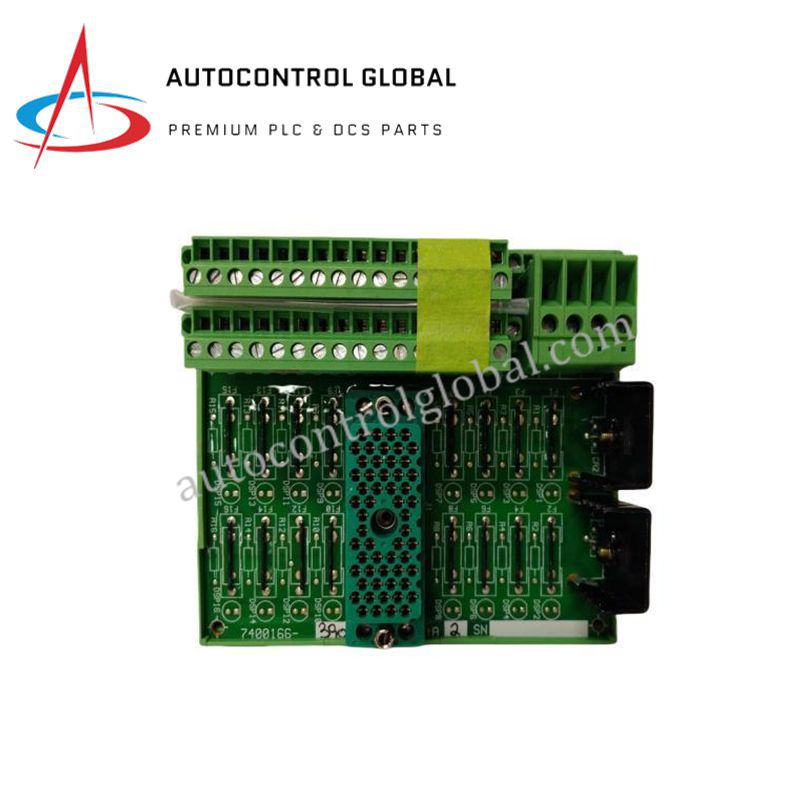

9662-110 | Triconex High-Density Digital I/O Module for SIS

Product Description

Overview

The Triconex 9662‑110 is a high-reliability digital I/O and field termination module designed to connect field devices such as switches, sensors, solenoids, and relays to Triconex controllers.
It ensures secure wiring termination, robust isolation, and reliable signal transmission in safety-critical environments.
Moreover, it supports Triple Modular Redundancy (TMR) architecture, guaranteeing continuous operation and SIL 2/3 compliance even under fault conditions.
This module is widely used across Emergency Shutdown (ESD), Fire & Gas (F&G), Burner Management Systems (BMS), and High-Integrity Pressure Protection Systems (HIPPS).

Technical Specifications

• Product Type: Digital I/O / Field Termination Module

• Model Number: Triconex 9662‑110

• Manufacturer: Schneider Electric (Triconex brand)

• System Compatibility: Triconex SIS (Tricon/Trident platforms)

• Architecture: Triple Modular Redundancy (TMR)

• Number of Channels: 32 digital input/output channels

• Input/Output Voltage Range: 24 VDC typical

• Current Capacity: Up to 2 A per channel

• Power Consumption: 10 W

• Isolation: 2500 Vrms channel-to-channel and channel-to-system

• Noise Immunity: –90 dB @ 0–60 Hz, –100 dB @ DC, –3 dB @ 8 Hz

• Protection Level: IP67

• Diagnostics: Built-in self-diagnostics, fault detection, redundancy monitoring

• Safety Integrity Level: IEC 61508 SIL 2/3 compliant

• Certifications: UL, CE, ATEX, IECEx

• Operating Temperature: –40 °C to +70 °C

• Storage Temperature: –40 °C to +85 °C

• Humidity Range: 5–95% RH (non-condensing)

• Dimensions (H × W × D): 43 × 27 × 32 cm

• Weight: 2.7 kg

FAQ

Q1: How many channels does the Triconex 9662‑110 support?
It provides 32 digital input/output channels for field device integration.

Q2: What is the isolation level for this module?
It offers 2500 Vrms channel-to-channel and channel-to-system isolation for maximum safety.

Q3: Is the module suitable for harsh environments?
Yes, it has an IP67 rating and operates between –40 °C and +70 °C.

Q4: Does it support safety standards?
Yes, it is SIL 2/3 compliant according to IEC 61508 standards.

Q5: Which field devices can be connected?
It connects switches, sensors, solenoids, relays, and other discrete field devices.
