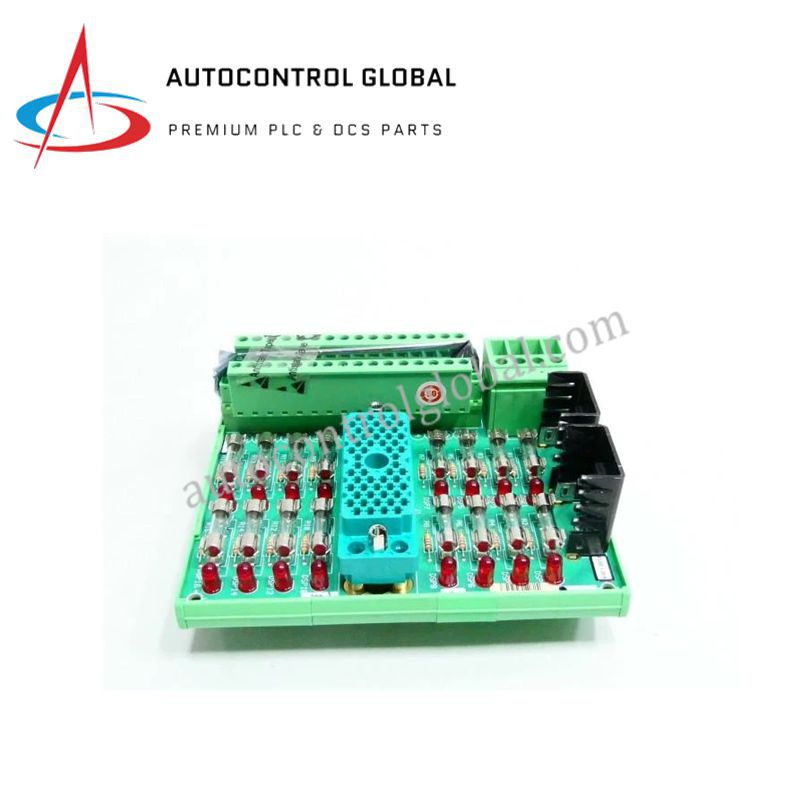

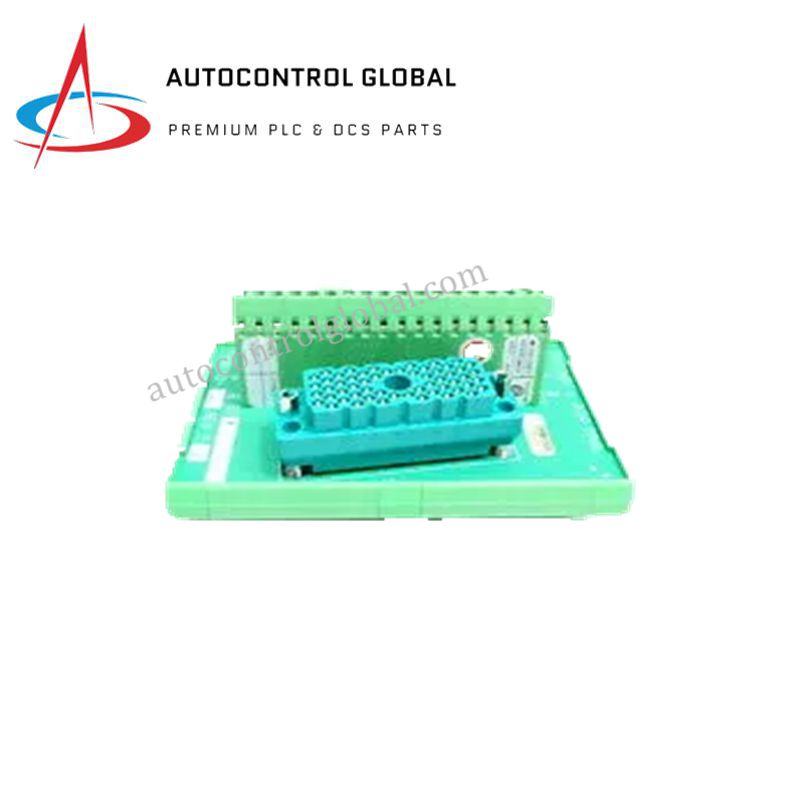

9662-610 | Triconex Digital I/O Module for Safety Systems

Product Description

Overview

The Triconex 9662‑610 (Part No. 3000520‑390) is a high-performance digital output module engineered for driving field devices such as solenoids, relays, lamps, and actuators.
It ensures high-integrity signal switching and actuation within safety-critical industrial environments.
Moreover, the module incorporates Triple Modular Redundancy (TMR) architecture, providing fault-tolerant operation and SIL 3 compliance for mission-critical applications.
The 610 revision and part number 3000520‑390 deliver optimized hardware and firmware for enhanced diagnostics, reliability, and seamless integration with modern Triconex controllers.

Technical Specifications

• Product Type: Digital Output Module / Terminal Board

• Model Number: 9662‑610

• Part Number: 3000520‑390

• Manufacturer: Schneider Electric (Triconex brand)

• System Compatibility: Triconex SIS (Tricon/Trident platforms)

• Architecture: Triple Modular Redundancy (TMR)

• Number of Channels: 32 isolated digital output channels

• Output Signal Types: 24 VDC logic outputs, relay drive

• Output Voltage Range: 18–32 VDC typical

• Output Current Capacity: Up to 0.5 A per channel (depending on load type)

• Isolation: Channel-to-channel and channel-to-system isolation

• Diagnostics: Built-in self-diagnostics, fault detection, redundancy monitoring

• Safety Integrity Level: SIL 3 compliant

• Certifications: UL, CE, ATEX, IECEx

• Operating Temperature: –20 °C to +60 °C

• Storage Temperature: –40 °C to +85 °C

• Humidity Range: 5–95% RH (non-condensing)

• Dimensions (H × W × D): 187 × 114 × 25 mm

• Weight: 1.6 kg

FAQ

Q1: How many channels does the Triconex 9662‑610 support?
It provides 32 isolated digital output channels for driving discrete field devices.

Q2: What output signals are supported?
The module supports 24 VDC logic outputs and relay drive for versatile actuation.

Q3: Is this module SIL certified?
Yes, it is SIL 3 compliant, meeting IEC 61508 standards for safety-critical operations.

Q4: What improvements does the 3000520‑390 part number provide?
It ensures enhanced compatibility with newer Triconex chassis and provides improved diagnostic features.

Q5: Can it operate reliably in harsh industrial environments?
Yes, it operates between –20 °C to +60 °C with robust isolation and fault-tolerant design.
