A5E00297617 Siemens IGD3-BGR Powerblock Driver Module

Siemens A5E00297617 IGD3-BGR Driver Module

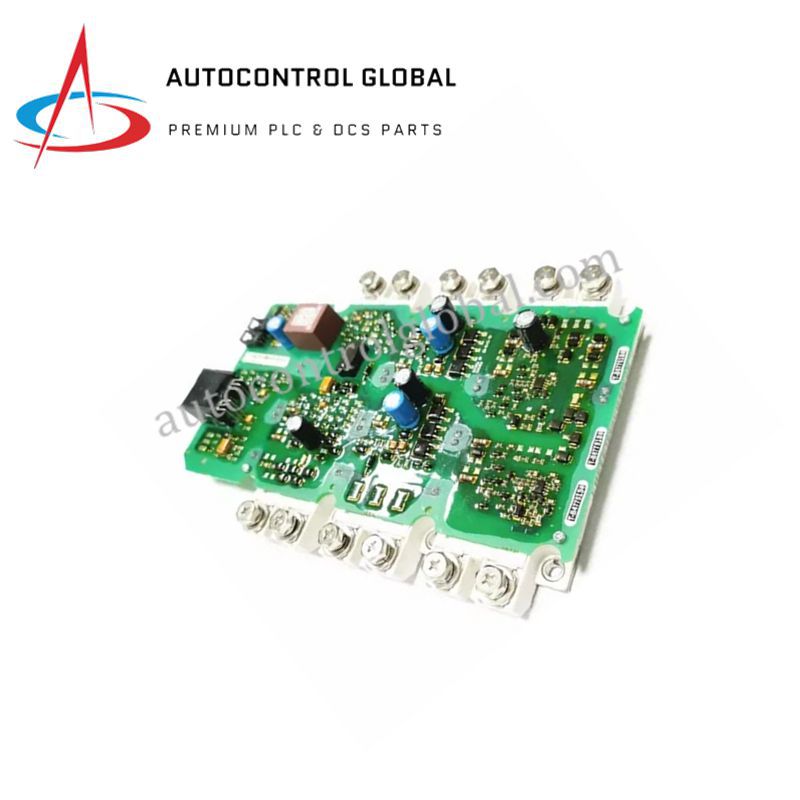

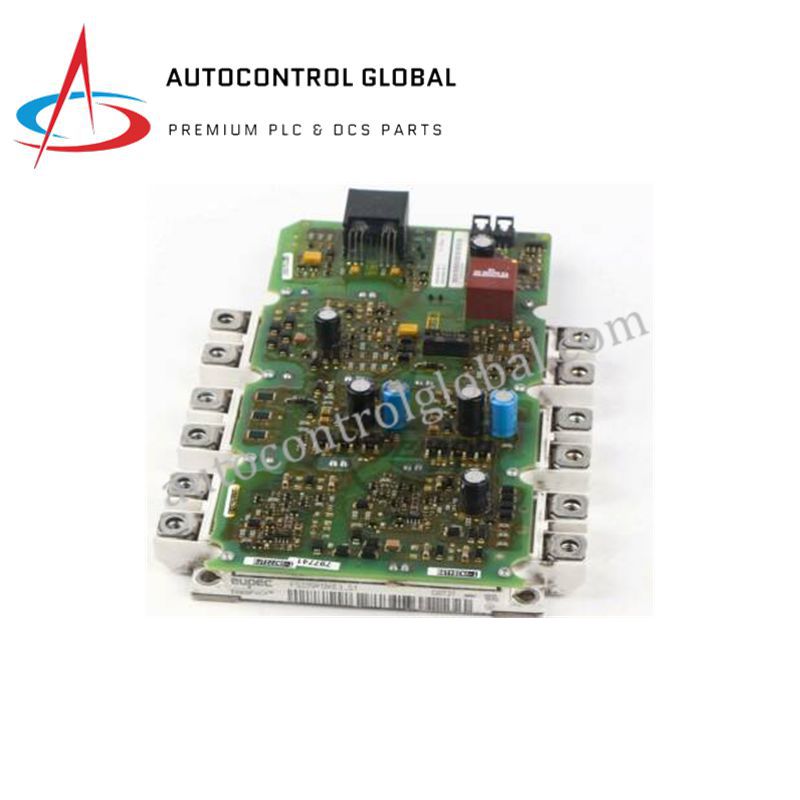

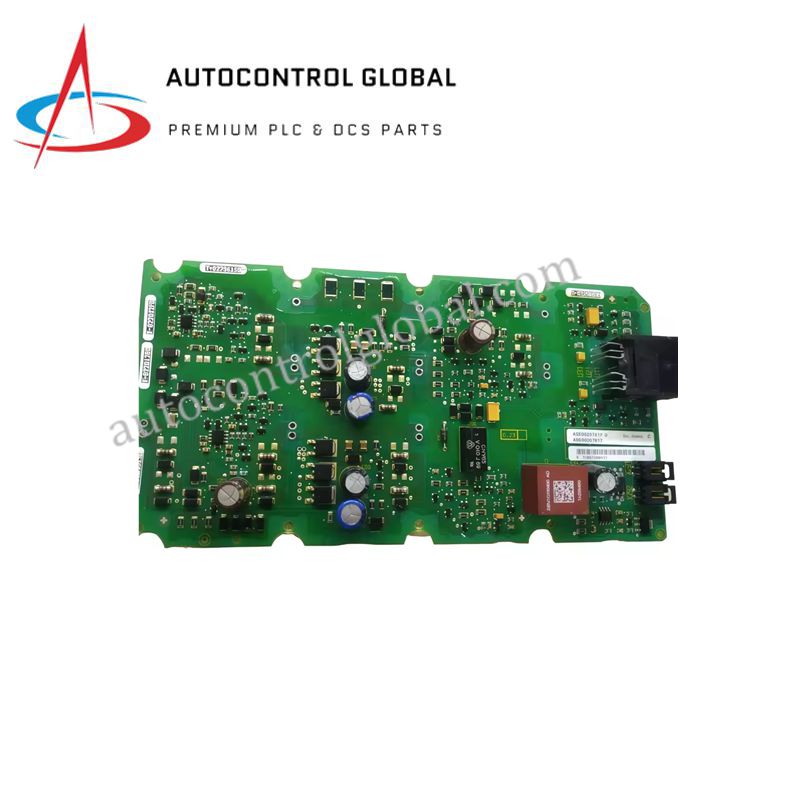

The Siemens A5E00297617, also cataloged as the A5E00297617 Powerblock Driver Board, operates as a dedicated hardware component for power stage gate driving and signal isolation within IGD3-BGR power block assemblies. This board converts low-voltage digital PWM control signals into high-current triggering pulses required to drive heavy-duty power semiconductors in SINAMICS and SIMATIC inverter architectures. By maintaining galvanically isolated signal paths between control electronics and high-voltage power stages, the unit prevents electrical noise transmission while enforcing rapid switching transitions across demanding motor drive cycles.

Hardware Specifications

Siemens Drive & Control System Characteristics

The A5E00297617 power block module maintains high-speed signal execution across internal bus architectures to prevent control timing drift during high-frequency pulse-width modulation cycles. To ensure robust operation in complex automation networks, the board provides:

• Deterministic signal transmission over high-speed backplane connections, maintaining low propagation delay between the central CPU and power semiconductors.
• Complete firmware flash compatibility across all supported Siemens main control processor revisions without requiring local board programming.
• High backplane bus communication velocity across internal drive networks to support real-time current loop regulation.

Frequently Asked Questions

Q: What differentiates the A5E00297617 driver board from a standard drive control module?

A: The A5E00297617 functions strictly as a hardware-level gate driver designed to trigger high-power semiconductors directly, whereas control modules process high-level motion algorithms and user programming.

Q: Is the A5E00297617 compatible with Siemens IGD2 series power blocks?

A: No. The circuit layout, switching timing, and transformer scaling are specifically tuned for IGD3-BGR hardware. Installing this board in IGD2 systems will cause timing mismatches or hardware damage.

Q: Is independent firmware flashing required when replacing an A5E00297617 module?

A: No firmware flashing is required. The unit operates purely at the hardware execution layer and responds immediately to direct gating commands issued by the drive main control processor.

Field Installation Guidelines

Perform all installation work only after fully isolating the drive system from main incoming power sources. Wait at least 10 minutes following power supply disconnection to ensure intermediate DC-link capacitors discharge fully to safe voltage levels.

1. Inspect the enclosure to verify IP20 cabinet mounting conditions and confirm ambient temperatures will remain between -25 and +60 deg C.
2. Align the A5E00297617 module with the guide channels of the IGD3-BGR power block chassis and push smoothly until the backplane connectors seat completely.
3. Fasten all retaining screws to standard torque specifications to establish low-impedance chassis grounding for high-frequency noise mitigation.
4. Attach the high-speed PWM copper or fiber input cables, ensuring locking clips engage securely to prevent vibration-induced disconnects.
5. Recheck all gate terminal leads and power connections before restoring the 24 VDC control supply and high-voltage line feeds.
