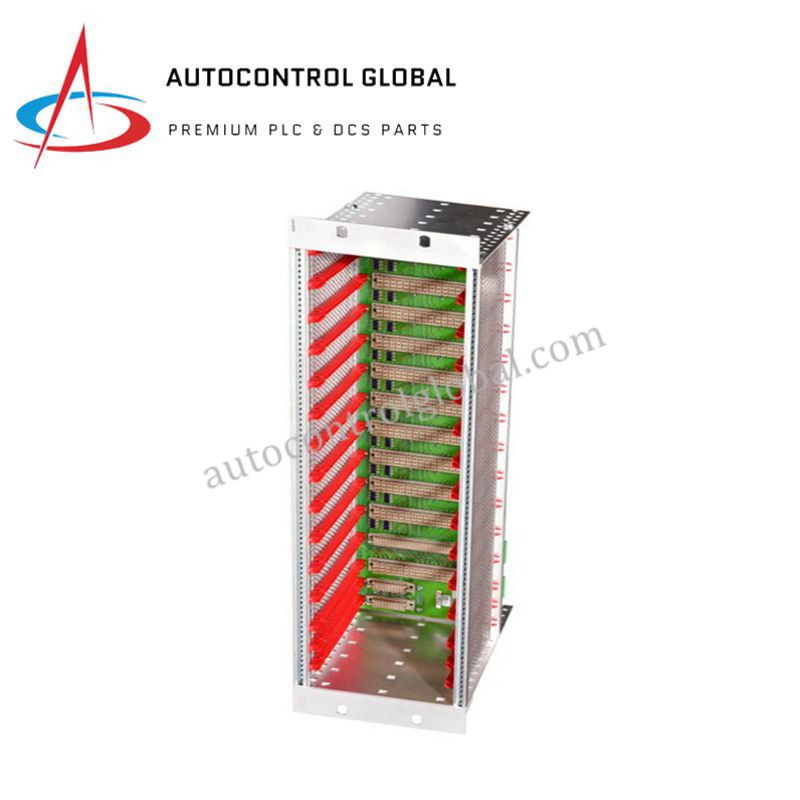

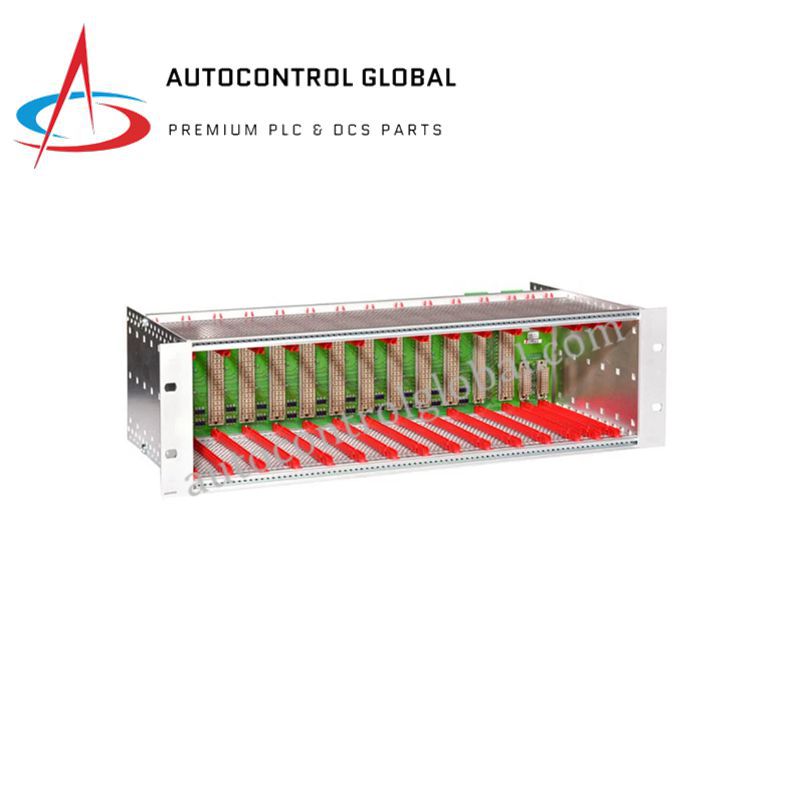

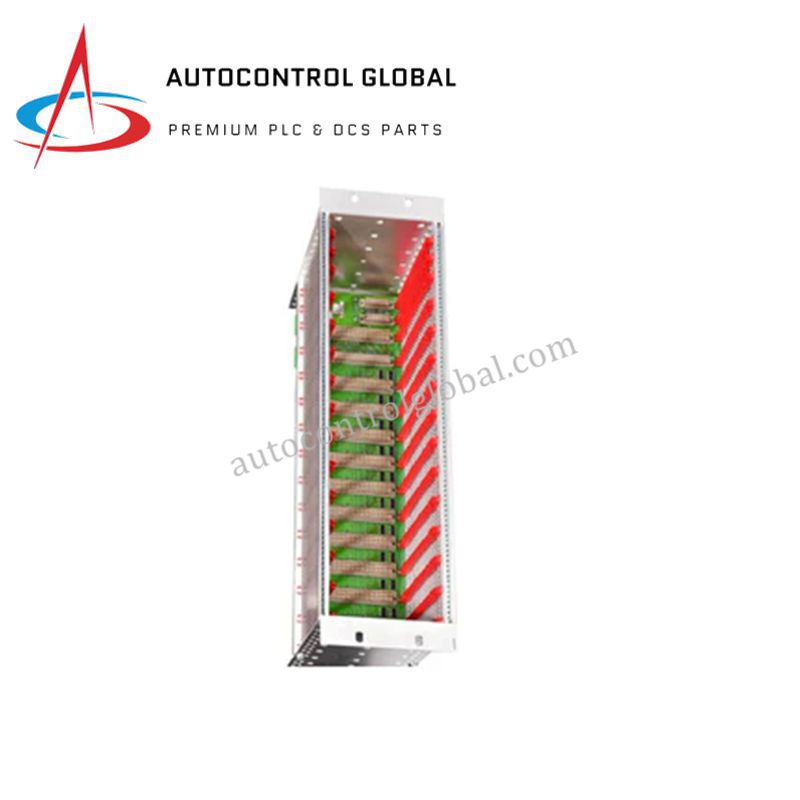

Emerson A6500-FR Front Termination Rack

Product Summary

The Emerson A6500-FR front termination rack provides a robust and organized platform for AMS 6500 ATG machinery protection systems. Moreover, it arranges protection cards, relay cards, and communication modules in a compact 6-RU chassis that simplifies wiring and system expansion. This rack supports multiple sensor technologies and delivers the structured connectivity needed for high-performance vibration and condition monitoring.

Technical Specifications

General

• Manufacturer: Emerson (EPRO / AMS Machinery Health)

• Model: A6500-FR

• Product Type: Front Termination Rack

• System: AMS 6500 ATG Machinery Protection

Rack Size

• Height: 6 RU

• Width: 50 HP (12.25″)

Capacity

• Up to 6 protection cards total

• A6500-UM Universal Measuring Card (2 channels each)

• A6500-TP Temperature / Process Card (4 channels each)

• 1 Relay Card (A6500-RC)

• 1 Communication Card (A6500-CC)

Connections

• Screw terminal connectors for I/O signals

• D-Sub connectors for raw sensor inputs

• Slide switches for binary input and signal configuration

Sensor Compatibility

• Eddy-current probes

• Piezoelectric vibration sensors

• Seismic sensors

• RTDs for temperature measurement

Outputs

• Binary I/O

• 0/4–20 mA current outputs

• Pulse outputs

Compliance

• Meets API 670 machinery protection standards

Physical & Logistics

• Weight: 5000 g

• Origin: USA

• Condition: In stock

FAQ

Q: Which AMS system uses the A6500-FR rack?
A: It is designed for the Emerson AMS 6500 ATG Machinery Protection System.

Q: How many protection cards can the rack hold?
A: It supports up to six measurement cards plus one relay card and one communication card.

Q: Does the rack support vibration and temperature sensors?
A: Yes, it accepts eddy-current, piezoelectric, seismic sensors, and RTDs.

Q: Why is front termination beneficial?
A: It simplifies wiring because no rear access is required during installation.

Q: Is the rack suitable for API 670 applications?
A: Yes, it meets API 670 and other global machinery protection standards.
