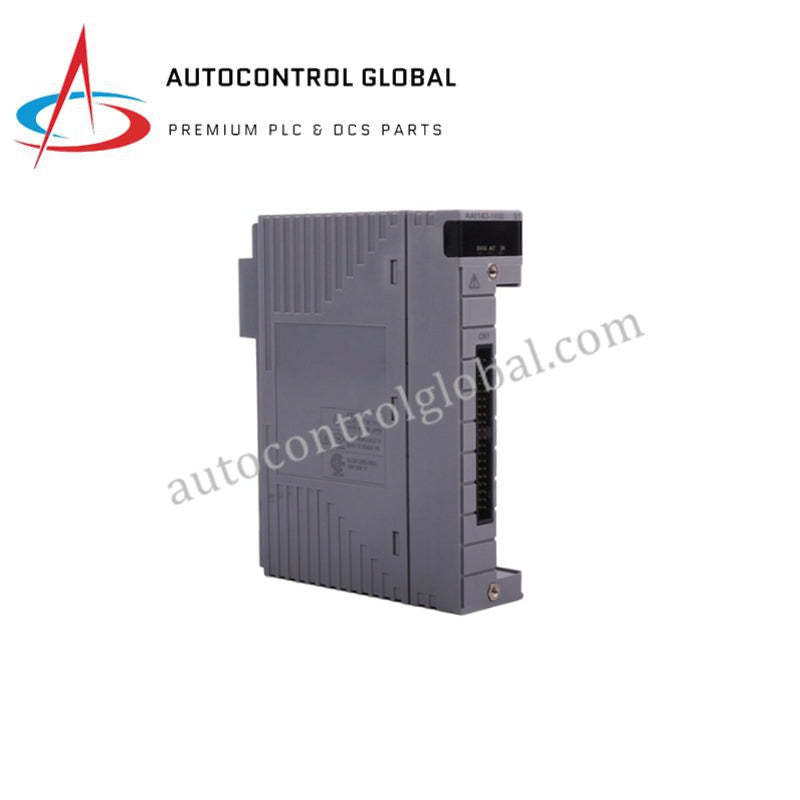

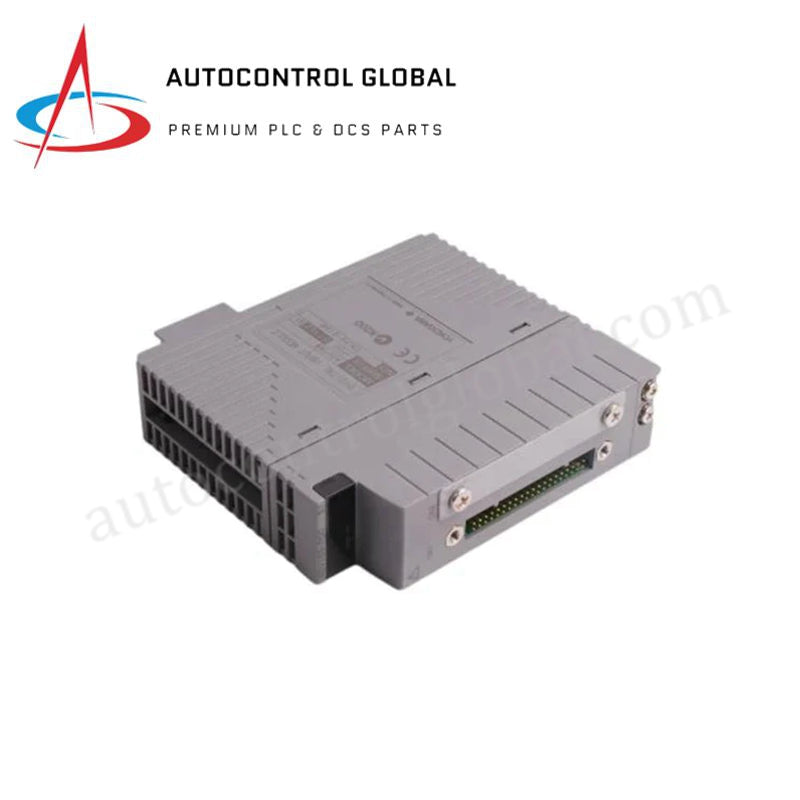

Yokogawa AAI143-H00/A4S00 Analog Input Module

The Yokogawa AAI143-H00/A4S00 serves as the primary AAI143 Analog Input Module utilized to execute multi-channel current signal acquisition across CENTUM VP, ProSafe-RS, and FIO architecture platforms. Operating as a 16-channel isolated instrument interface, the hardware loop-powers and samples data from 2-wire or 4-wire transmitters, executing high-speed analog-to-digital data updates every 10 ms over the internal backplane bus.

Suffix Breakdown & Model Matrix

• AAI143: Base model designation for Analog Input Module (4 to 20 mA, 16-channel, Isolated).
• -H: Integrated digital communication layer supporting the HART loop protocol.
• 0: Hardwired manufacturer structural configuration placeholder.
• 0: Basic hardware variant classification without extended environmental modifiers.
• /A4S00: Suffix option denoting the inclusion of the standard detachable Pressure Clamp Terminal Block (Model: ATA4S-00).

Hardware Specifications

Process Control & DCS Instrumentation Properties

This module incorporates dedicated digital communication channels executing the 4-20 mA HART loop protocol, enabling the transparent pass-through of secondary device variables and instrument health configurations to the control network layer. The structural design features robust channel-to-system electrical isolation rated at 1500 V AC to completely eliminate common-mode noise propagation and ground currents. Hardware flexibility allows each channel to adapt to either 2-wire or 4-wire configuration profiles via manual hardware pins, while an internal current limiter restricts output supply loops to a maximum ceiling of 25 mA under fault conditions.

Frequently Asked Questions

Q: How does the power OFF state input resistance affect live instrumentation loops?

A: When power to the FIO base unit is lost, the module input resistance scales immediately to 500 kOhm or larger. This open-circuit emulation prevents a dead module from drawing current or causing electrical disturbances on externally powered loop networks.

Q: What are the integrated diagnostic capabilities regarding open-circuit boundaries?

A: The physical module tracks real-time current levels across all 16 paths. If loop execution dips below the minimal baseline resistance threshold, an internal register generates a fault flag transmitted via the 10 ms data update cycle to signal open circuit or line decay.

Q: How is the transmitter source selection performed on individual hardware paths?

A: Individual selection for a 2-wire or 4-wire transmitter setup is implemented mechanically on a per-channel basis. The installation engineer must set the dedicated allocation pins situated on the module assembly prior to insertion.

Field Installation Guidelines

• Module Mechanical Seating: Guide the module housing along the alignment slots of the FIO base unit. Push firmly until the top and bottom extraction tabs engage with a mechanical lock to secure the backplane interface contacts.
• Terminal Block Attachment: Align the ATA4S-00 pressure clamp terminal assembly onto the front plate layout. Hand-tighten the integrated retaining screws to ensure proper tension against vibration stresses.
• Shield Grounding Protocols: Deploy twisted, shielded pairs for all 4-20 mA current loops. Terminate loop shielding at the designated single-point ground bus within the marshalling cabinet, leaving the field enclosure end ungrounded to isolate potential ground currents.
• Wiring Separation Constraints: Separate low-voltage analog inputs from high-voltage AC power distribution cables by maintaining a minimum physical clearance barrier of 50 mm inside the local containment ducting.
